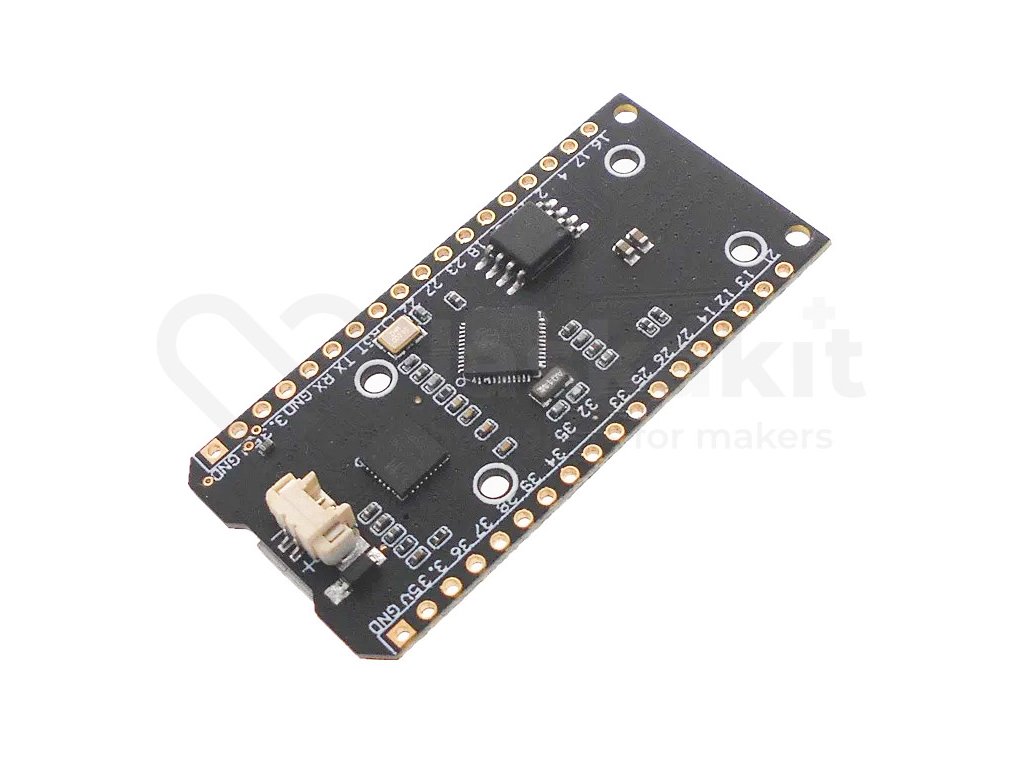

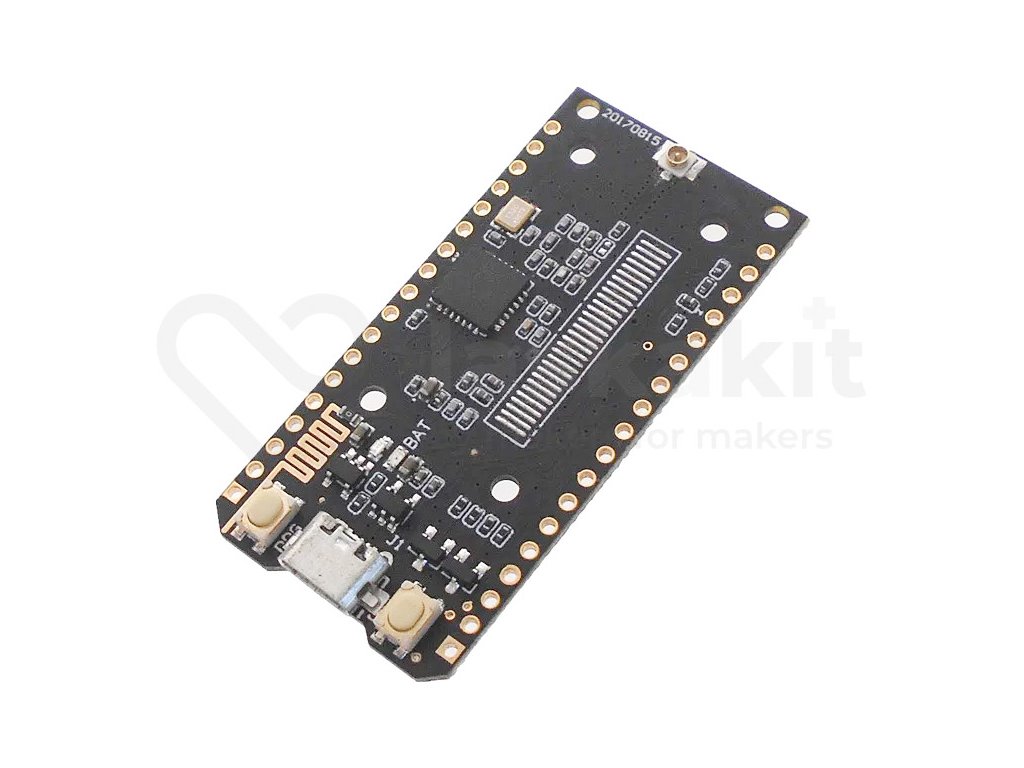

LilyGO TTGO LoRa32 SX1278 433Mhz WiFi Module

Code: LA100119A
€22,62 €18,69 excl. VAT
Skladem (1 pcs)
Delivery to:
16/12/2024

LilyGO TTGO LoRa32 SX1278 433Mhz WiFi Module

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

LoRa IoT platform with integrated Bluetooth and WIFI module ESP32.

Specifications:

  • USB-TTL: CH9102F or CP2102
  • Working voltage: 3.3 - 7v
  • Acceptable current: 10~14mA
  • Transmit current:
    • 120mA@+20dBm
    • 90mA@+17dBm
    • 29mA@+13dBm
  • Operating frequency: 433MHz
  • Transmit power: +20dBm
  • Receive sensitivity:
    • -139dBm@LoRa &62.5Khz&SF=12&146bps
    • -136dBm@LoRa &125Khz&SF=12&293bps
    • -118dBm@LoRa &125Khz&SF=6&9380bps
    • -123dBm@FSK&5Khz&1.2Kbps
  • Frequency error: +/-15KHz
  • FIFO space:64Byte
  • Data rate:
    • 2K~300Kbps@FSK
    • 018K~37.5Kbps@LoRa
  • Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK
  • Interface form:SPI
  • Sleep current:
    • 2uA@SLEEP
    • 5uA@IDLE
  • Operating temperature: -40℃- +85℃
  • Digital RSSI function
  • Automatic frequency correction
  • Automatic gain control
  • Fast wake-up and frequency hopping
  • Highly configurable data packet handler
  • SMA Antenna
  • TP4054

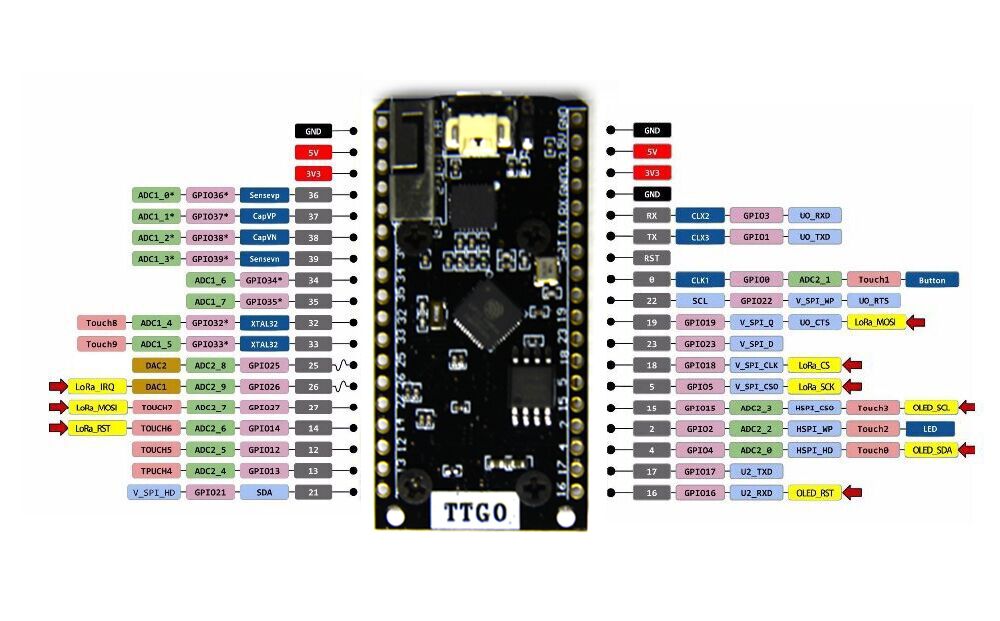

lilygo-ttgo-lora32-mhz-wifi-modul

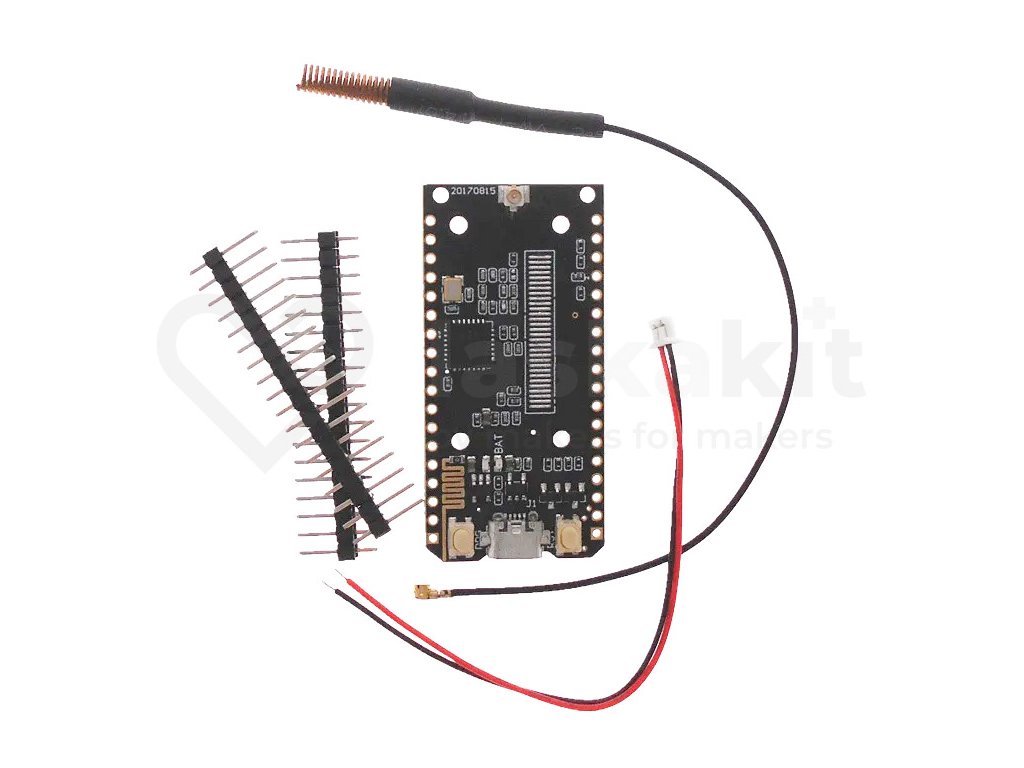

Delivery components:

  • 1pc LilyGO TTGO LoRa32 SX1278 433Mhz WiFi Module
  • 1pc Cable with battery connector
  • 1pc Antenna
  • 2 pcs Pin rail

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: ESP Development Boards
Warranty: 2 years
Weight: 0.021 kg
Type: ESP
Logical levels: 3.3V
I/O pins: 12
PWM pins: 12
ADC pins: 7
Frequency: 40MHz
Flash memory: 4MB
SRAM memory: 520kB
EEPROM memory: Ne
Connector with battery charger: Yes
Microcontroller: ESP32
Converter: CH9102
Bluetooth: Yes
WiFi: Yes

Be the first who will post an article to this item!

Do not fill out this field:
Do not fill out this field:
M Avatar of author Nastavení v Arduino studiu 24/09/2023 21:00
Jaké je prosím nastavení této desky v Arduino studiu?
Reply
MF Avatar of author Nastavení v Arduino studiu 25/09/2023 14:48
Dobrý den, na desce je ESP32, použil bych tedy ESP32 Dev Module.
PB Avatar of author Kabel k baterii 25/07/2023 13:53
Je k dispozici kabel k baterii? K desce je přibalený pouze jeden, ale potřeboval bych jich více.
Reply
LV Avatar of author Kabel 16/11/2023 07:10
V baleni je pouze jeden kabel vice ti jich nedame ty zebraku
MF Avatar of author Kabel k baterii 26/07/2023 06:25
Dobrý den, bohužel kabely ani konektory samostatně prozatím v nabídce nemáme.
PB Avatar of author Re: Kabel k baterii 25/07/2023 20:57
Dokumentace říká: JST GH 2pin 1.25mm
