LilyGO T-Watch ESP32 1.54 IPS watch + sensor set

Code: DD100097
€58,68 €48,50 excl. VAT
Vyřazeno

LilyGO T-Watch ESP32 1.54 IPS watch + sensor set - development kit

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

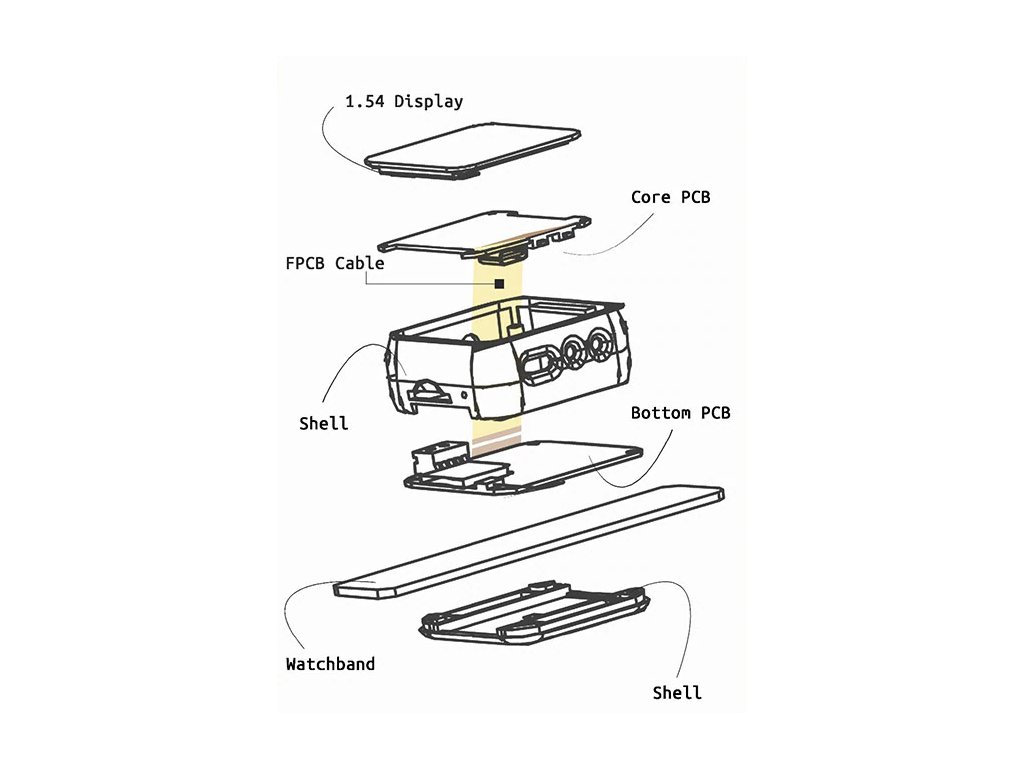

Development kit for wearable electronics in the shape and size of a watch. The kit is based on the ESP32 microcontroller clocked at 240MHz, which includes WiFi and Bluetooth. Also included on the kit board is a BMA423 3-axis accelerometer, a PCF8563 real-time clock and an I/O connector for connecting external devices/sensors. Power is provided by an integrated 3.7V Li-ION battery that is charged via a USB-C connector. The kit also includes two buttons, one of which is for on/off and the other is programmable. The kit does not include a touch layer on the display.

FreeRTOS is used as the operating system. Programming is done via the USB-C connector.

There are 6 sensors included with the watch:

  1. Button
  2. PIR sensor
  3. Door contact
  4. Microphone
  5. DHT12 sensor
  6. 4x intelligent RGB LED WS2812

Specifications:

Chipset ESP32, dual-core MCU, PMU power management
FLASH QSPI flash 16MB / PSRAM 8MB
SRAM 520K SRAM

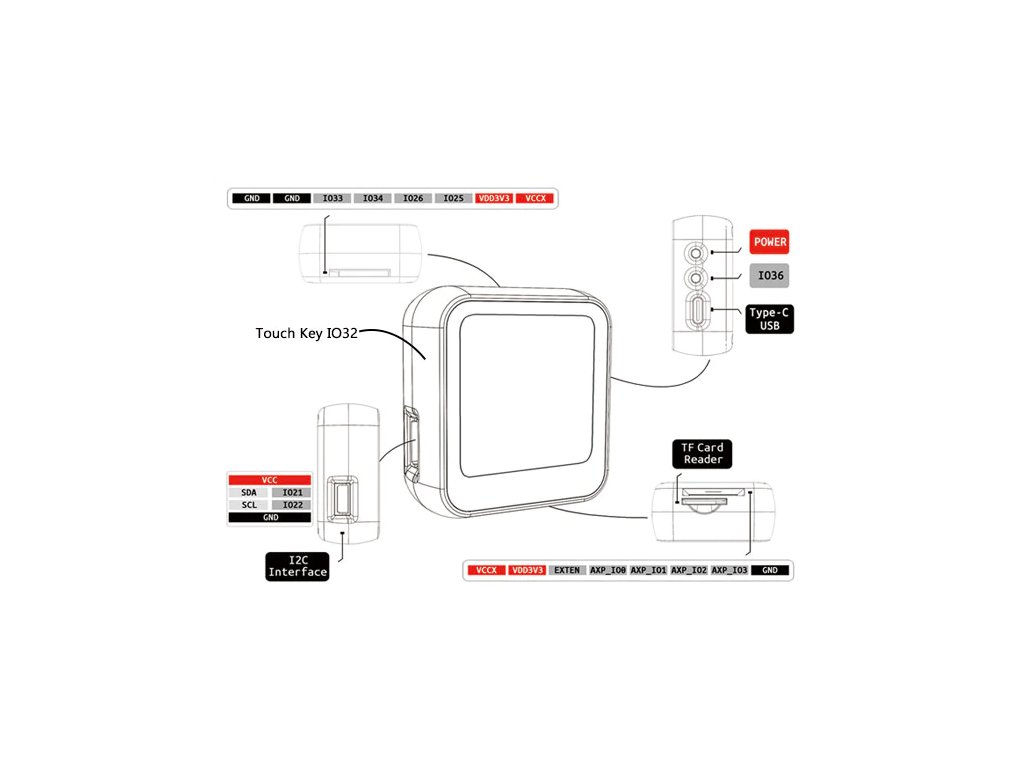

Buttons 1x Power, 1x programmable (pin IO36)

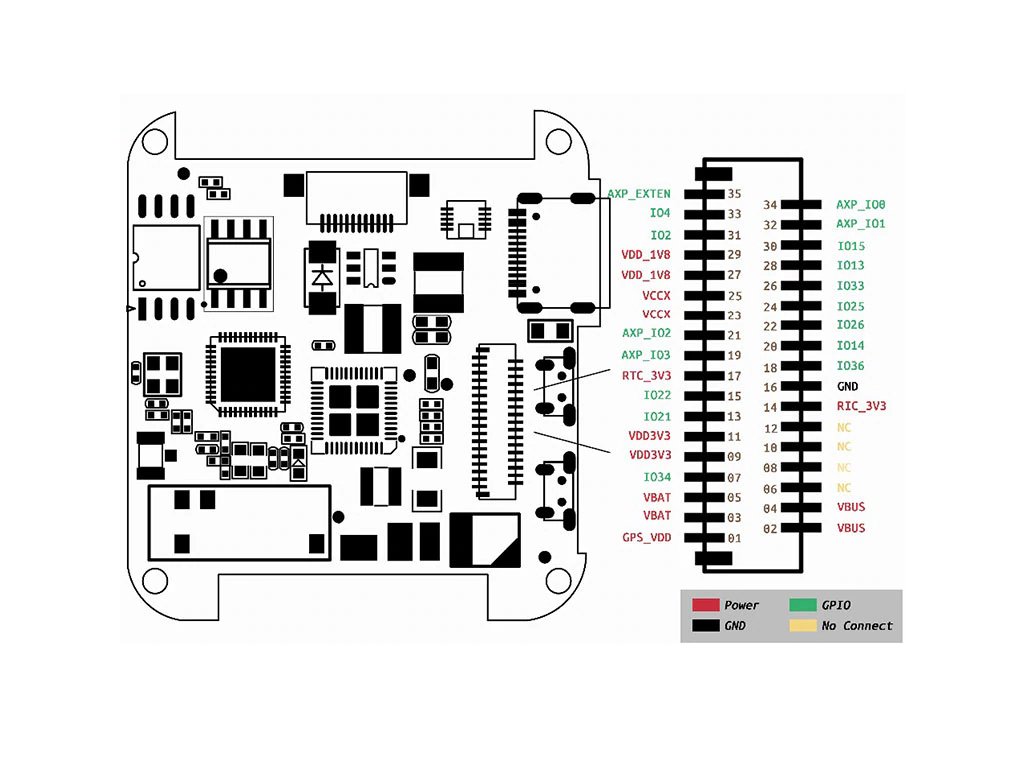

Advanced features I/O connector for connecting external devices
USB to TTL CP2104
I/O interface UART, SPI, SDIO, I2C, LED PWM, PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA
Oscillator 40MHz
Supply voltage 2.7V-3.6V
Power consumption about 70mA
Power consumption in sleep mode approx. 3mA
Operating temperature range - 40 ~ + 85
Dimensions and weight 46.47x43x20.4mm
43.19g
Display 1.54 inch LCD capacitive touch screen
Integrated sensors BMA423 3-axis accelerometer, pedometer function, activity recognition/tracking, advanced gesture recognition
Real time clock PCF8563
Power USB 5V/1A
Charging current 500mA (programmable)
Batteries 3.7V Li-ON
Wi-Fi
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocols 802.11 b/g/n (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Output power 22dBm
Communication range 300m
Bluetooth
Protocols Meet bluetooth v4.2BR/EDR and BLE standard
Frequency with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency
Software Specifications
Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
WiFi security WPA/WPA2/WPA2-Enterprise/WPS
Encryption support AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA (Through network/host to download and write firmware)
Software development Support cloud server development /SDK for user firmware development
Network protocols IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User configuration AT + Instruction set, cloud server, android/iOS app
OS FreeRTOS

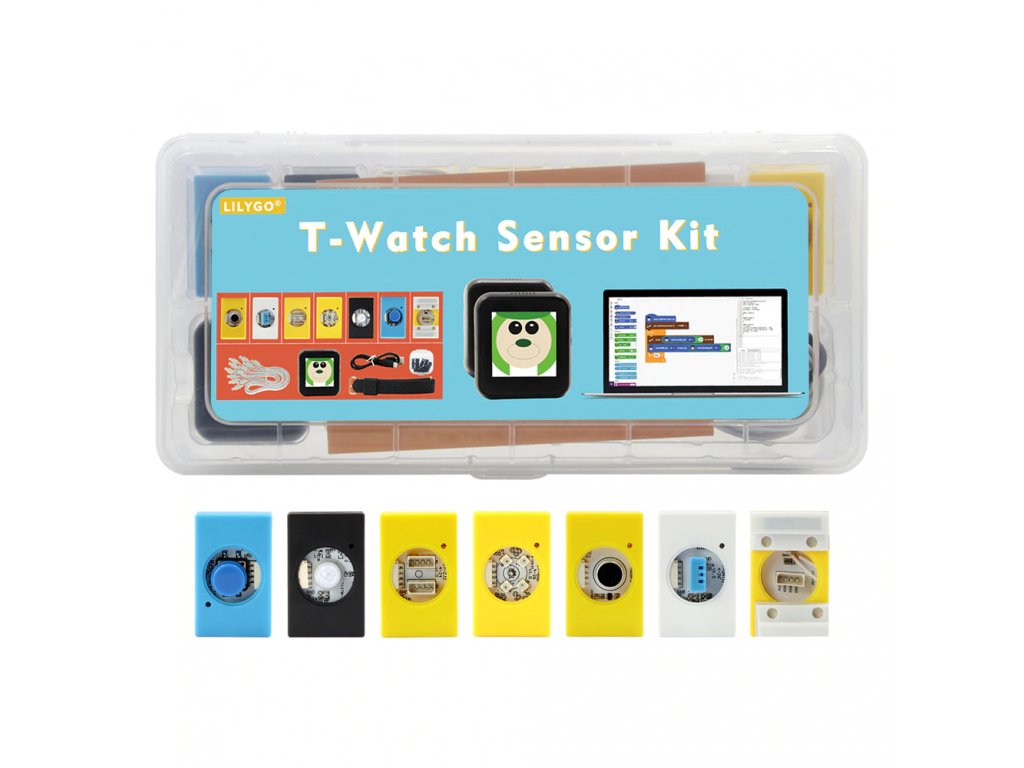

Delivery components:

  • 1pc LilyGO T-Watch ESP32 1.54 IPS watch
  • 1pc strap for attaching the watch to the wrist
  • 1pc USB-C cable
  • 1pc Button expansion module
  • 1pc PIR sensor expansion module
  • 1pc Expansion module door contact
  • 1pc Expansion module 4x intelligent RGB LED WS2812
  • 1 pc Expansion module microphone
  • 1pc Expansion module DHT12 sensor
  • 1pc Module for connecting two expansion modules at the same time
  • 3pcs Connecting cable length 30cm
  • 3pcs Connecting cable length 15cm
  • 5 pcs of Connecting posts

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: Retired
Warranty: 2 years
Weight: 0.34 kg
Type: ESP
Logical levels: 3.3V
I/O pins: 10
PWM pins: 10
ADC pins: 10
Frequency: 40MHz
Flash memory: 16MB
SRAM memory: 8.5MB
EEPROM memory: Ne
Connector with battery charger: Yes
Microcontroller: ESP32
Converter: CP2104
Bluetooth: Yes
WiFi: Yes
