    Home / Development Boards / ESP / LILYGO® T-Embed ESP32-S3 1.9 ST7789, Black box

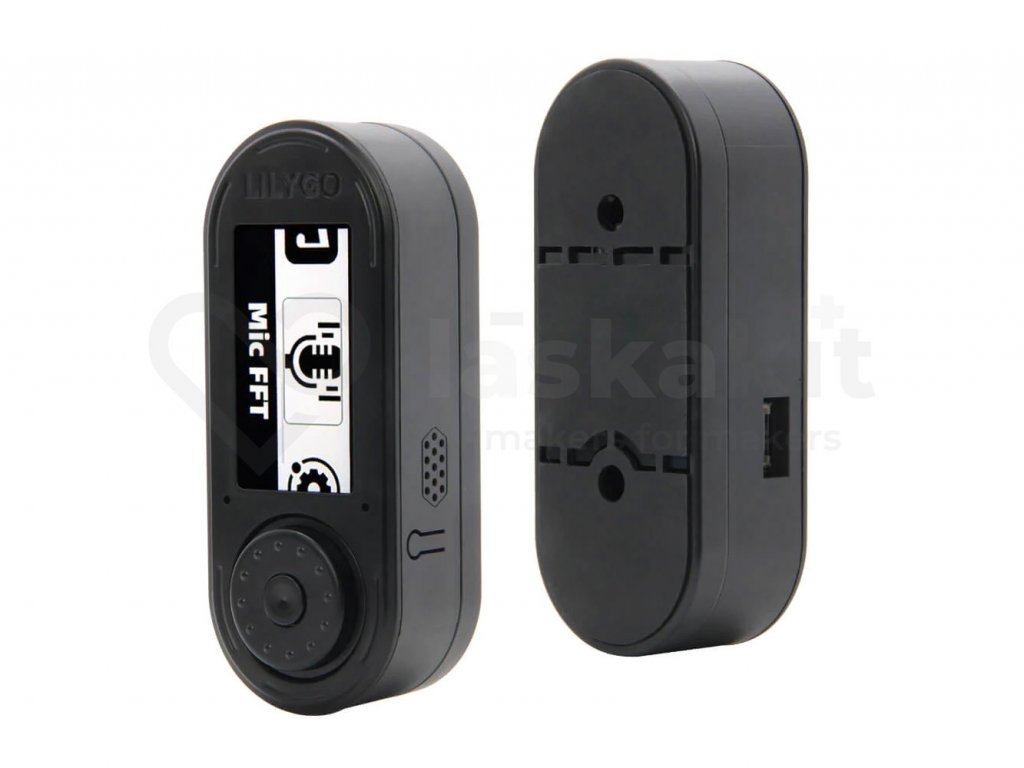

    LILYGO® T-Embed ESP32-S3 1.9 ST7789, Black box

    Code: LA100076B
    Not rated
    Brand: LilyGO
    LaskaKit lilygo t embed esp32 s3 1 9 st7789 cerna krabicka 2
    €62,56 €51,70 excl. VAT
    In stock (2 pcs)
    Delivery to:
    14/02/2025

    LilyGO TTGO T-Display-S3 ESP32-S3 1.9 ST7789 TFT WiFi Module

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

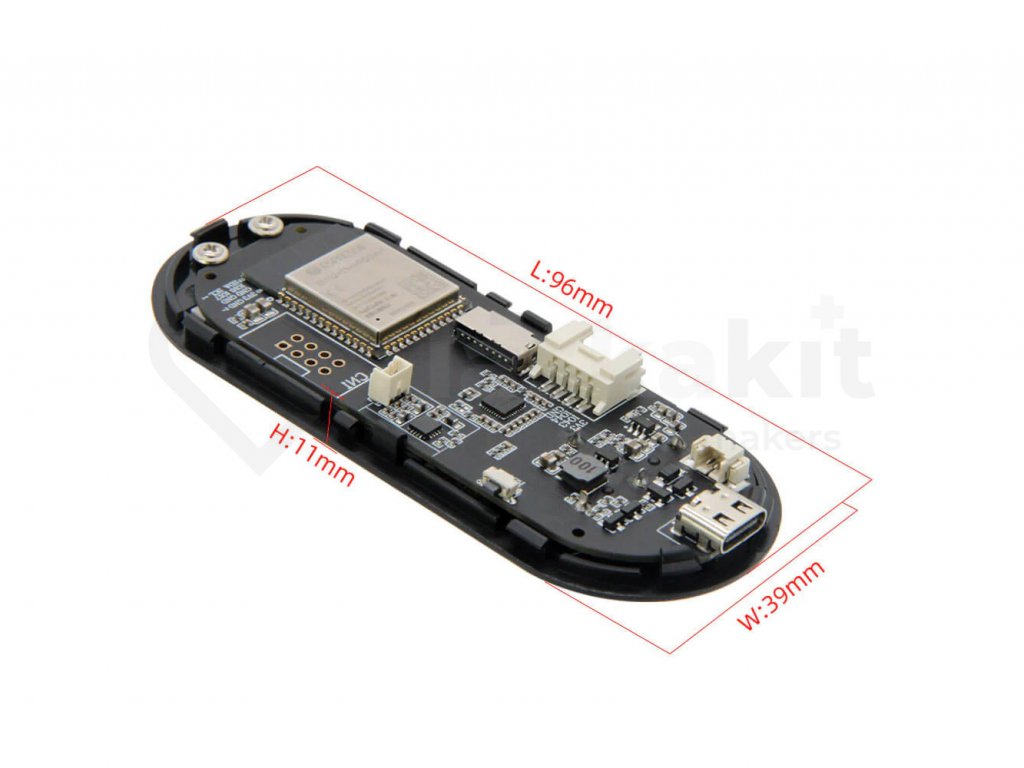

    The LiLyGo T-Embed is a development board with an integrated ESP32-S3 module from Espressif Systems. This board is designed for the development and prototyping of IoT (Internet of Things) applications and projects.

    Specifications:

    MCU ESP32-S3
    Material ABS
    Wireless Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth mesh
    1.9-inch IPS colour TFT LCD
    Model ST7789
    Brightness 350(TYPE)Cd/m2
    Resolution 170(H)RGBx 320(V)
    Rotary encoder + confirmation key in one
    Microphone X 2
    NUMBERS OF DETENT 24
    PULSE/ROTATION 12 PULSE/360°
    Speaker 8 ohms @ 1W
    Ring RGB light x7
    GROVER x 1
    2.54 x 8pin GPIO interface
    TF card holder
    Type-C USB
    Battery charge and discharge protection circuit@1.25mm battery interface

    Included in delivery:

    • 1pc LILYGO® T-Embed ESP32-S3 1.9 ST7789, Black box

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: ESP Development Boards
    Warranty: 2 years
    Weight: 0.106 kg
    Type: ESP
    Logical levels: 3.3V
    I/O pins: 12
    PWM pins: 12
    ADC pins: 10
    Frequency: 240MHz
    Flash memory: 16MB
    SRAM memory: 8MB
    EEPROM memory: Ne
    Connector with battery charger: Yes
    Microcontroller: ESP32-S3
    Converter: Integrated
    Bluetooth: Yes
    WiFi: Yes
