LILYGO® T-Camera S3 0.96 OLED WiFi Module
Code: LA100041
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description

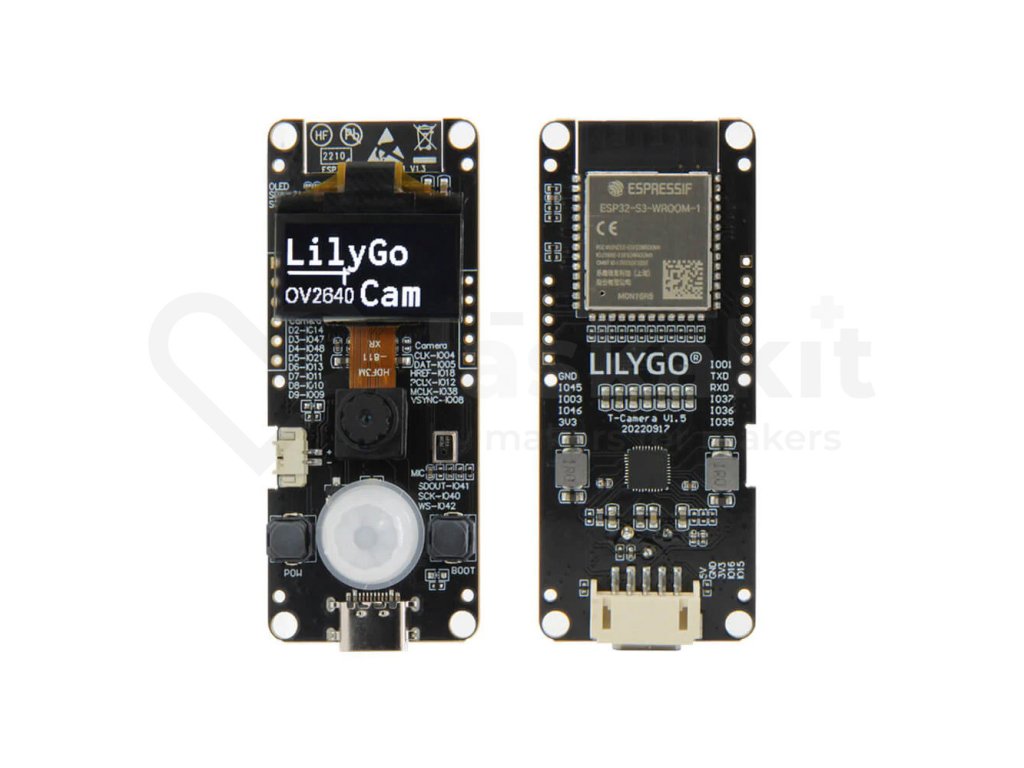

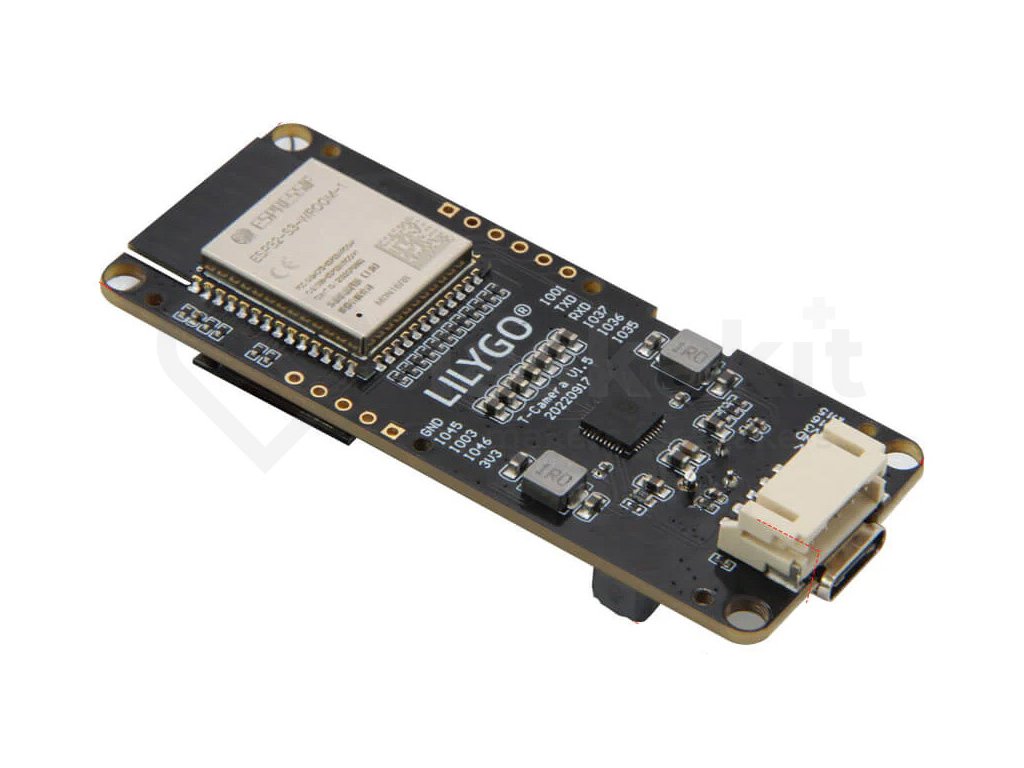

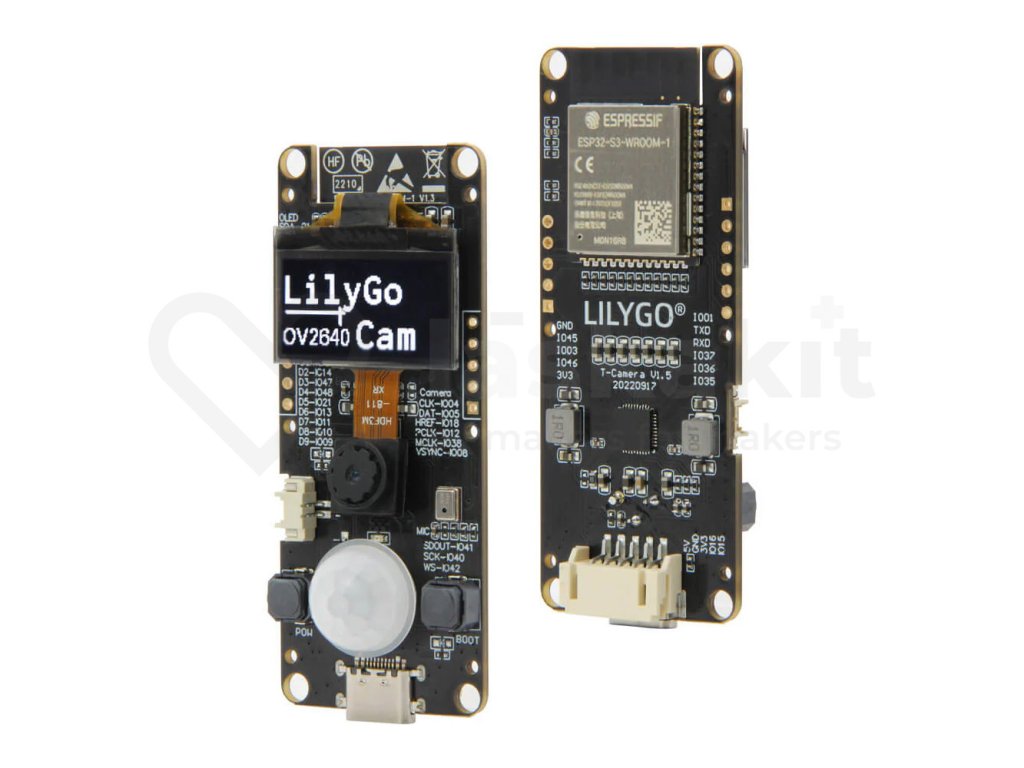

Development board with ESP32-S3 module, which is integrated with 0.96" 128x64 OLED display SSD1306, 2Mpx camera OV2640, PIR sensor, power/charging chip for Li-ion/Li-Po batteries, microphone, USB-UART converter and two buttons - RST(reset) and IO00(for use in software).
The ESP32-S3 module has a 32-bit microprocessor with two cores, 16MB FLASH memory, 8MB PSRAM memory, Wi-Fi 802.11 b/g/n and Bluetooth 5.
Specifications:
| MCU | ESP32-S3FN1 6R8 Dual-core microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide、 VS Code |
| PSRAM | 8MB |
| Flash | 16MB |
| OV2640-Camera module | |
| Pixels | 2 Million (UXGA 1622X1200) |
| Voltage | 3.3V |

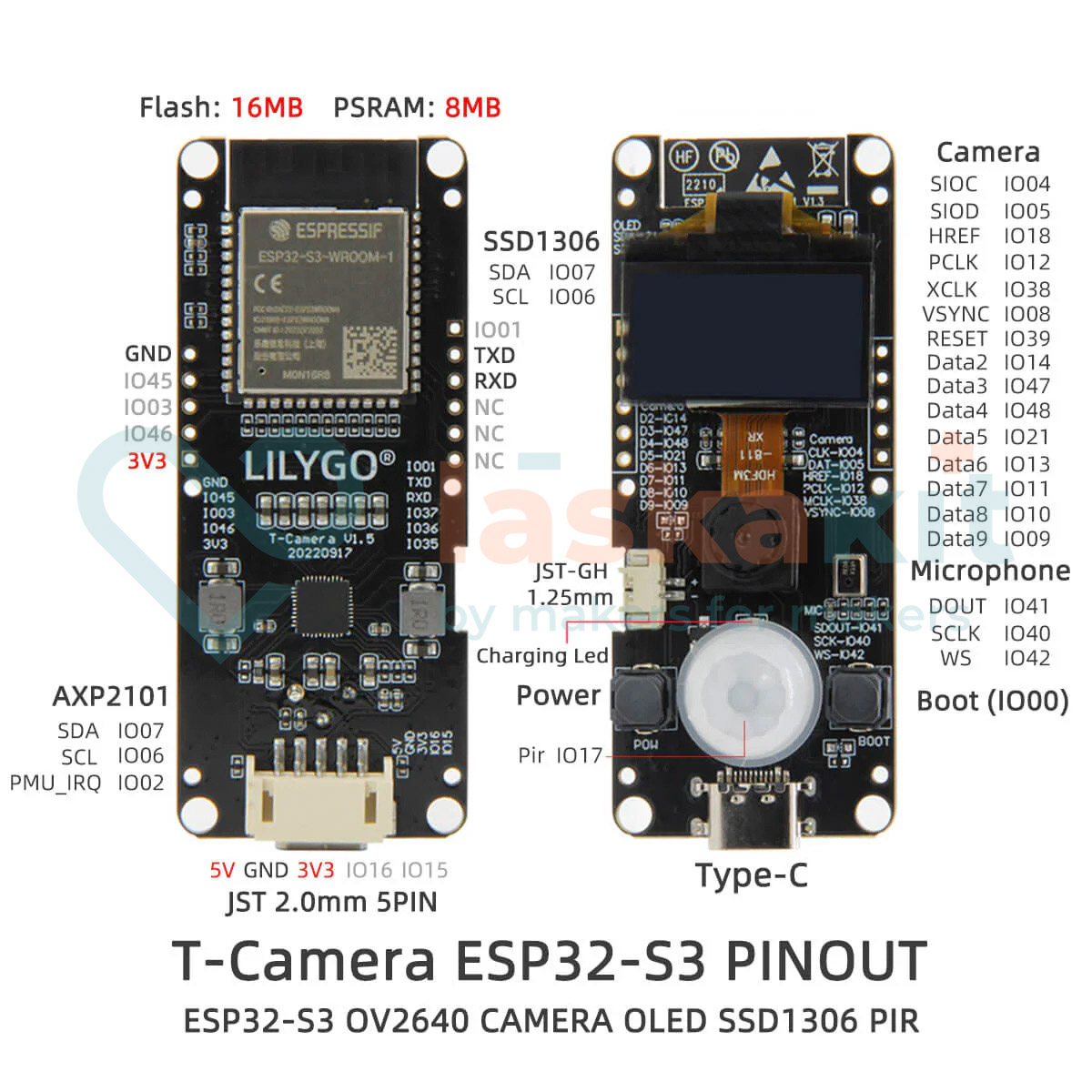

| OLED I2C SSD1306 0.96 inch | |
| Resolution | 128x64 |
| Drive Protocol | I2C |
| SDA | IO07 |
| SCL | IO06 |
Delivery components:
- 1pc LILYGO® T-Camera S3 0.96 OLED WiFi Module
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | ESP Development Boards |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.038 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 8 |
| PWM pins: | 8 |
| ADC pins: | 2 |
| Frequency: | 40MHz |
| Flash memory: | 16GB |
| SRAM memory: | 8MB |
| EEPROM memory: | Ne |
| Connector with battery charger: | Yes |
| Microcontroller: | ESP32-S3 |
| Converter: | CH9102 |
| Bluetooth: | Yes |
| WiFi: | Yes |
