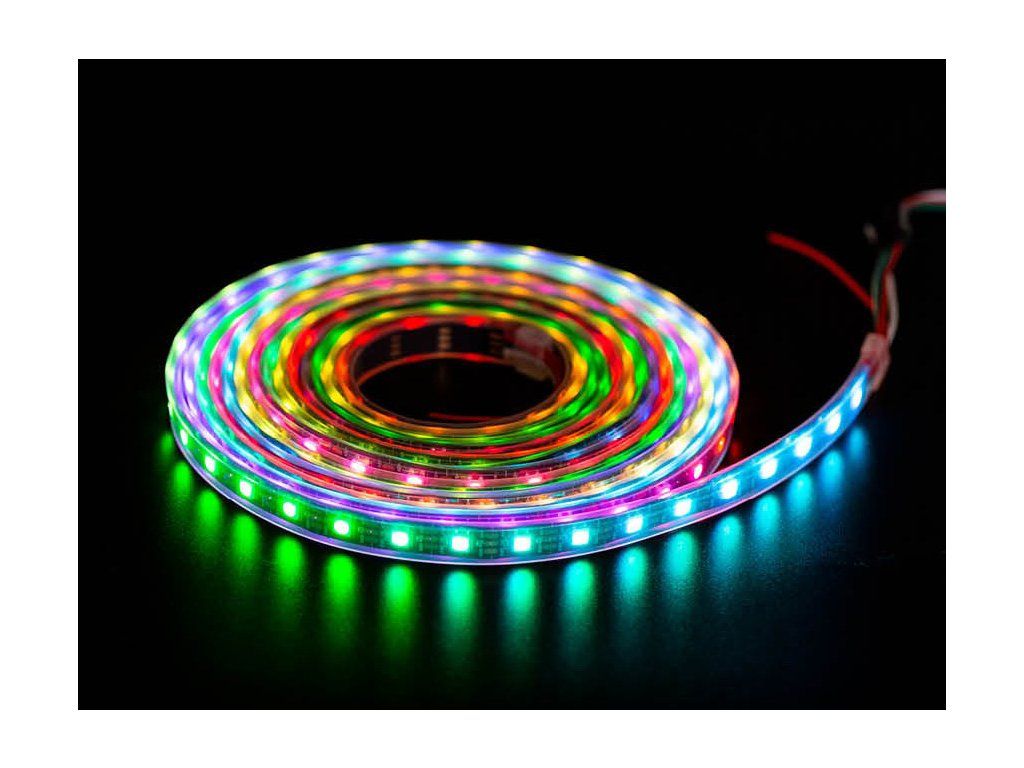

Led strip Neopixel WS2812B 30led/m IP65 5m black

Product detailed description

This LED strip consists of WS2812B LEDs connected in series. These LEDs have a built-in chip with 3 bytes of memory. These adjust the intensity of the light of each of the three colours. This allows communication via a single channel interface. So it means that you can drive a lot of LEDs using a single digital pin of your Arduino.

Specifications:

• Power supply: 5V DC
• Degree of protection: IP65
• Power max: 9W/m
• Current max: 3x20mA / 1pcs LED, 1.8A/m
• Current at zero light: 1mA/ 1pcs LED
• Number of pins: 3 (VCC, GND, DO or DI)
• Protocol: 24 bits (3x8 RGB)
• Dimensions: 10mmx3mmx5m

Included in delivery:

• 1pc Led strip Neopixel WS2812B 30led/m IP65 5m black

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• To prevent overheating and to make the power supply last longer, we recommend at least a 30% power reserve.
• It is recommended to glue the strip on the aluminum rail for better cooling of the chips. This will rapidly increase their service life.
• When using longer tape units, we recommend feeding power from both ends, or in three meter increments to ensure stable color rendering along its entire length.
