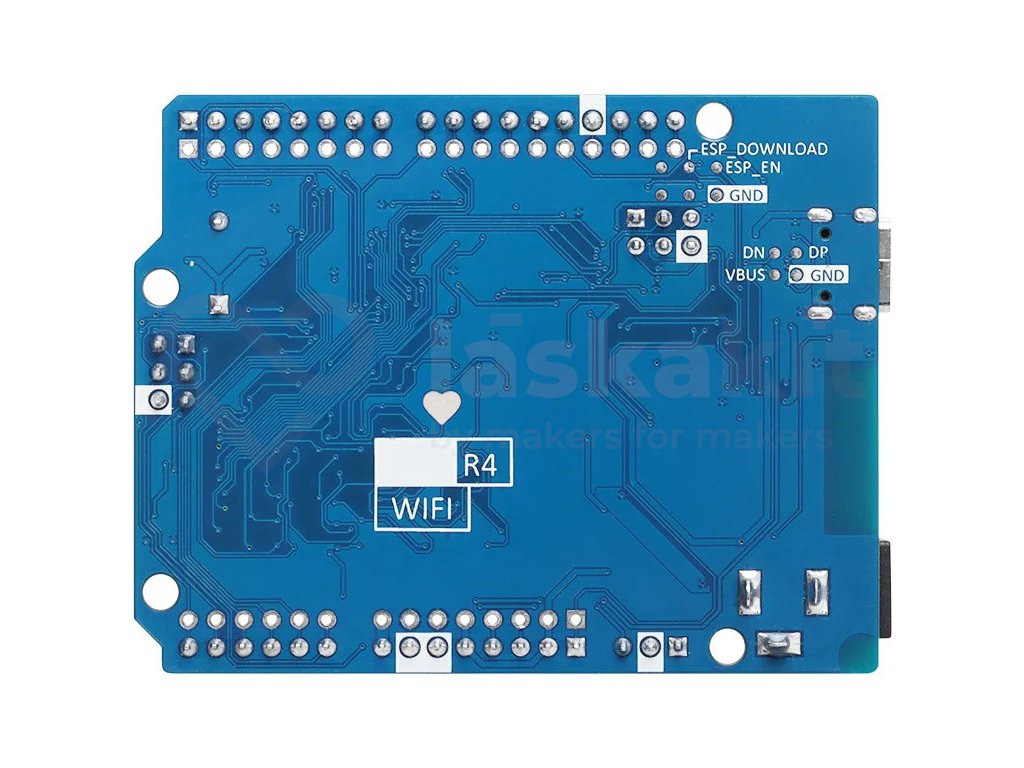

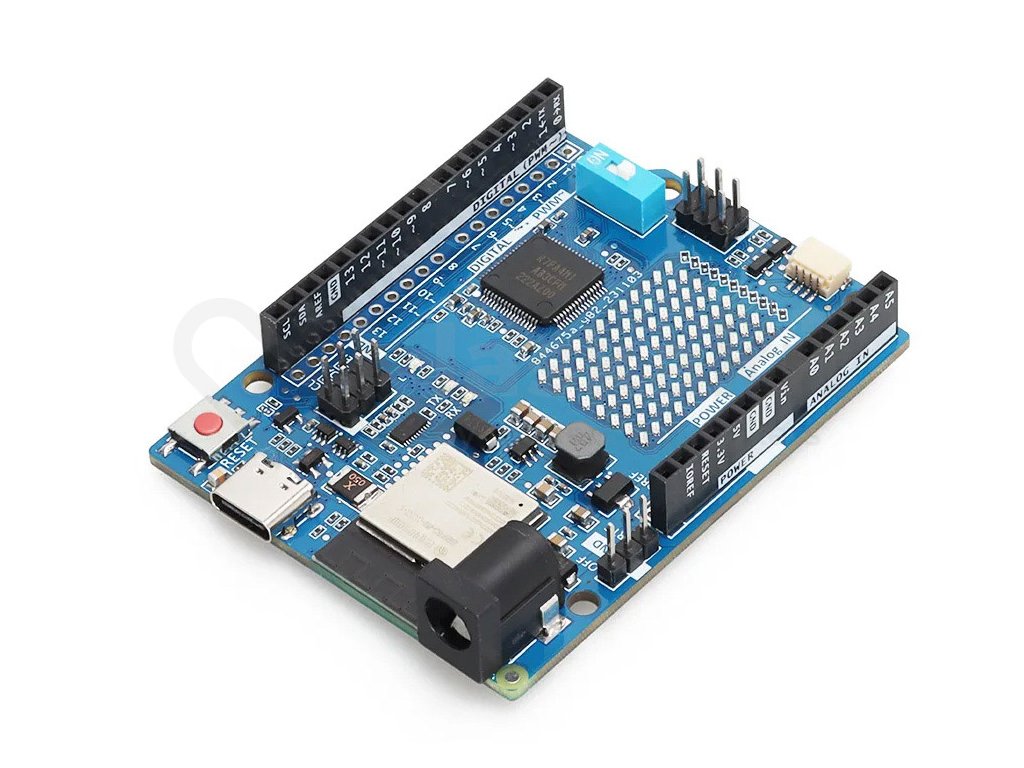

LaskaKit UNO R4 WiFi

Product detailed description

The UNO R4 WiFi clone has a 32-bit ARM Cortex-M4F processor at 48 MHz Renesas RA4M1. The older R3 had an 8-bit ATmega328 processor. The new R4 is 3-16x faster and offers more memory. The memory on R4 is 32 kB SRAM, 256 kB flash and 8 kB flash for data.

In addition, compared to the regular model, it has a second microprocessor in the form of ESP32-S3 with five pins of its own and the ability to connect to WiFi and Bluetooth. In addition, there is a matrix on the PCB for a 12x8 pixel LED display.

Dimensions and connectors remain the same as R3. The new power supply can be supplied at 7-24 V via the power connector or 5 V via USB-C. In addition, the R4 has a new 12-bit DAC and CAN bus support.

New features:

• USB-C connector
• RA4M1 processor from Renesas (Arm ® Cortex ®-M4)
• HID mode support
• Power up to 24V
• CAN bus
• 12 bit DAC
• OP amplifier
• Wi-Fi and Bluetooth
• Touch sensor

Specifications:

• MCU: ESP32-S3 and Renesas RA4M1
• Memory:
  • Renesas RA4M1:
    • 256kB Flash
    • 32kB SRAM
    • 8kB EEPROM
  • EPS32-S3:
    • 384KB ROM
    • 528MB SRAM
• Operating voltage: 5V (Renesas RA4M1) and 3.3V (ESP32-S3)
• Supply voltage: 6-24V
• Frequency: 48 MHz (Renesas RA4M1) and 240MHz (ESP32-S3)
• Programming connector: USB-C
• Outputs:
  • Digital pins: 14 (Renesas RA4M1) and 5 (ESP32-C3)
  • ADC: 6 (14 bits)
  • DAC: 1 (12 bit)
• Interface:
  • PWM
  • Sleep
  • I2C
  • Pulse counter
  • UART
  • CAN
  • PWM
  • Matrix for 12x8 pixel LED display

Delivery components:

• 1pc LaskaKit UNO R4 WiFi

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
