LaskaKit TPS62A02 Step-down měnič 4.0-5.5V 3.3V/2A

Product detailed description

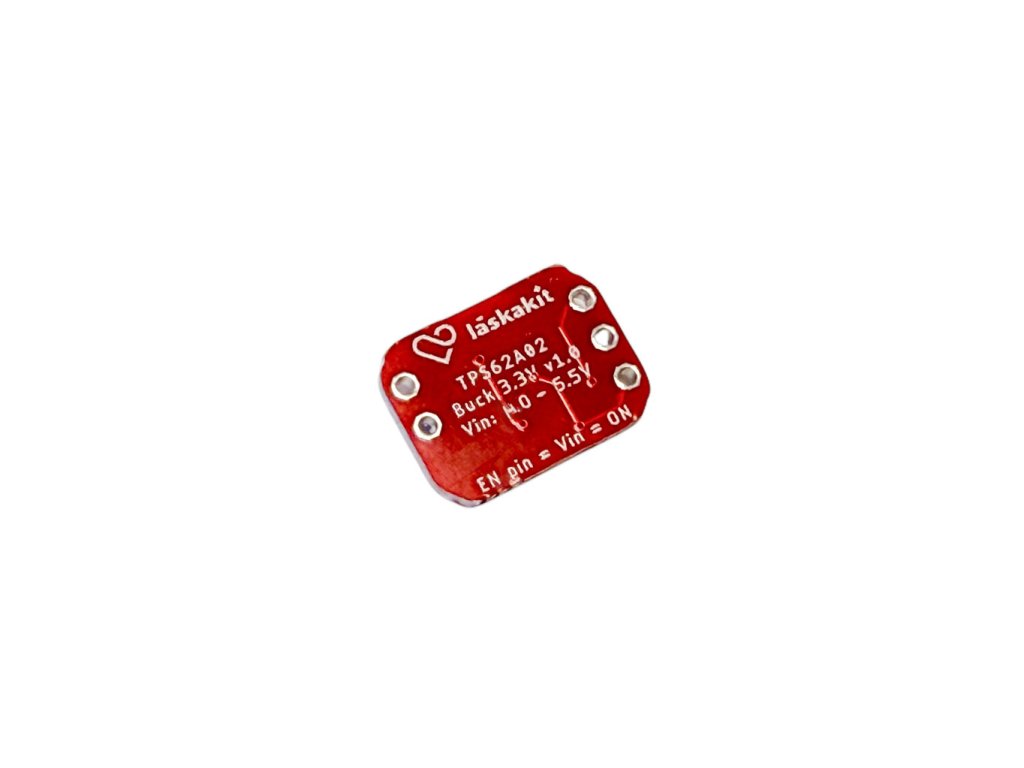

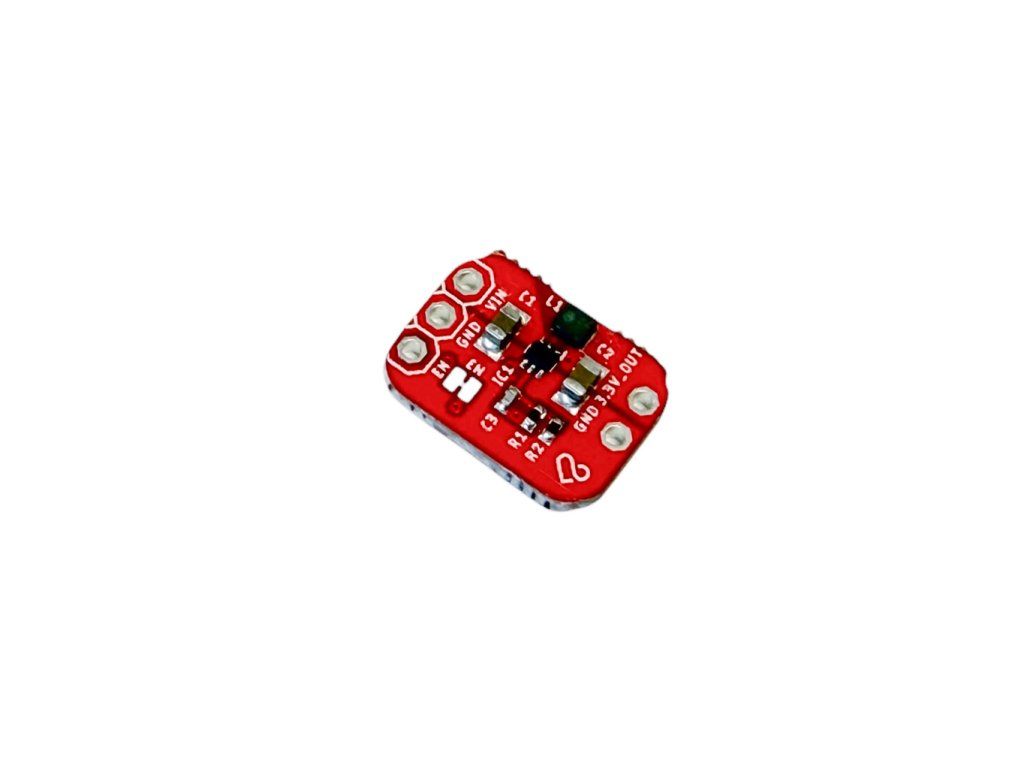

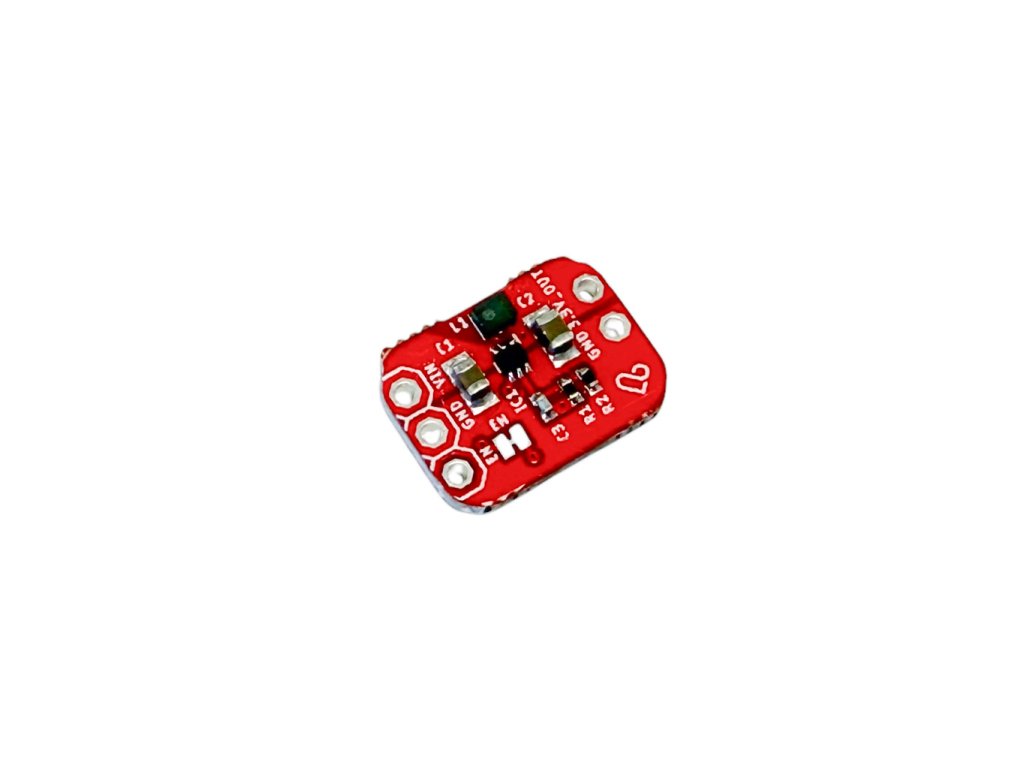

JP332A is a very efficient switching voltage regulator module. Using Texas Instrument's TPS62A02 integrated chip, the module achieves up to 96% efficiency. Input voltage ranges from 3V to 6V. The output voltage is fixed at 3.3V. The whole circuit is mounted on a very small PCB with dimensions 14mm by 8mm.
The PCB also includes holes for mounting a header with a pitch of 2.54mm.
The size of the PCB allows it to be mounted in a non-soldering field for powering components.

Specifications:

• IO: TPS62A02
• 3.3V to 5.5V input voltage
• Output voltage 3.3V
• Maximum output current 2A
• 1% accuracy of output voltage value
• Efficiency up to 96%
• Quiescent current <25μA
• Dimensions 14x8 mm

Included in delivery:

• 1pc JP IonTic JP332A Step-down converter TPS62A02 3-6V 3.3V/2A

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
