LaskaKit set of quick couplings 75 pcs

Product detailed description

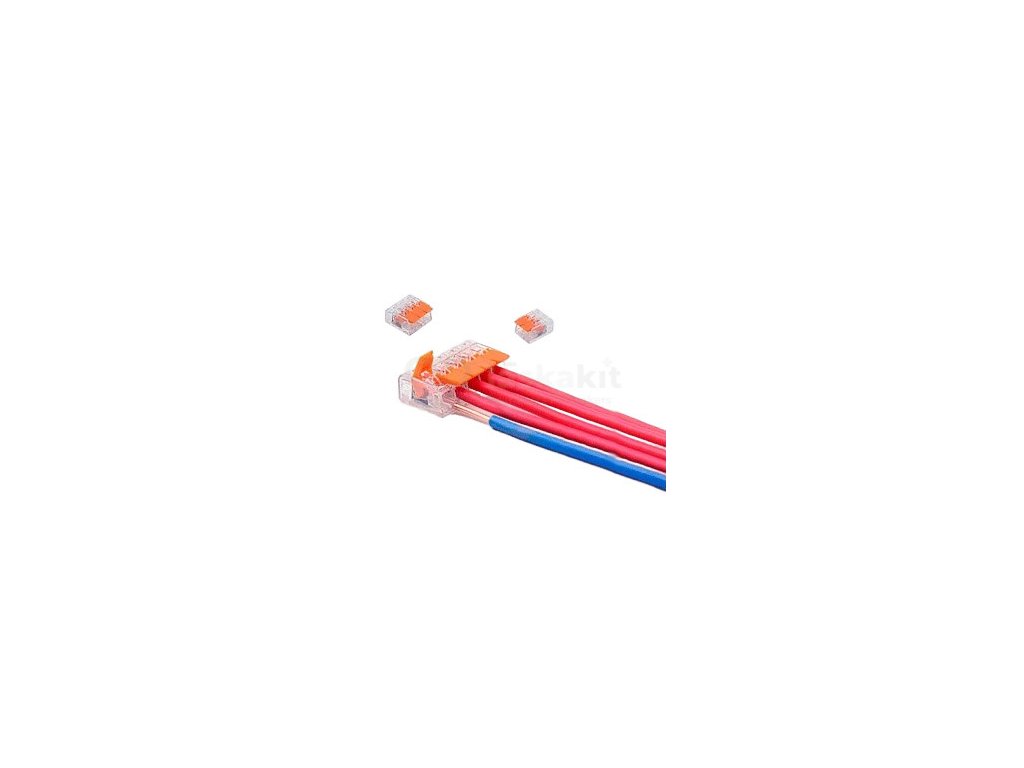

Universal installation quick couplers equipped with clamp. With products from this series you can connect single and multi-core cables in a wide range of cross-sections.

Specifications:

• Cable type: single or multi-core
• Total number of potentials: 1
• Nominal voltage EN: 250V
• Rated surge voltage: 4kV
• rated current up to: 32A
• Single wire cable (RV, BRV) from 0.08 ^mm2 to 2.5 ^mm2 (28 - 14 AWG)
• Cord (BV) from 0.08 mm2^to 4 ^mm2 (28 - 12 AWG)
• Insulation length: approx. 10 mm

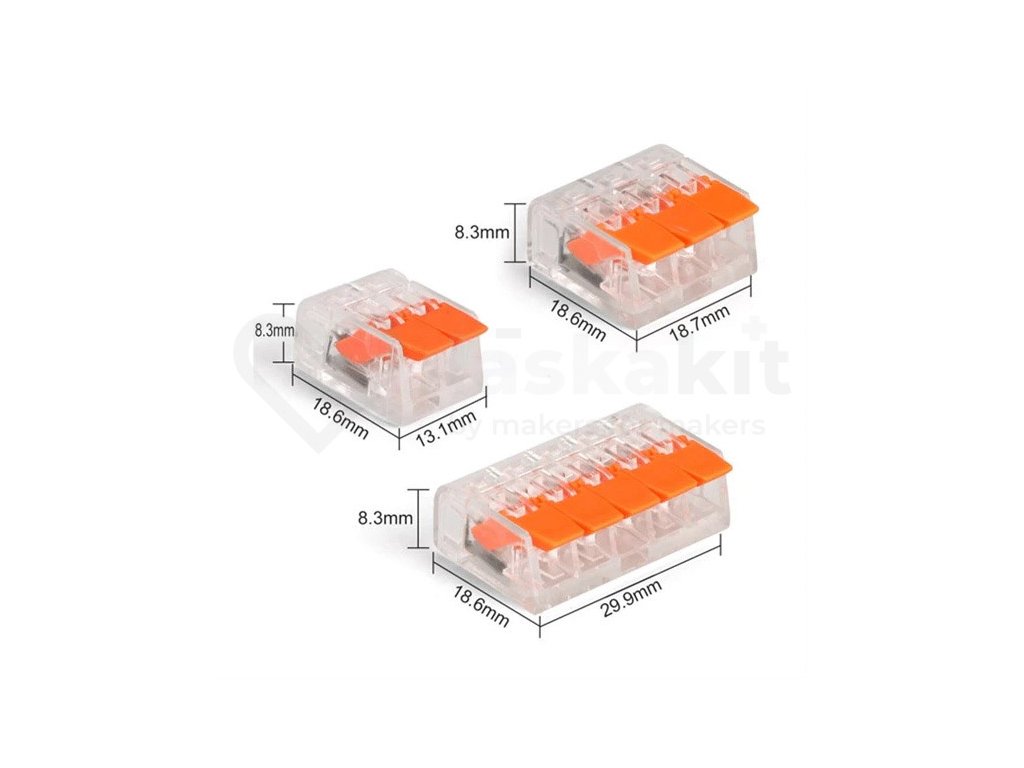

• Dimensions: 172x98x22 mm

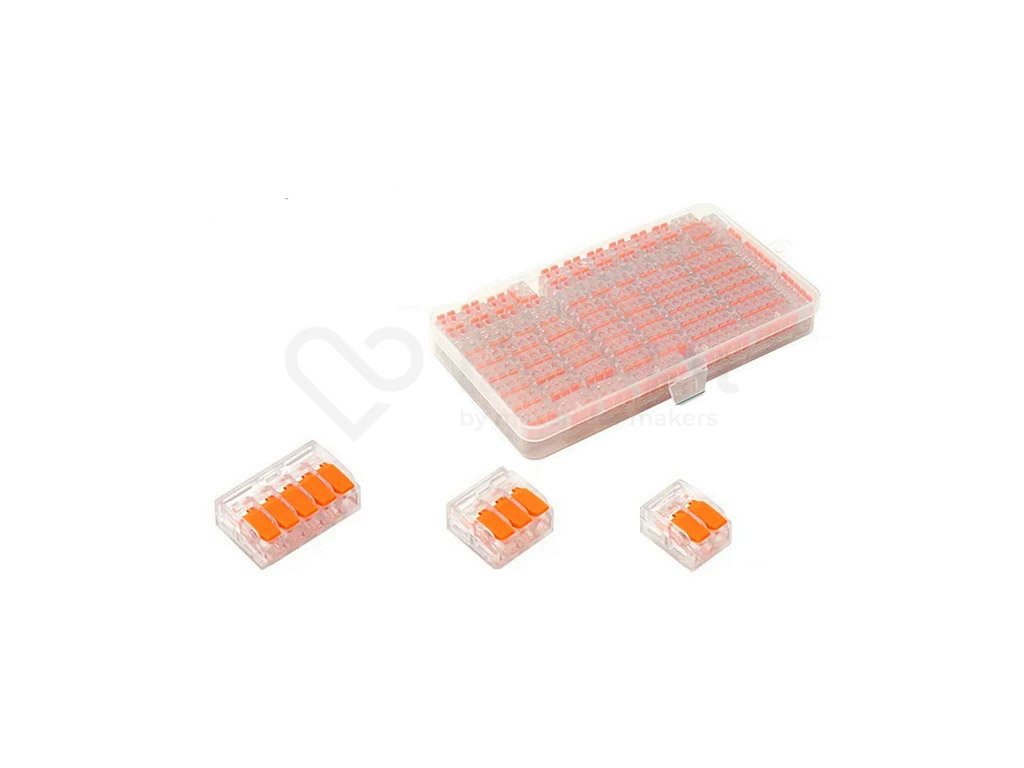

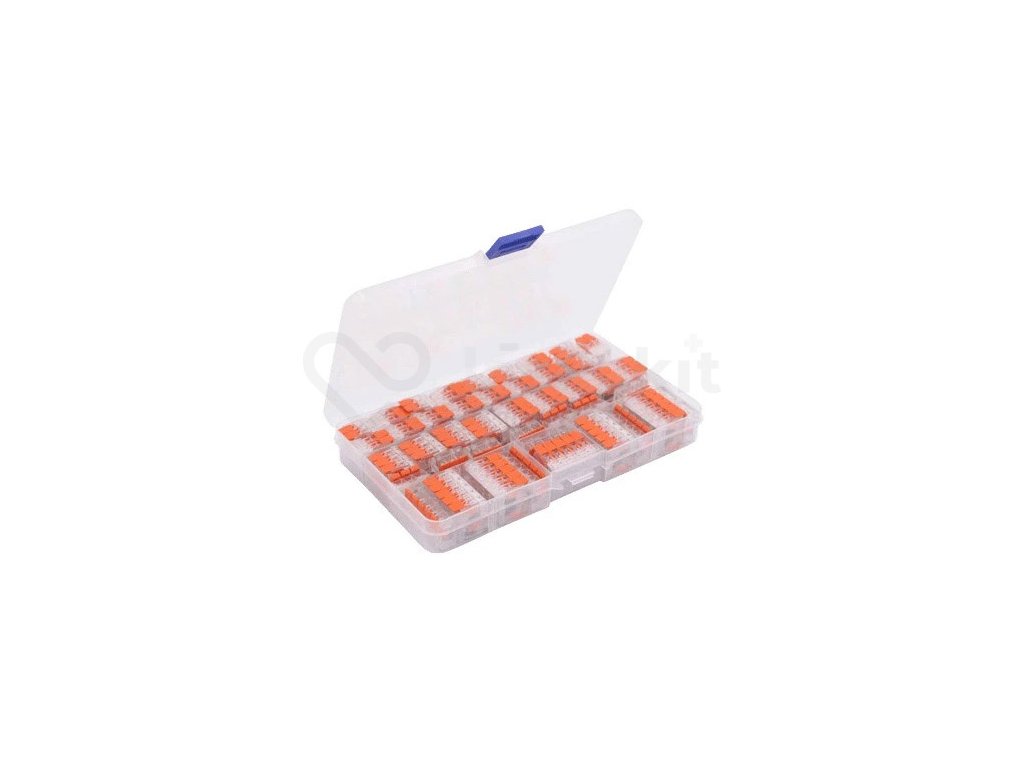

• The set contains:
• 2 ports 35 pieces
• 3 ports 25 pieces
• 5 ports 15 pieces

Included in delivery:

• 1pc LaskaKit quick coupler set 75pc

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
