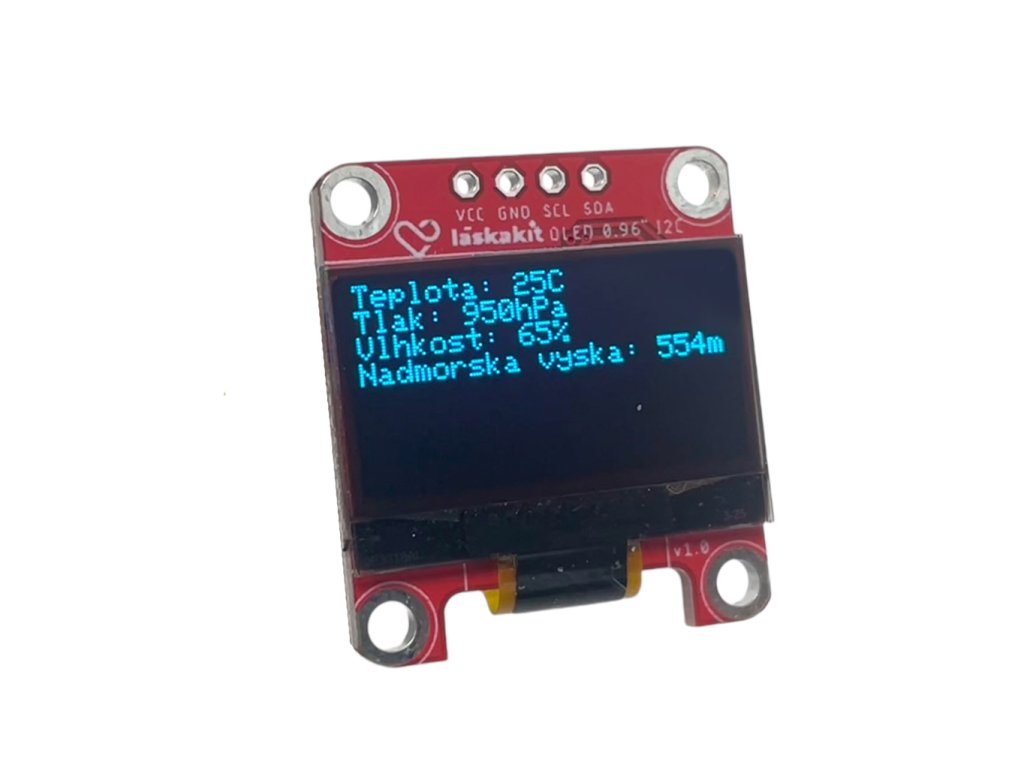

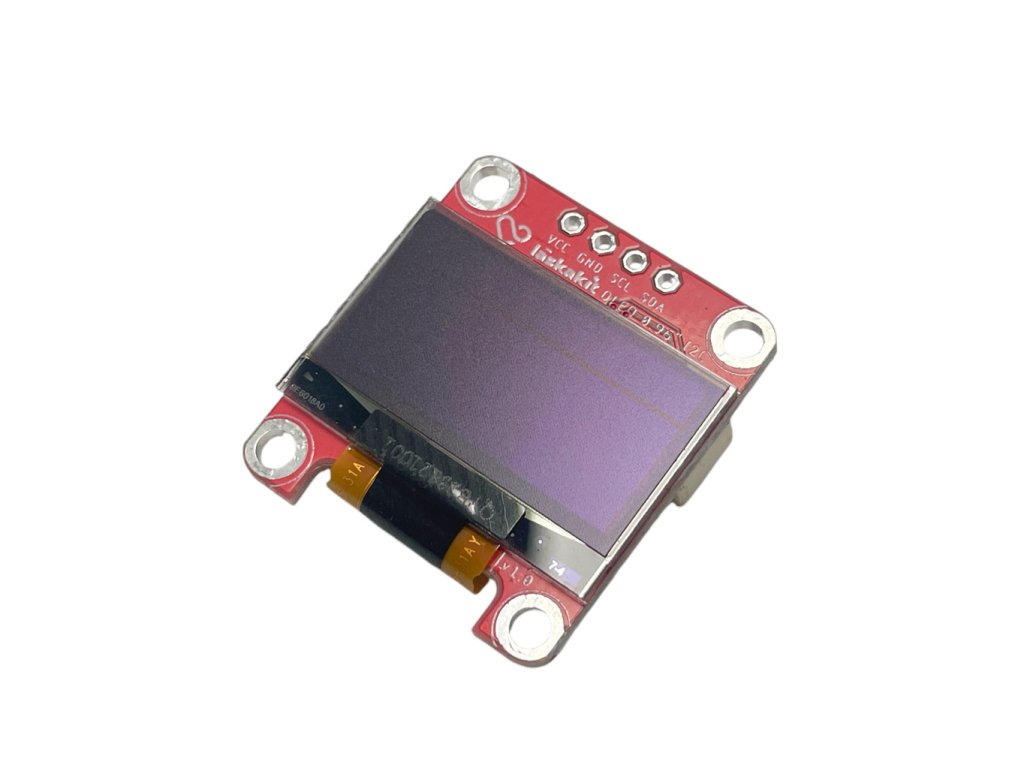

LaskaKit OLED display 128x64 0.96 I²C

Product detailed description

We have many modules and boards that support our uSUP connector (compatible with Qiik and Stemma). You can measure temperature/humidity with the SHT40, pressure with the BME280, CO2 with the SCD41 and now we would like to introduce a 0.96" OLED with two earplugs and also includes a socket for a 2.54mm connector.

The input power supply voltage range is really large - from 3.3 to 5 V. The I2C bus contains 10k pull-up resistors. Do you need two OLEDs? Well, use a solder bridge where you can choose the I2C address - 0x3C or 0x3D. Resolution: 128x64 Chip: SSD1315 (SSD1306)

Specifications:

• Chip: SSD1315
• Resolution: 128x64 points
• Connection: I²C
• Working voltage: 3.3-5V
• Working current: 80mA (max)
• Dimensions: 24.8x27.5mm.

Included in delivery:

• 1pc LaskaKit OLED display 128x64 0.96 I²C

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
