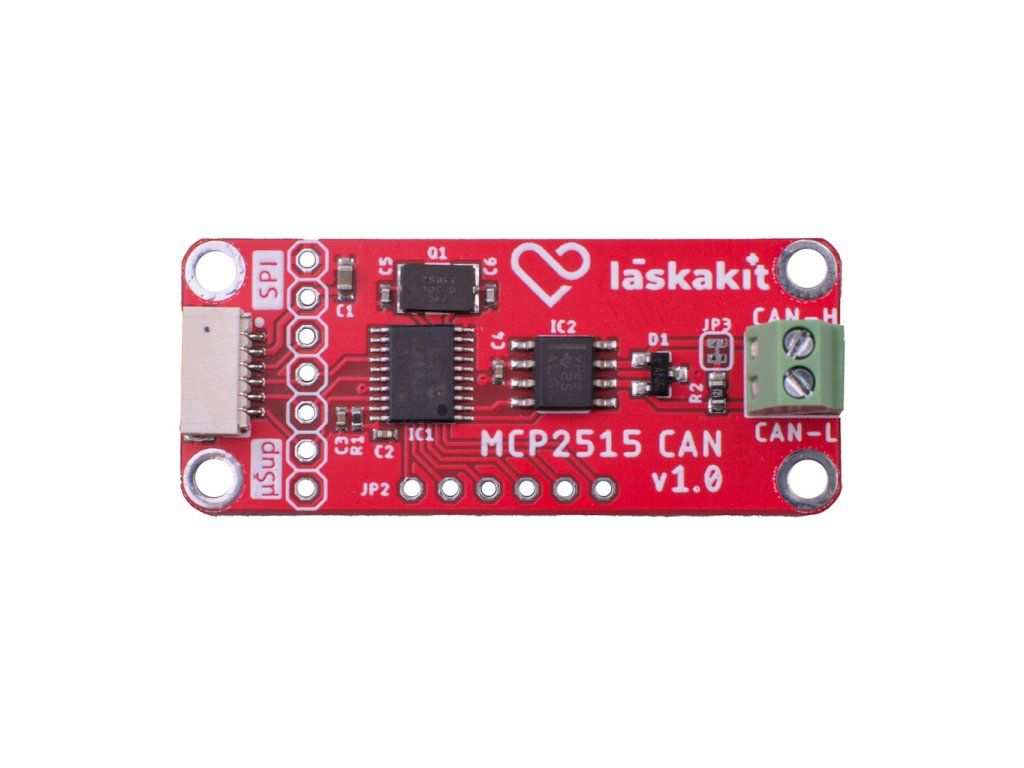

LaskaKit MCP2515 CAN Bus Module

Product detailed description

SPI or I2C buses are not really suitable for long distances. We know this, so we designed a module called MCP2515-CAN that communicates via CAN bus.

The small module is equipped with all the necessary circuits for fast communication and even faster development of your project.

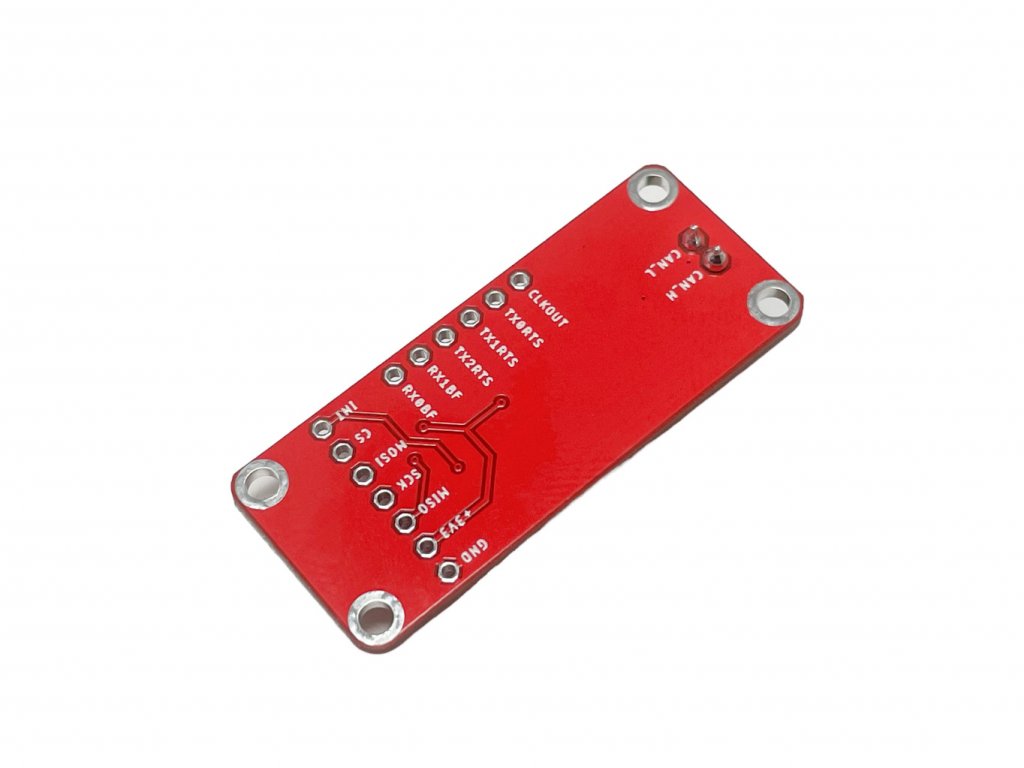

On one side of the module there is a two-pin connector for CAN bus connection, on the other side there is a SPI pin or 2.54mm (ungrounded) pin for connection to the microcontroller on your board. It doesn't matter if it's ESP32, Raspberry Pi or Arduino. It is enough that the logic voltage is 3.3V.

Specifications:

• Standard V2.0B
• Communication speed: 1 Mbps up to 8 byte data array
• Supply voltage: 3.3V DC
• Interface: SPI 3.3V
• Termination resistance: 120 Ω
• Impedance matching for long distance transmission
• Size: 44.3x18.7mm

Included in delivery:

• 1pc LaskaKit MCP2515 CAN Bus Module

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• When connecting to the RPi it is necessary to connect the INT signal, which is not on the uSup connector. If it doesn't connect, it looks like the device is found, but it cuts in a strange way when trying to initialize.
