LaskaKit MAX31865 converter for PT100/1000 thermocouple

Code: LA161052
€7,88 €6,51 excl. VAT
Skladem (334 pcs)
Delivery to:
16/12/2024

LaskaKit MAX31865 converter for PT100/1000 thermocouple

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

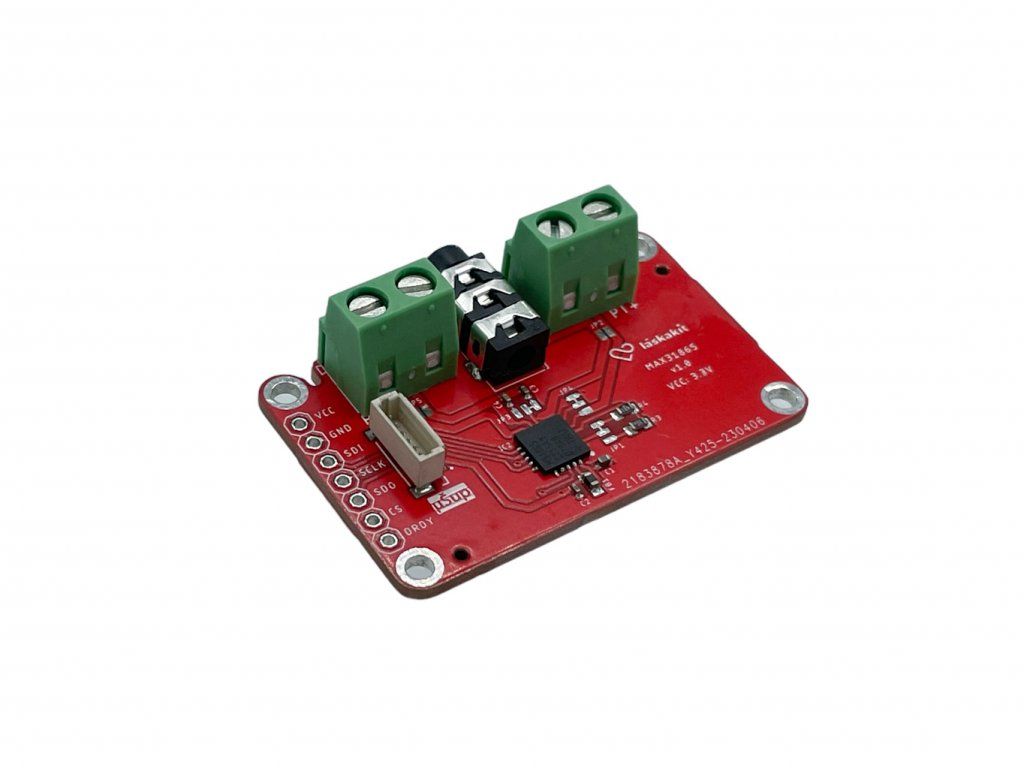

Transmitter module for PT100 and PT1000 platinum temperature sensors with SPI interface. Thanks to the MAX31865 chip, highly accurate measurement results are achieved for both four-wire and three-wire PTC sensors. The converter also supports two-wire sensors. However, these cannot be expected to be as accurate as multi-wire sensors. Communication with the microcontroller is via SPI interface and the module has an integrated logic level translator so the module can be operated with 5V power supply and 3.3V logic, or vice versa.

The module is supplied in a configuration for the use of PTC sensors type PT100. If it is necessary to use a module with a PT1000 type sensor, it is necessary to cut and connect jumpers JP1 and JP3 from the other side.

ATTENTION! Due to an error in production, the reference resistors R3 and R4 were confused with each other and the sensor type setting by jumper JP1 does not match. For this reason, the PT1000 sensor is preset instead of the PT100. If you use the PT100 sensor, it is necessary to disconnect the upper plates and power the lower plates, otherwise a different reference resistor will be used than the one intended for the sensor and the measured values will not match!

Setting the number of wires:

  • 4 wire sensors: JP2 and JP5 disconnected, JP4 connected at the top (default)
  • 3 wire sensors: JP2 disconnected, JP5 connected, JP4 connected down
  • 2 wire sensors: JP2 and JP5 connected, JP4 connected on top

Specifications:

  • Chip used: MAX31865
  • Support: temperature sensor type PT100, PT1000 - 2, 3, 4 wires (setup via JP1-5)
  • Power supply: 3.3-5.5V (via μŠup only 3.3V)
  • Interface: SPI
  • Accuracy: 0.5°C, full range 0.05%
  • ADC resolution: 15-bit
  • Temperature resolution: 0.03125°C
  • Size: 45x30.2x7mm

Delivery components:

  • 1pc LaskaKit MAX31865 converter for PT100/1000 thermocouple

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
  • Terminal blocks are not part of the delivery

Additional parameters

Category: Temperature, humidity and pressure sensors
Warranty: 2 years
Weight: 0.006 kg
Output: Digital, Sleep
Sensor type: Temperature
