Product detailed description

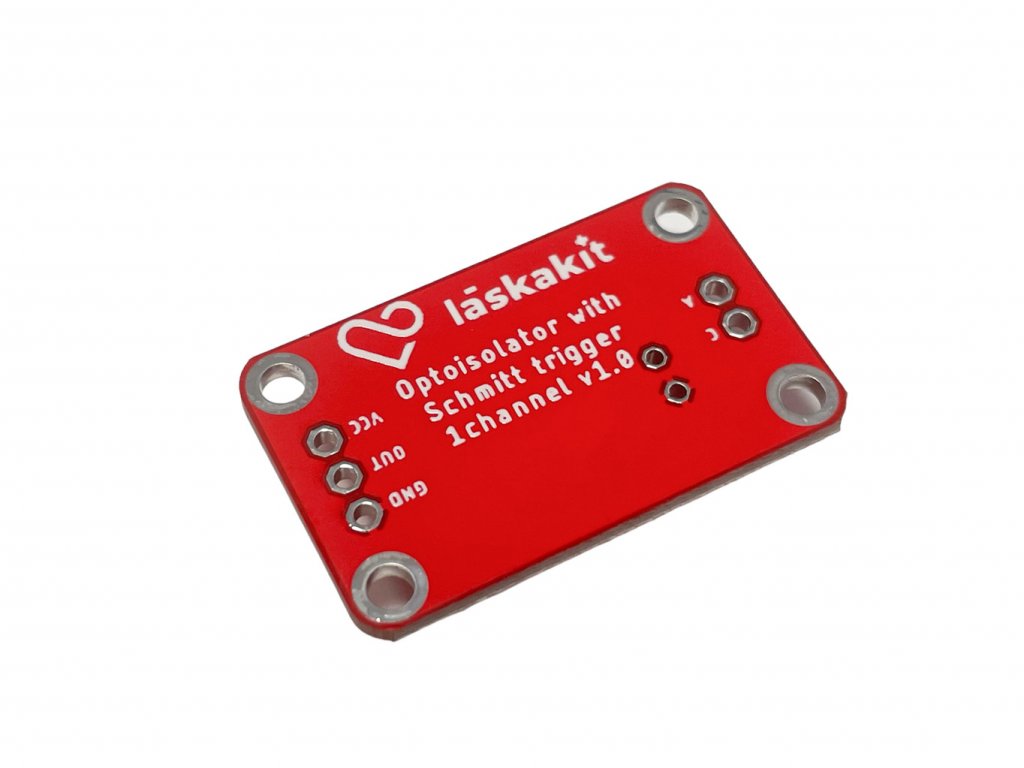

Single-channel optical-galvanic isolator with integrated Schimitt circuit for perfect sharp signal edges.
The HL11L1S chip transmits signals at a speed of up to 1 MHz, at the same time it can be connected to a power supply from 3-15V, on the other hand, the voltage must be in the range of 3.3 - 5V, i.e. ideal for Arduino Uno, Mega, ESP32, ESP8266 or Raspberry Pi.
The module reverses the polarity of the data voltage!
Specifications:
- Input voltage: 3-5V
- Output Voltage: 3V-15V
- LED indication
- Pin spacing: 2.54mm - can be fitted with screw terminals or pin/hole rails
- Dimensions: 31 x19mm
Delivery components:
- 1pc LaskaKit HL11L1S 1-channel Schmitt trigger optoisolator
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Converters & Programmers |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.004 kg |
