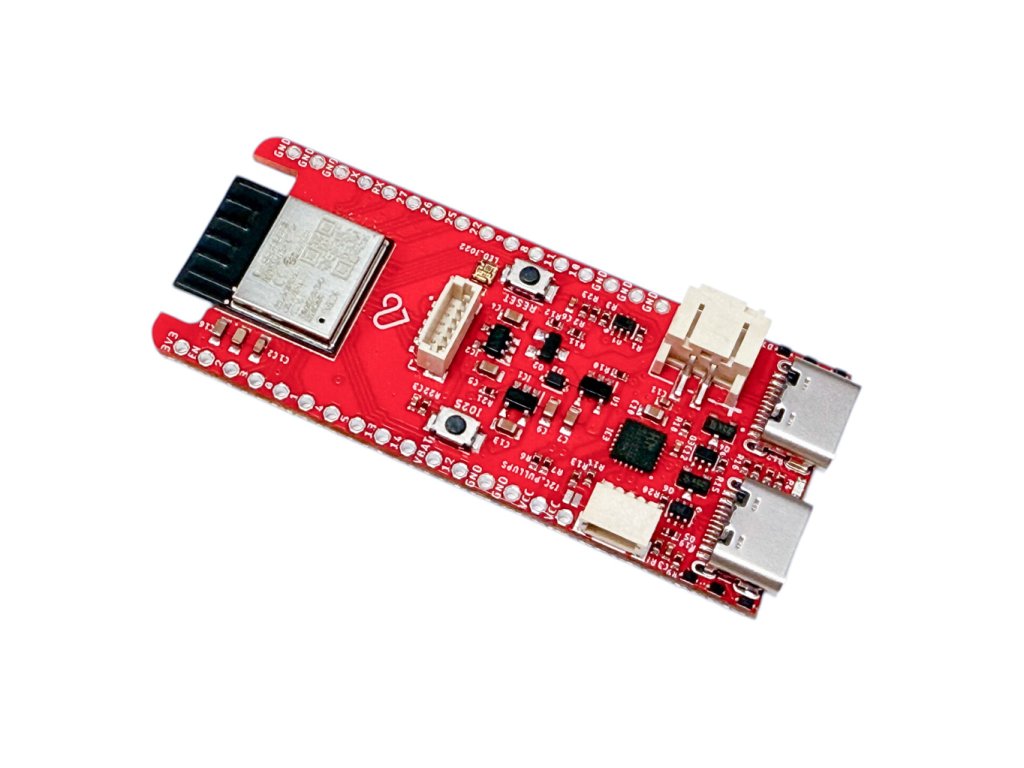

LaskaKit ESP32-H2-DEVKit Bluetooth, ZigBee, Thread, Matter
Code: LA100130I LA100130P Choose variant
Product detailed description
Development board with ESP32-H2 microcontroller specifically designed for ultra-low power battery powered IoT applications. ESP32-H2-DEVKit is a development board based on the ESP32-H2-MINI-1-N4, a general purpose module with 4MB SPI flash. This board integrates complete Bluetooth, ZigBee, Threada Matter functions. Attention! no wifi! Thanks to its choice of components and circuit design, it is one of the boards with extremely low power consumption in sleep mode. Also the type of microcontroller used - SoC ESP32 predestines this board for high-performance IoT applications. The board also contains an integrated charger for one Li-ION cell, which is then powered by the board. With this board, you no longer have to choose between power and power consumption, so you can focus on your own application development with almost no limitations.
The spacing of the I/O pins was deliberately chosen so that the entire board can be inserted into a non-soldering contact field during the development phase, which can greatly simplify the initial design of the application under development.
The board already contains an integrated programmer so there is no need to use another one. Thanks to the new programmer chip and its circuitry, the sleep mode consumption is not significantly affected and therefore it can be used even for applications demanding a long operating time on battery power.
Specifications:
| ESP32 module | ESP32-H2-MINI-1-N4 4MB |
| Input voltage | 3.7-8V |
| Power consumption in deep-sleep mode | 14.5μA (standalone board without connected peripherals) |
| Digital I/O Pins | 14 |
| Analog Inputs | 5 |
| Dimensions | |
| Length | 61mm |
| Width | 25.5mm |
| Height | 7.5mm |
| Weight | 9g |
Delivery components:
- 1pc LaskaKit ESP32-H2-DEVKit Bluetooth, ZigBee, Thread, Matter
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
- Attention! it doesn't have WiFi
Additional parameters
| Category: | ESP Development Boards |
|---|---|
| Warranty: | 2 years |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 14 |
| PWM pins: | 14 |
| ADC pins: | 5 |
| Frequency: | 40MHz |
| Flash memory: | 4MB |
| SRAM memory: | 520kB |
| EEPROM memory: | Ne |
| Connector with battery charger: | No |
| Microcontroller: | ESP32-H2 |
| Converter: | CH9102 |
| Bluetooth: | Yes |
| WiFi: | No |
