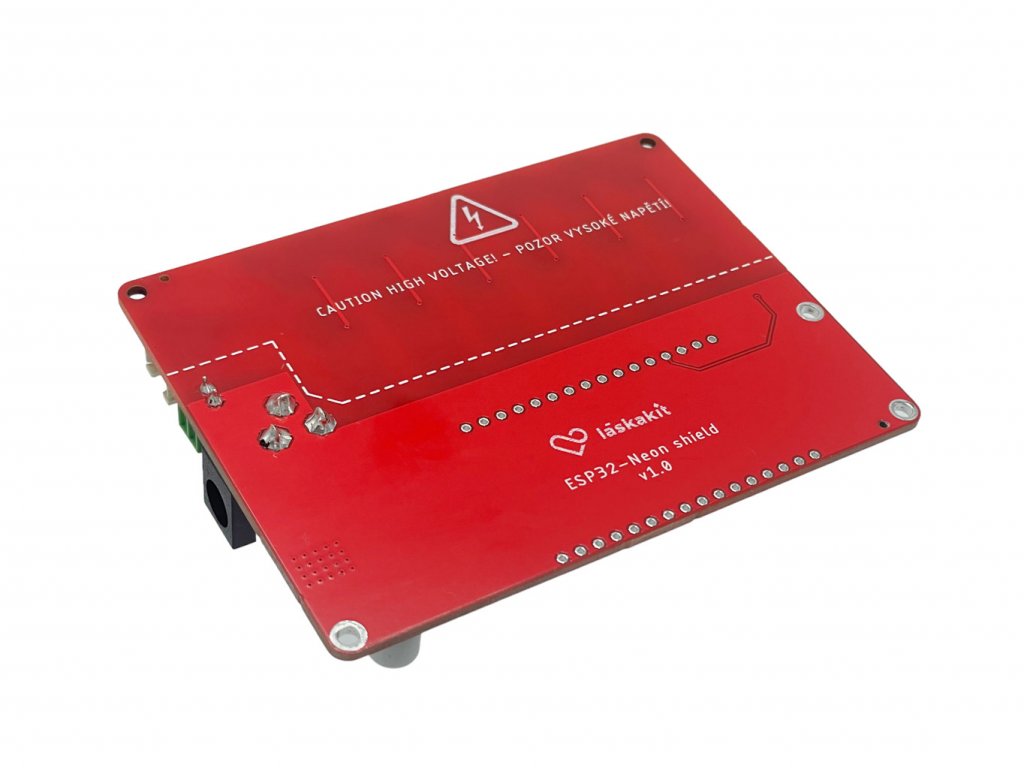

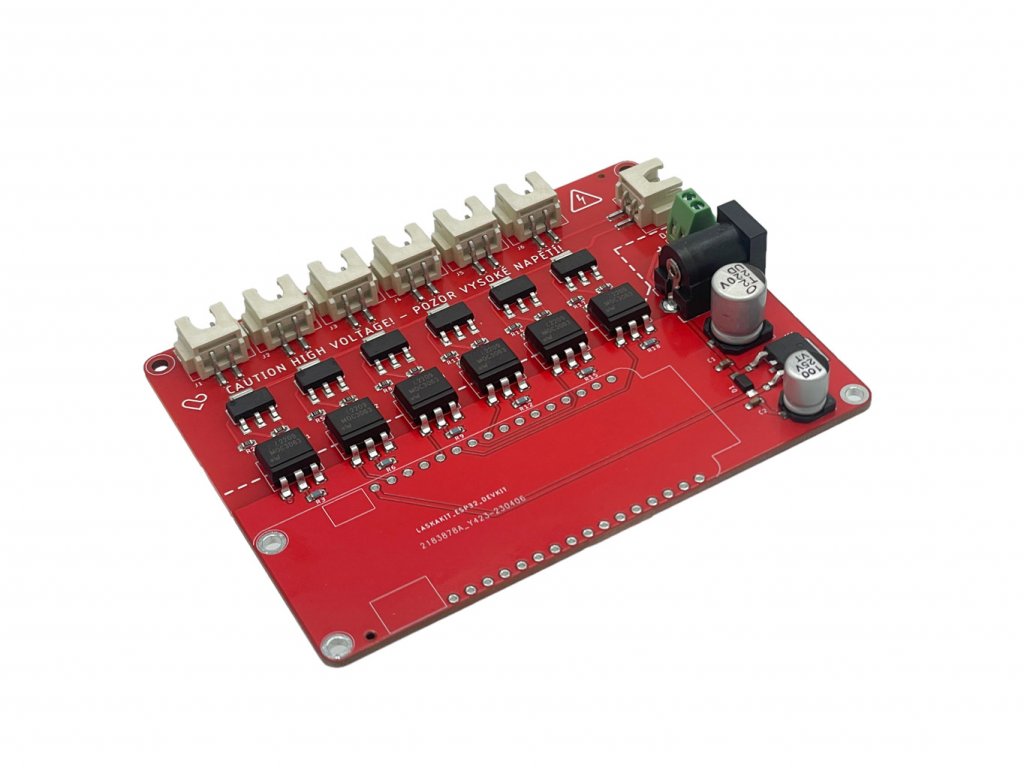

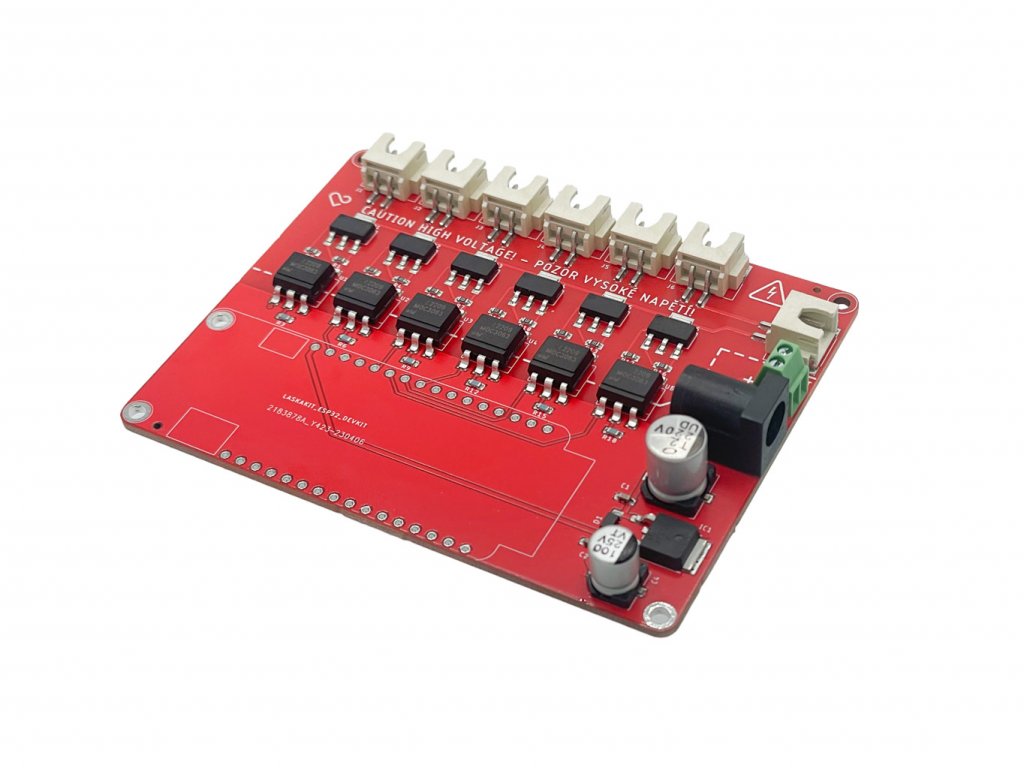

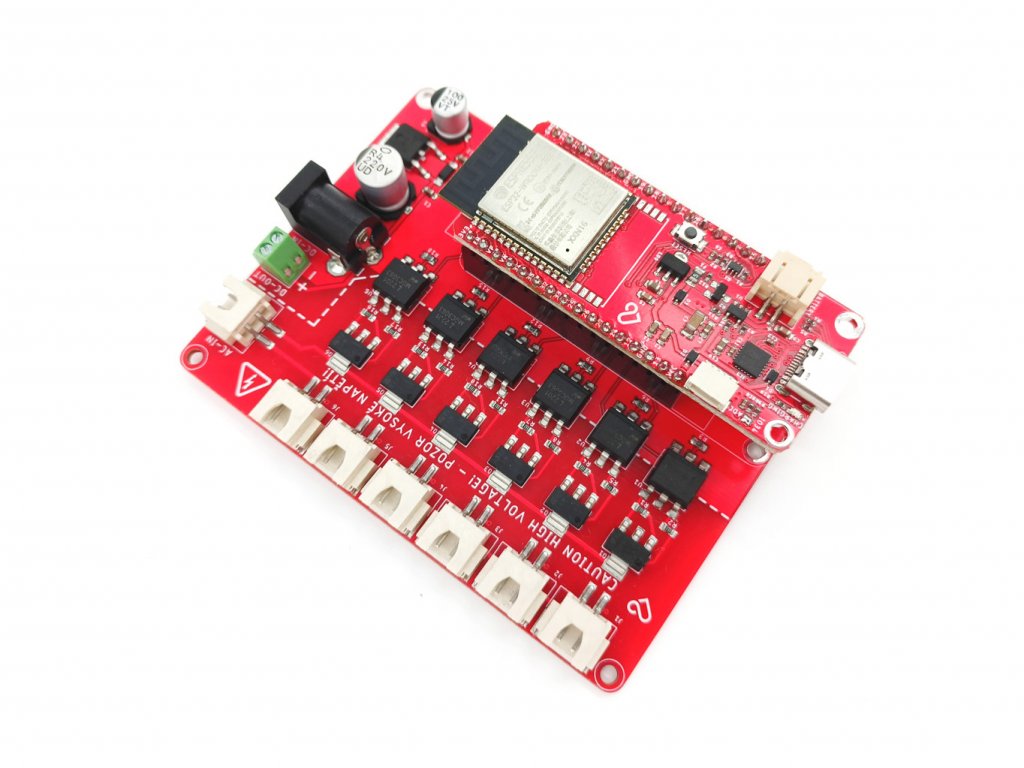

LaskaKit ESP32-DEVKit Neon Shield

Code: LA110032
€11,87 €9,81 excl. VAT
Skladem (28 pcs)
Delivery to:
16/12/2024

LaskaKit ESP32-DEVKit Neon Shield

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

Expansion board (shield) for ESP32-DEVKit, thanks to this expansion board you can easily control up to six channels on which you have connected neon tubes. You can use any colour combination, because they are all powered from the AC input - this voltage can be from 50 to 110 V.

The ESP Neon Shield can also power the LaskaKit ESP32-DEVKit control board itself through the DC coaxial connector.

The EL wire is made up of several layers into which the electrical voltage is fed. Between these layers is a phosphor, which gives you the desired lighting effect.

What else you will need:

Specifications:

  • Input voltage: 7-20V
  • Input voltage for neon tubes: 50-110V
  • Connectors for neon JST-XH-2
  • Connected channels:
    • CH1 - GPIO12
    • CH2 - GPIO13
    • CH3 - GPIO14
    • CH4 - GPIO25
    • CH5 - GPIO26
    • CH6 - GPIO27
  • Size: 86.5x66x15mm

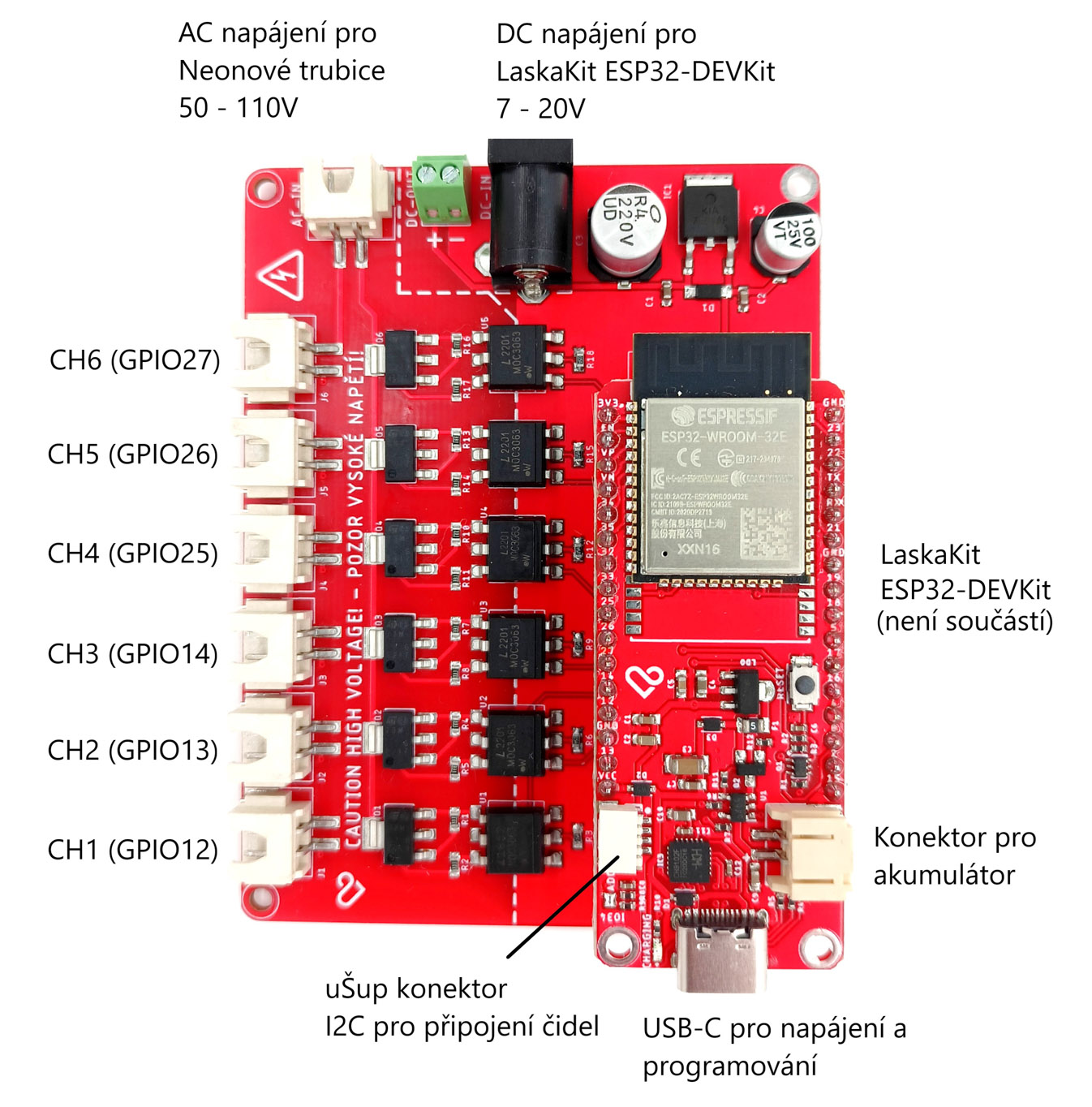

ESP_Neon_Shield_pinout-

Included in delivery:

  • 1pc LaskaKit ESP32-DEVKit Neon Shield

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
  • ESP32-DEVKit is not included.

Additional parameters

Category: ESP and WeMos shield modules
Warranty: 2 years
Weight: 0.03 kg
Shield function: Light

Be the first who will post an article to this item!

Do not fill out this field:
Do not fill out this field:
MM Avatar of author skladem 21/10/2024 19:32
zdravím jen takový dotaz kdy bude tento mudul na skladě? děkuji
Reply
MF Avatar of author skladem 23/10/2024 08:09
Dobrý den, dotazy na naskladnění, prosíme, zasílejte přímo na náš mail, nebudou zbytečně znepřehledňovat diskuzi, která je určená pro technické dotazy a postřehy k danému výrobku.
L Avatar of author potřebné množství kabelů je zaměněno 14/06/2023 16:08
1ks JST-XH-2 to JST SM 2-pin male kabel, 15 cm 1-6ks JST-XH-2 to JST SM 2-pin female kabel, 15 cm Bohužel jsem Vám důvěřoval a objednal špatně :D
Reply
MF Avatar of author potřebné množství kabelů je zaměněno 15/06/2023 11:04
Dobrý den, děkujeme za upozornění, opravil jsem. Chybějící kabely vyřešíme v rámci reklamace.
MM Avatar of author RPi zero 2 W 26/05/2023 13:58
Dobrý den, je možné napájet z 5V výstupu i RPi zero? Předpokládám připojení 12V/4A zdroje...
Reply
MF Avatar of author RPi zero 2 W 26/05/2023 14:21
Dobrý den, to možné není. Proudové zatížení 5V stabilizátoru je max. 1A a RPi Zero vyžaduje cca 2,5A.
