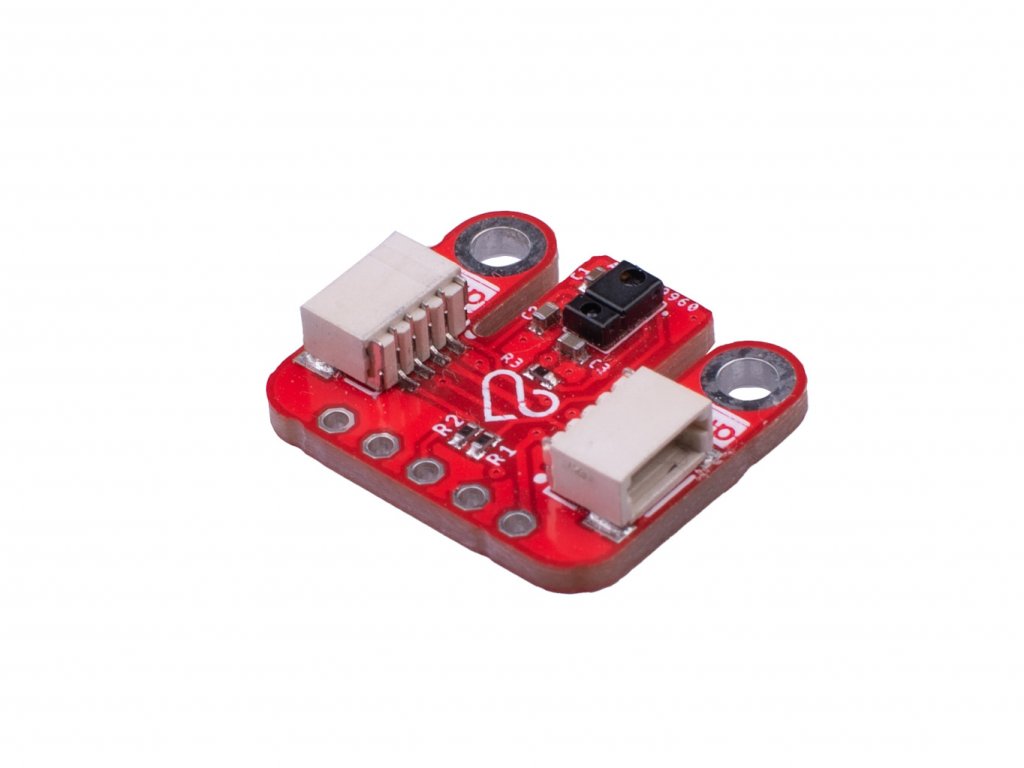

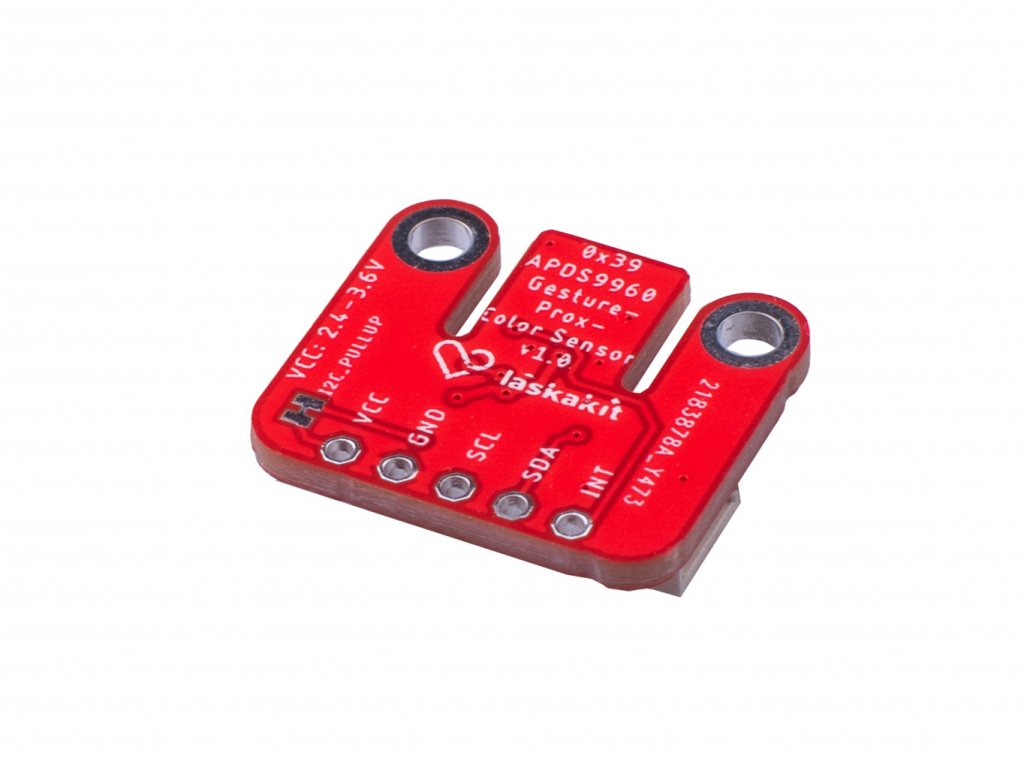

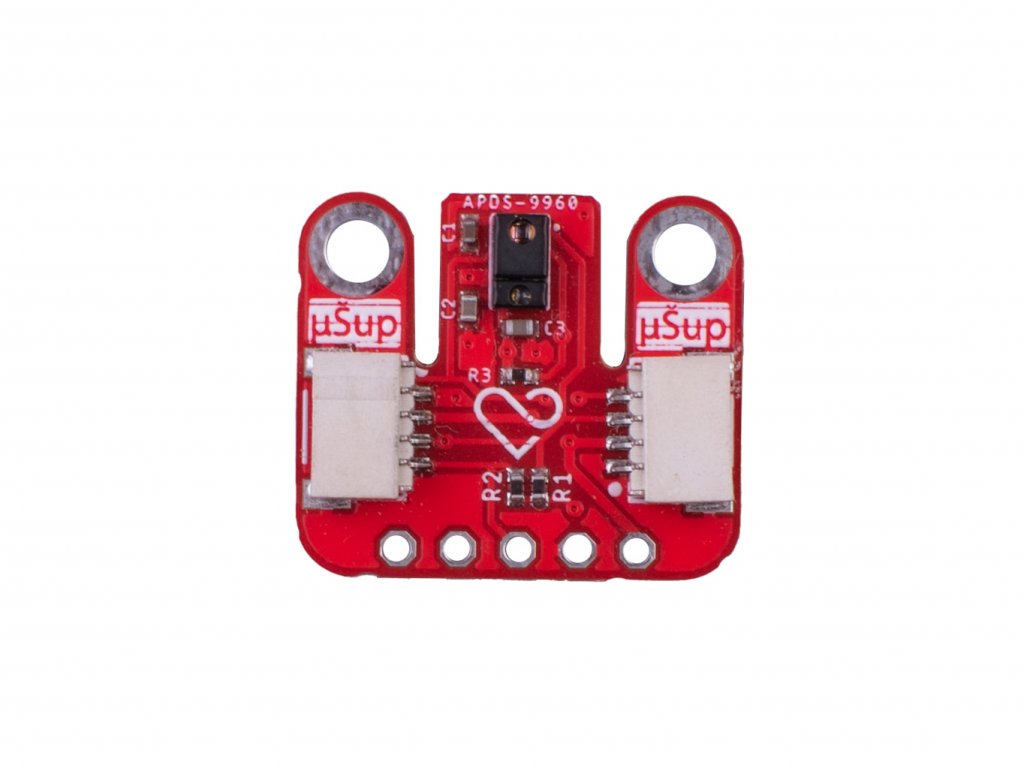

LaskaKit APDS-9960 Proximity and gesture sensor

Product detailed description

One sensor and how much it can do! Detects proximity, recognizes gestures, measures light and recognizes colors - APDS9960. Now also on our module with uSup connectors for easy connection to other modules and boards with ESP32 or ESP8266.

Thanks to the reduction , the module can of course also be connected to other boards such as the popular Arduino Uno, Nano, Micro or RaspberryPi or RockPi.

Our APDS9960-Proximity-Gesture-Sensor module has I2C address 0x39. On the board you will also find our two oŠup connectors. Thanks to them you can connect more and more modules. Which one? For example BME688 - Pressure, Temperature, Humidity and Air Quality Sensor, SGP41 - VOC and Nox Air Quality Sensor and you can display all that data on the 1.3" OLED display.

Specifications:

• RGB Sensor
• Proximity sensor
• Gesture detection
• Detection distance: 10-20cm
• Module power supply: 2.4-3.6V DC
• Interface: I2C (I2C Address: 0x39)

Included in delivery:

• 1pc LaskaKit APDS-9960 Proximity and gesture sensor.
• 1 pc 5 pin strip

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
