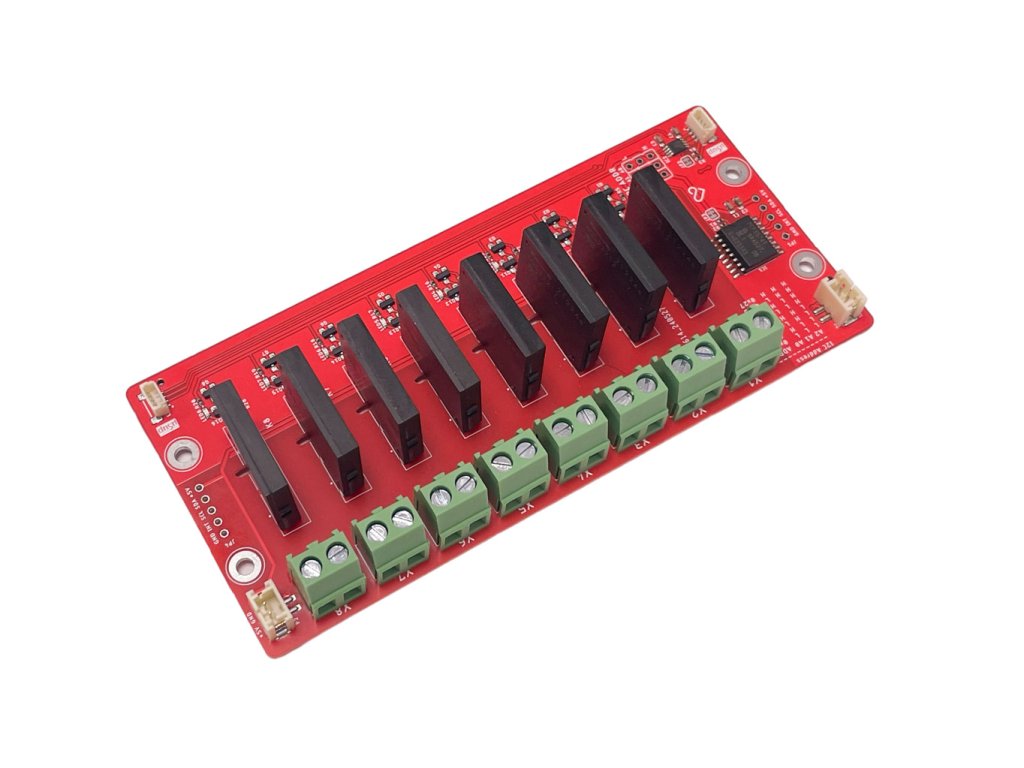

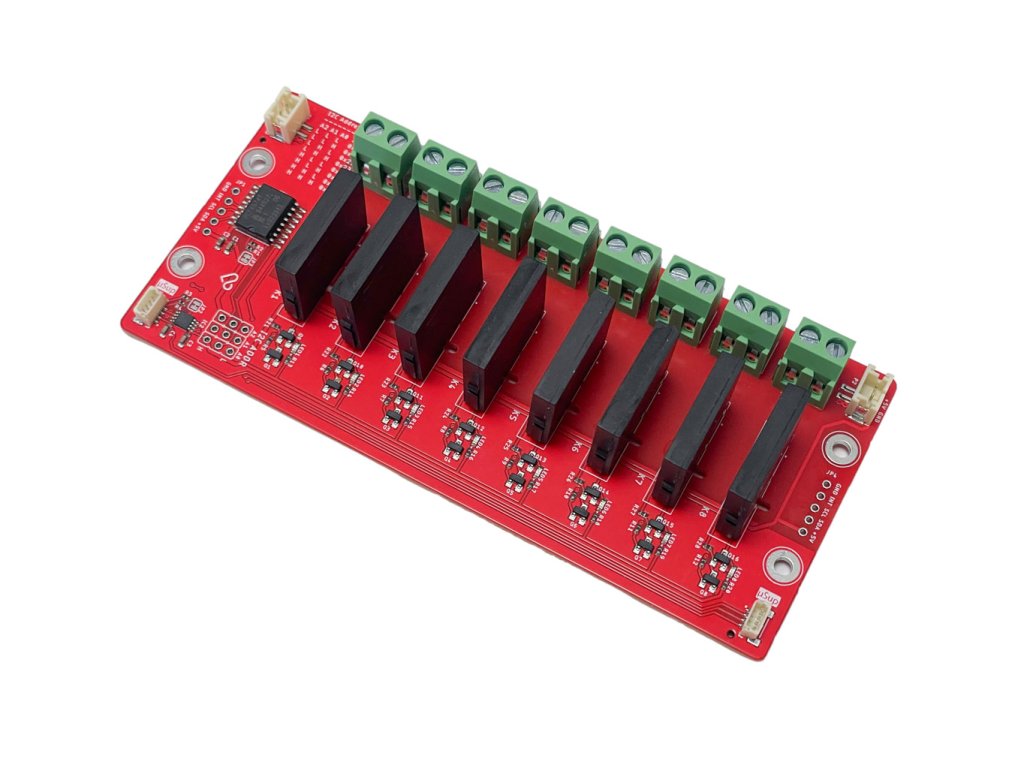

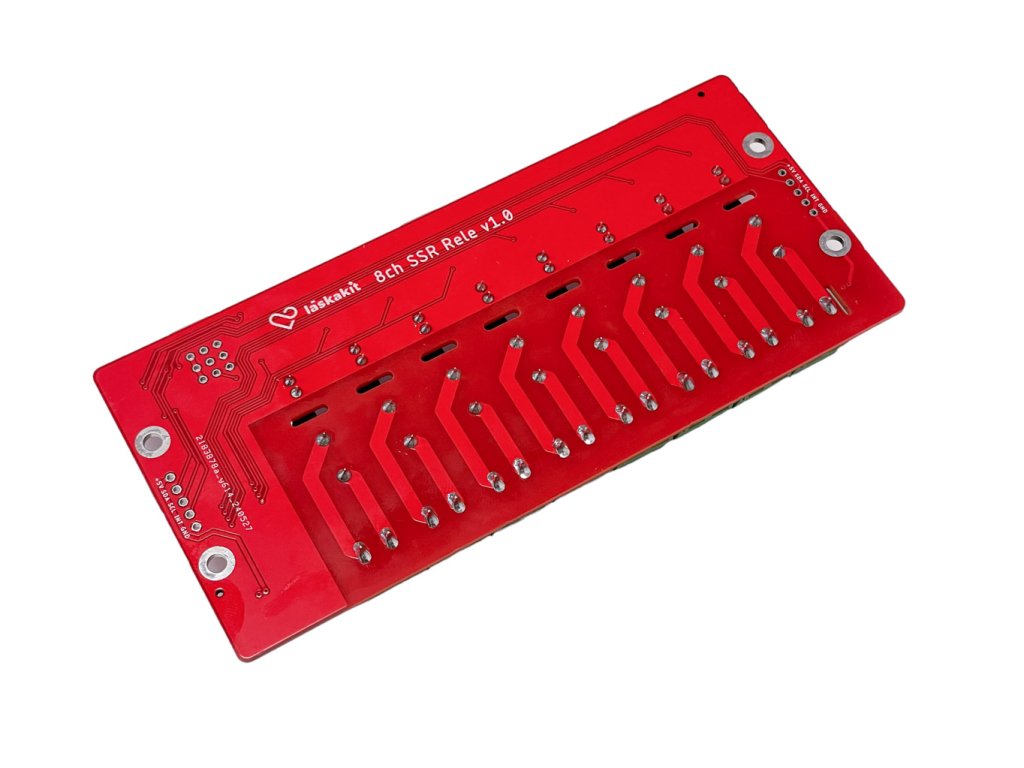

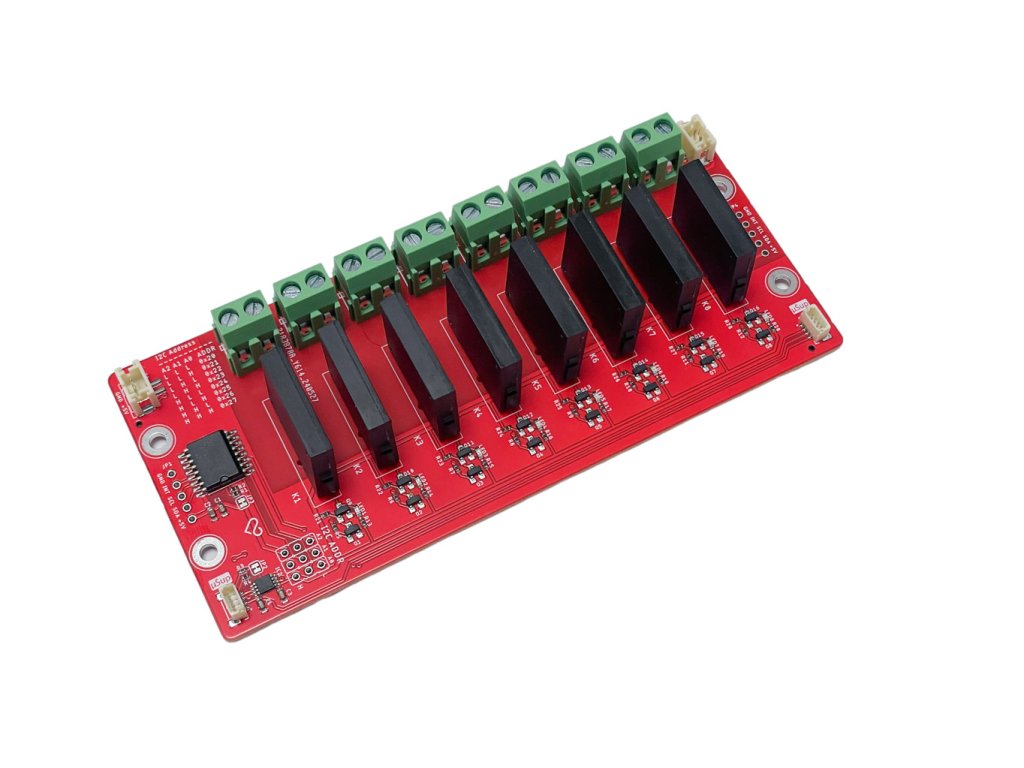

LaskaKit 8-channel SSR Relay module I2C 250VAC 2A

Product detailed description

Instead of traditional mechanical coils, solid-state relays (SSRs) use high-performance solid-state devices such as thyristors and transistors, which enable much faster switching. The module is designed using a high-quality Panasonic AQG22212 relay, which allows the control of 230V AC loads with a maximum current of 2A. The µŠup connector makes this relay easy to integrate with our boards.

Specifications:

• Relay: Panasonic AQG22212
• Connection:
  • 5V system (Arduino): Data and power supply: 5V DC pin bar
  • 3.3V system (ESP, STM32): data: µSup, power: JST-PH-2
• Power supply:
  • Via pin rail or power connector: 5V DC
• Transmission voltage range: 75 - 264 VAC 50/60 Hz
• Rated voltage: 100 - 240 VAC 50/60 Hz
• Inrush current: 0.02 to 2 A
• Leakage current: 1.5 mA max (at 200 VAC)
• Insulation resistance: 1,000 MΩ min. (at 500 VDC)
• Operating temperature: -30 ~ 85℃
• Operating humidity: 45% - 85%RH
• Weight: 85g
• Dimensions: 133x60x 24 mm

Included in delivery:

• 1pc LaskaKit 8-channel SSR Relay module I2C 250VAC 2A

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
