Capacitive fingerprint sensor FPC1020AM with memory of 500 fingerprints

Code: LA131105
€45,71 €37,78 excl. VAT
Momentálně nedostupné
The item has been sold out…

Capacitive fingerprint scanner that lets you biometrically secure your project.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

Secure your project with biometrics - this ubiquitous optical fingerprint scanner adds fingerprint detection
and verification super simple. Connect to any microcontroller or system via UART.

The principle of operation of the capacitive reader is based on the use of the capacitance difference between the sensor plate and the finger surface (elevations and depressions). The sensor represents one plate of the capacitor and the other plate is interpreted by individual locations on the finger. The impression is thus obtained from the pixels in digital form. To read the image, the finger is placed on a sensitive surface equipped with a large number of electrodes. These convert the fingerprint capacitively into a digital image, which is further processed. The papillary lines are more adjacent to the substrate than the gaps between them, so they have a higher capacitive resistance.

Specifications:

  • Sample comparison: <0.2s
  • Capacity: 500 prints
  • Template files: 512 bytes
  • Interface: UART (TTL logic level), USB
  • Power supply: 4.2 to 6.0V
  • Operating current: <40mA
  • Standby current: 38uA
  • Temperature: -20°C to 50°C
  • Relative humidity: 10% RH - 90% RH (non-condensing)
  • Window area: 10.5x11.5mm
  • Plate dimensions: 33.4x20.4x3mm

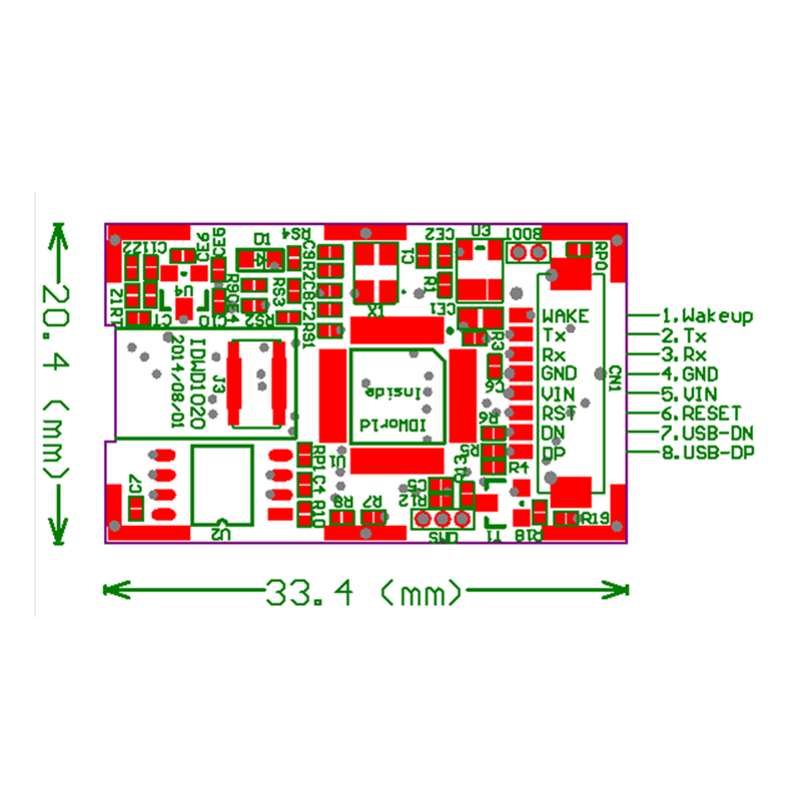

FPC1020AM _module

Included in delivery:

  • 1pc Capacitive fingerprint sensor FPC1020AM with 500 fingerprint memory
  • 1pc USB cable
  • 1pc UART cable

Remark:

This product is not a standalone functional unit and may require professional installation.

Additional parameters

Category: Biometric Sensors — Heart Rate & Fingerprint Sensors
Warranty: 2 years
Weight: 0.005 kg
Output: Digital, UART
Sensor type: Finger-print
The item has been sold out…

Be the first who will post an article to this item!

Do not fill out this field:
Do not fill out this field:
J Avatar of author datasheet 06/03/2023 14:54
tento všudypřítomný „optický“ snímač otisků prstů, nema byt kapacitni? Byla by od nej i nejaka jina dokumentace nez letak? Treba komunikacni protokol, pinout?
Reply
MF Avatar of author datasheet 07/03/2023 08:28
Dobrý den, podařilo se nám najít trochu více podrobností a tak jsme je přidali i do popisu zboží.
