Calibration and demonstration board for shortyPen
Code: LA250008
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Related products
Product detailed description

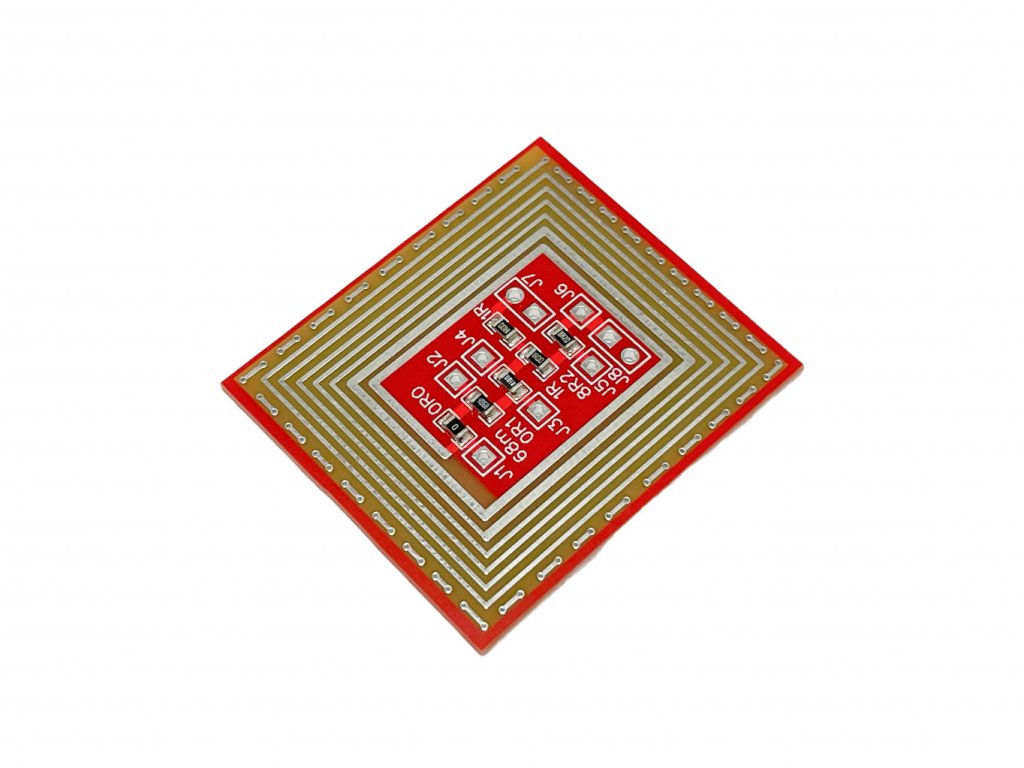

Calibration and demonstration board for short-circuit finder kit, by @JiriDobry3
The short-circuit finder is a high-resolution milliohmmeter with a resolution of 0.1mΩ over a range of 0 Ω to 3.5Ω and then 10mΩ to 10Ω. This high resolution is able to distinguish even 1mm of resistance on the PCB and thus locate the short circuit with high accuracy.
Author: @JiriDobry 3
Specifications:
- ShortyPen calibration:
- 0R = J1-J2
- 1R = J4-J5
- 2R = J7 (two-pin)
- 8R2 = J5-J6
- Dimensions: approx 39x34x3mm
Included in delivery:
- 1pc Calibration and Demonstration Plate for ShortyPen
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | DIY Elektronic Kits |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.005 kg |
3,5
2 ratings
Add a rating
5
4
3
2
1
2
LG
Lukas Gebauer
Lukas Gebauer
Pro kalibraci ShortyPenu natolik nezbytná věc, že nechápu, proč není součástí stavebnice?
Desdka samotná je naprosto neintuitivní. Posetá měřícími piny, ale aniž byste si k tomu otevřeli schéma, tak nemůžete tušit, co kde máte naměřit.
Takže třeba kalibrace ShortyPenu má probíhat takto:
0R = J1-J2
1R = J4-J5
2R = J7 (dvoupinový)
8R2 = J5-J6
5
KP
Karel Princ
Karel Princ
vše potřebné ke kalibraci tu najdeš
