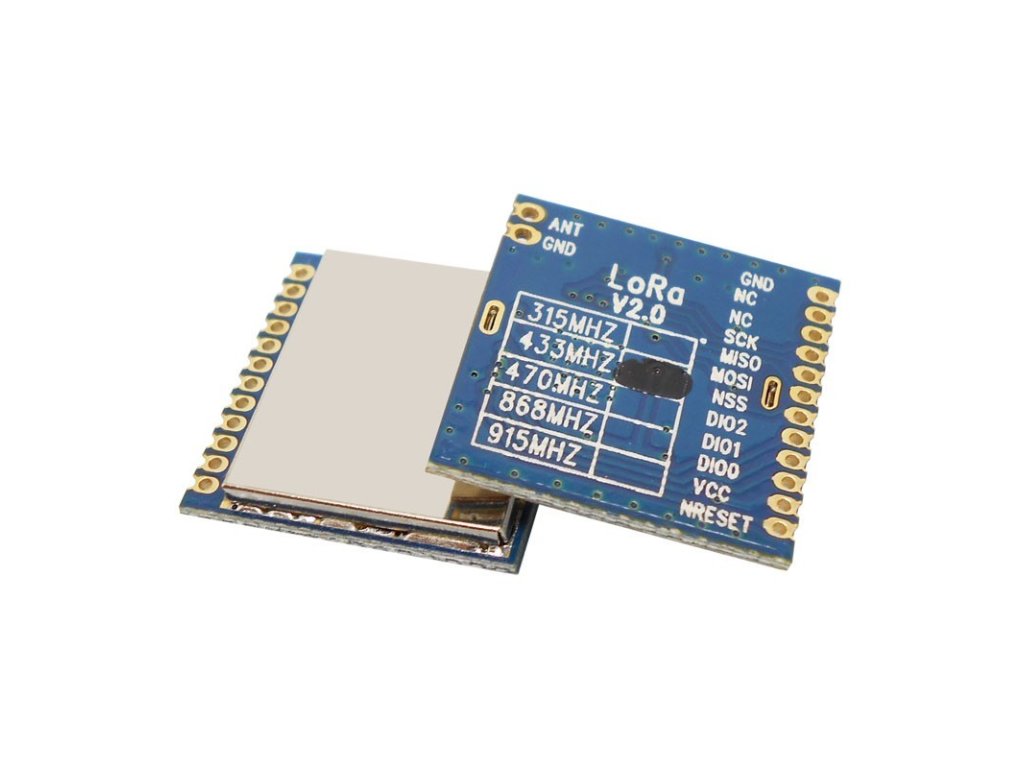

NiceRF 868MHz LoRa LPWAN Module SX1276
Code: LA162011
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description
It is a radio module. For data transmission over the IOT CRA, it is necessary to connect to a microcontroller that will take care of packet transmission, encoding, authentication and more.
Specifications:

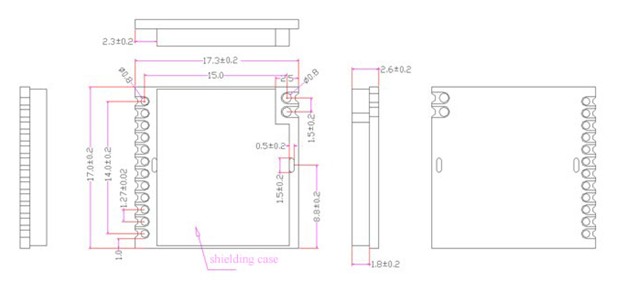

| Parametry | Min | Type | Max | Unit | Condition |
| Working conditions | |||||
| Working voltage | 1.8 | 3.3 | 3.7 | In | |
| Temperature range | -40 | 85 | ? | ||
| Consumption | |||||
| RX current | 10.8 | mA | High performance mode | ||
| TX current | 100 | mA | @ 20dBm | ||
| Current in dir. sleep | <0.2 | uA | |||
| Parametry | |||||
| Frequency range | 403 | 433 | 463 | MHz | @ 433MHZ |
| 838 | 868 | 898 | MHz | @ 868MHZ | |
| Modulation | 1.2 | 300 | Kbps | FSK | |
| 0.018 | 37.5 | Kbps | LoraTM | ||
| Output power range | -1 | 20 | dBm | ||
| Sensitivity | -123 | dBm | @ FSK data=1.2kbps,Fdev=10kHZ | ||
| -139 | @ Lora BW=125KHz_SF = 12_CR=4/5 | ||||
| Pin | C. pin | Description |
| 1 | GND | power ground |
| 2 | TXEN | Antenna switch control, |
| Tx: Txen =1, Rxen =0; | ||
| Rx: Txen = 0, Rxen = 1; | ||
| 3 | RXEN | Sleep : Txen = Rxen = 0 |
| 4 | SCK | Serial clock for SPI interface |
| 5 | MISO | Serial MISO for SPI interface |
| 6 | MOSI | Serial MOSI for SPI interface |
| 7 | NSS | SPI enabled |
| 8 | DIO2 | Digital I/O |
| 9 | DIO1 | Digital I/O |
| 10 | DIO0 | Digital I/O |
| 11 | VCC | Positive power supply 3.3V |
| 12 | NRESET | Reset input |
| 13 | ANT | Connect with 50 Ω coaxial antenna |
| 14 | GND | power ground |
Included in delivery:
- 1pc NiceRF 868MHz LoRa LPWAN Module SX1276
- 1pc Antenna
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | 868MHz RF Modules |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.002 kg |
| The item has been sold out… | |
Be the first who will post an article to this item!
Add a rating
F
Praktická zkušenost
Frboc
Praktická zkušenost
Frboc
Modul funguje, jak má - podařilo se mi ho zprovoznit v LoraWan síti The Things Network v kombinaci s vývojovou deskou Wemos D1 Mini.
Škoda, že není prodávan na breakout desce (příp. i s anténním konektorem) anebo ve formě shieldu .
Bohužel jsem si při objednání nevšiml, že se jedná se o miniaturní modul s roztečí vývodů 1,2mm; pájení v amatérských podmínkách bylo velmi obtížné. Nakonec se však podařilo :)
