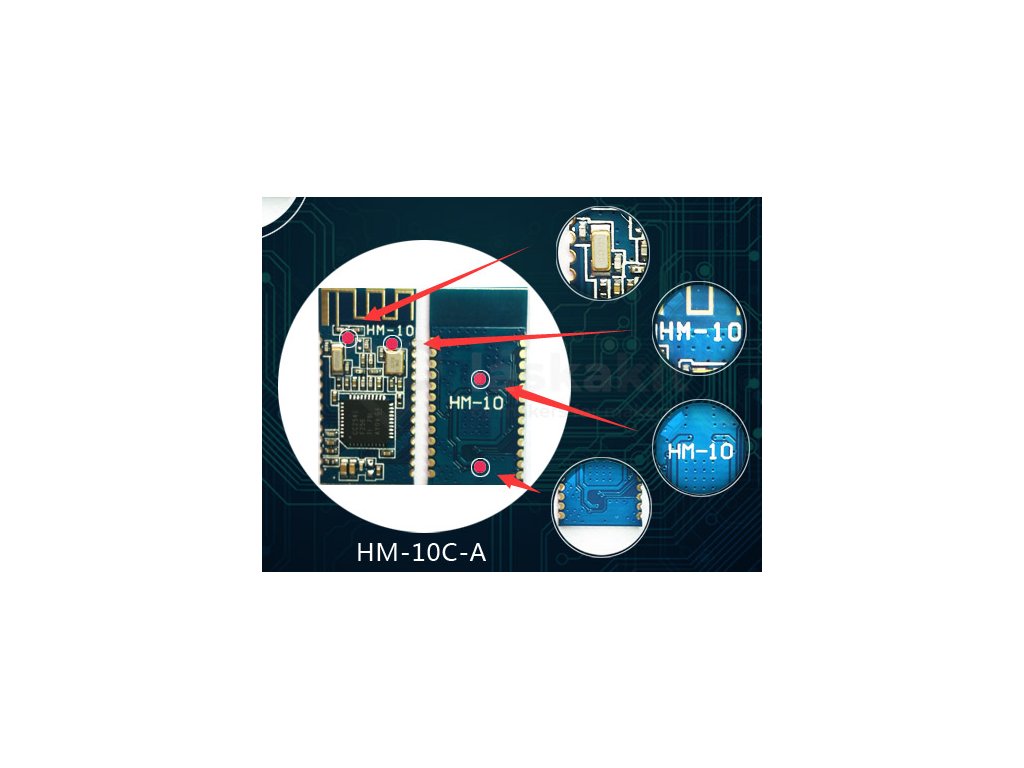

Huamao HM-10C-A orig. Bluetooth V4.0 BLE module CC254x

Product detailed description

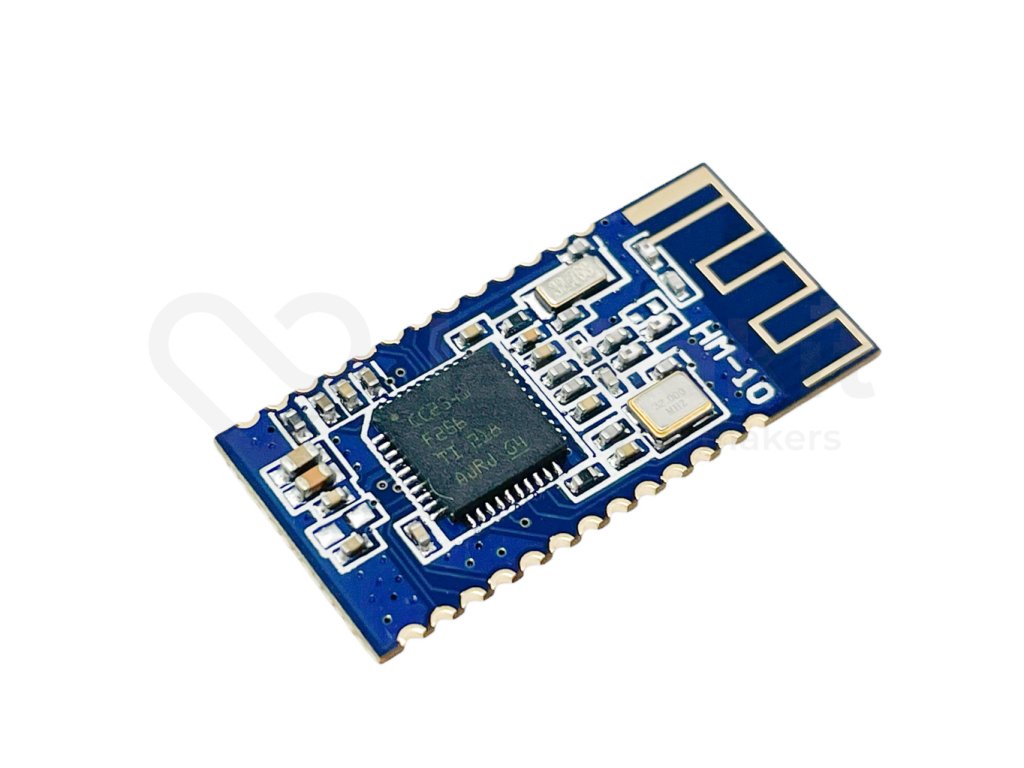

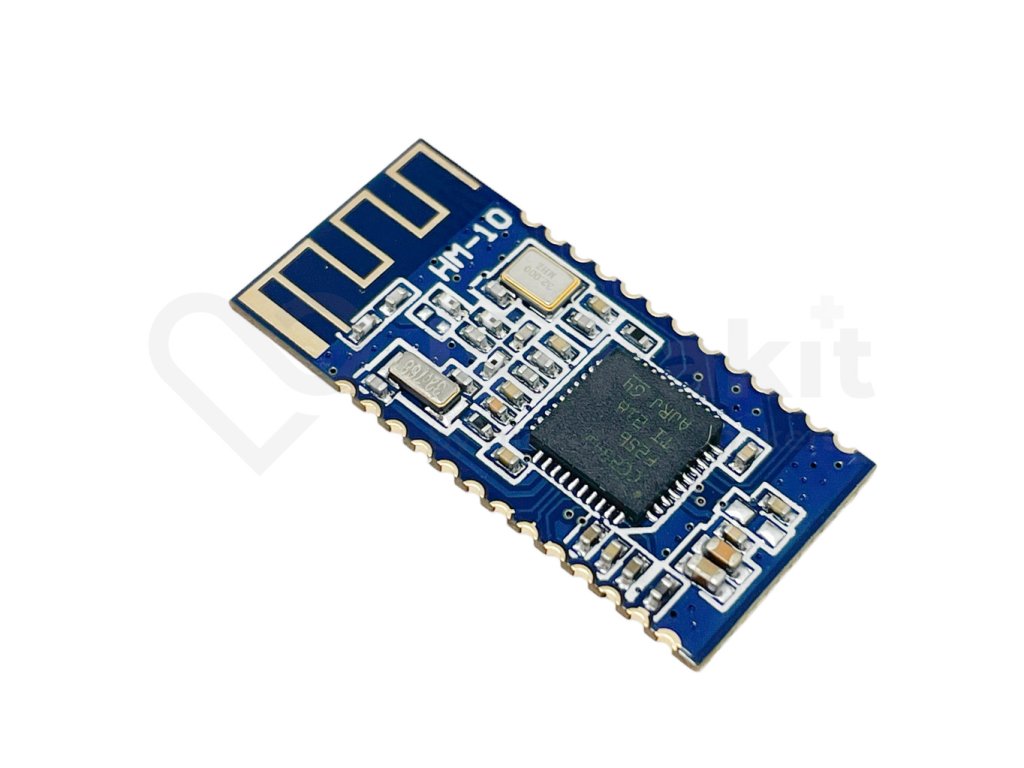

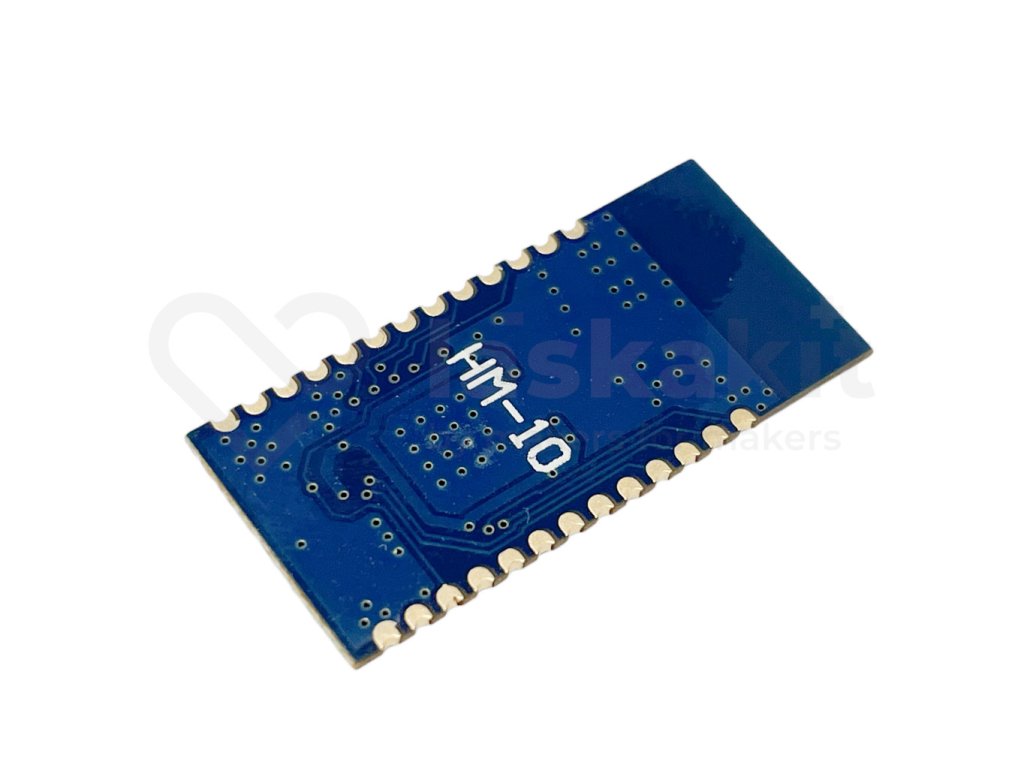

The HM-10 is a small 3.3V SMD Bluetooth 4.0 BLE module based on the TI CC2540 or CC2541 Bluetooth SoC (System On Chip). The HM-10 is manufactured by Jinan Huamao and is one of many Bluetooth devices produced by this company.

Specifications:

• Bluetooth version: V4.0, BLE
• Firmware: V610/707
• Chip: CC2540 or CC2541
• Power supply and logic: 3.3V
• Range max. 60m
• Default PIN: 000000
• Default name: HMSoft
• Dimensions: 13x27x2.2mm
• Weight: 1g

Included in delivery:

• 1pc Huamao HM-10C-A orig. Bluetooth V4.0 BLE module CC254x

Notes:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
