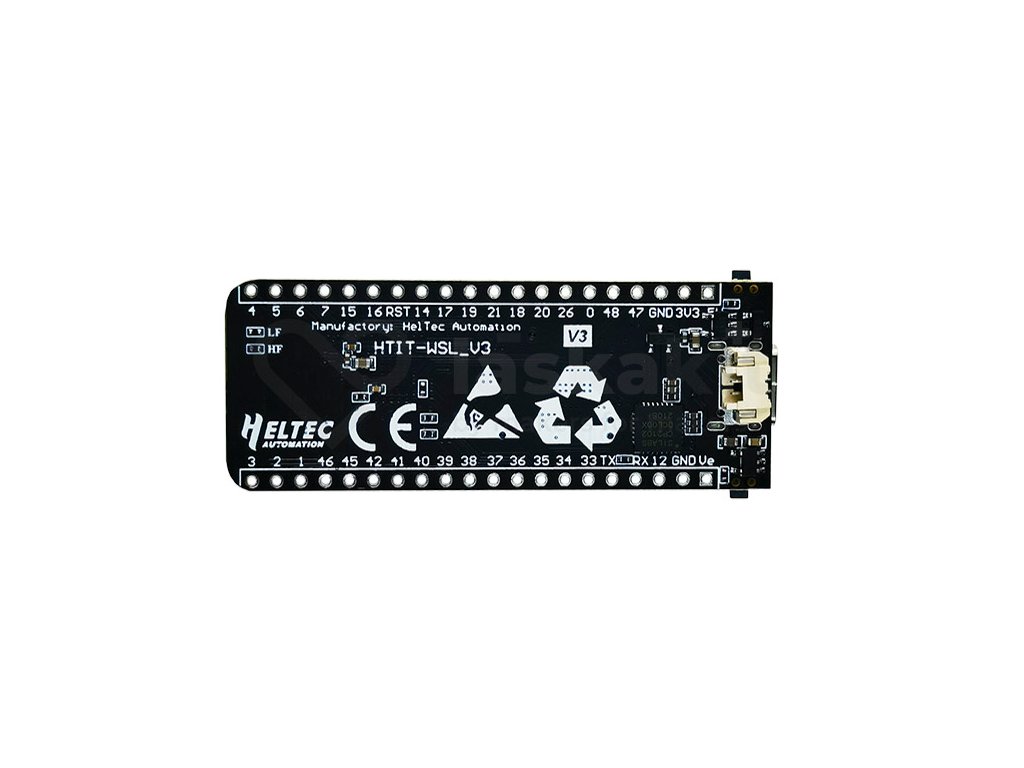

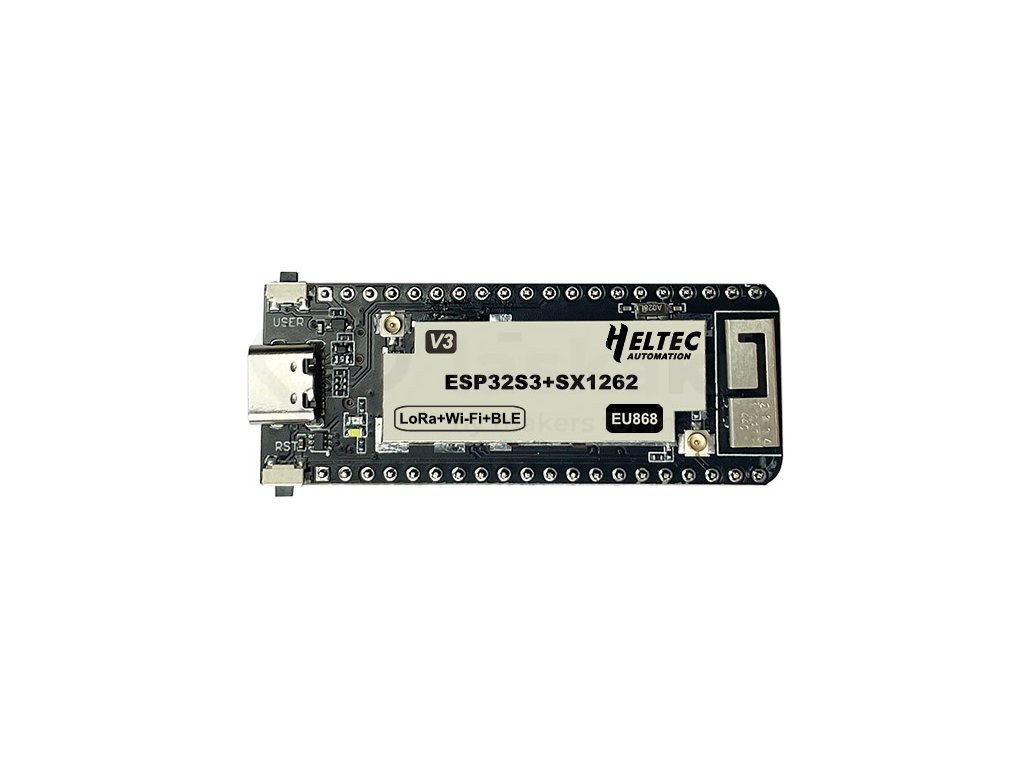

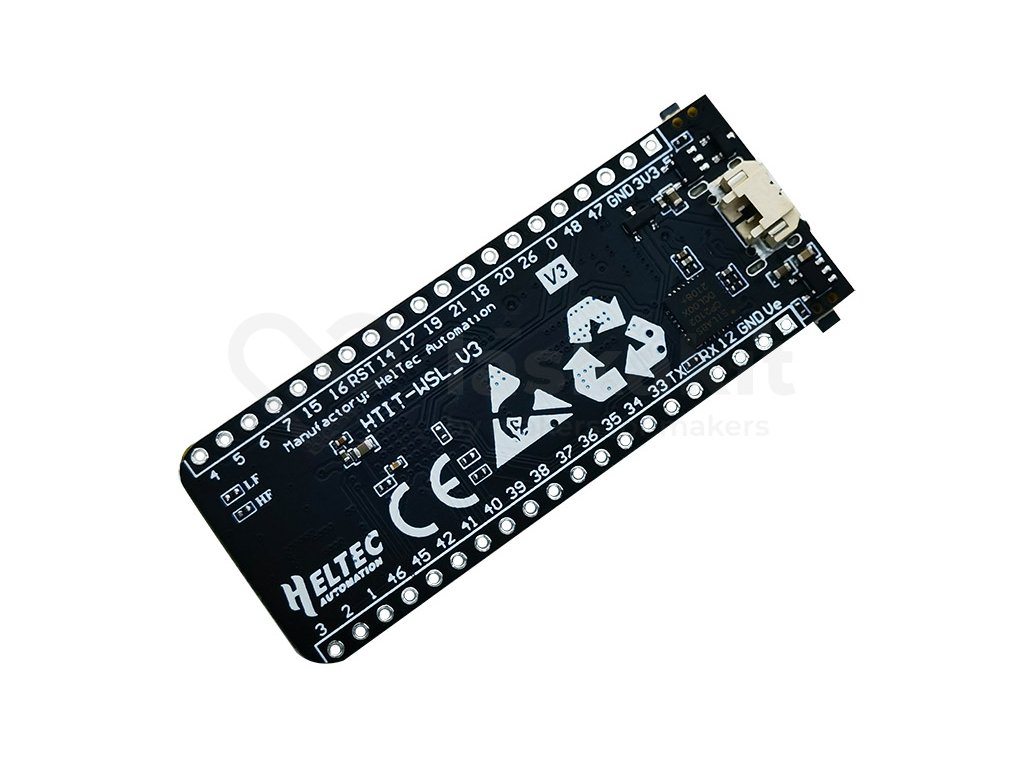

Heltec Wireless Stick Lite V3.1 868Mhz SX1262 WiFi Module
Code: LA100103
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description
Heltec Wireless Stick Lite V3.1 868MHz SX1262 WiFi module is a highly integrated development module designed for wireless communication and IoT (Internet of Things) applications. This module combines WiFi and LoRa technologies, making it a versatile and powerful tool for a variety of projects.
Specifications:
| Parameters | Description |
|---|---|
| Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
| LoRa Chipset | SX1262 |
| USB to Serial Chip | CP2102 |
| Frequency | 863~928MHz |
| Max. TX Power | 21dB ± 1dB |
| Max. Receiving sensitivity | -134dBm |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1 + 9*ADC2; 8*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash |
| Battery | 3.7V lithium battery power supply and charging |
| Operating temperature | -20 ~ 70 ℃ |
| Dimensions | 58.08 * 22.6 * 8.2 mm |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0); 2*20*2.54 Header Pin |
Delivery components:
- 1pc Heltec Wireless Stick Lite V3.1 868Mhz SX1262 WiFi Module
- 1pc Cable with battery connector
- 1pc Cable for antenna
- 1pc Antenna
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | ESP Development Boards |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.03 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 12 |
| PWM pins: | 12 |
| ADC pins: | 7 |
| Frequency: | 40MHz |
| Flash memory: | 4MB |
| SRAM memory: | 520kB |
| EEPROM memory: | Ne |
| Connector with battery charger: | Yes |
| Microcontroller: | ESP32-S3 |
| Converter: | CP2102 |
| Bluetooth: | Yes |
| WiFi: | Yes |
-
