    Heltec Wireless Paper v1.1 868Mhz SX1262 WiFi e-Paper Module

    Code: LA100068
    Meshtastic
    Not rated
    Brand: Heltec
    LaskaKit heltec wireless paper v1 1 868mhz sx1262 wifi e paper modul 1
    €27,85 €23,02 excl. VAT
    In stock (16 pcs)
    Delivery to:
    14/02/2025

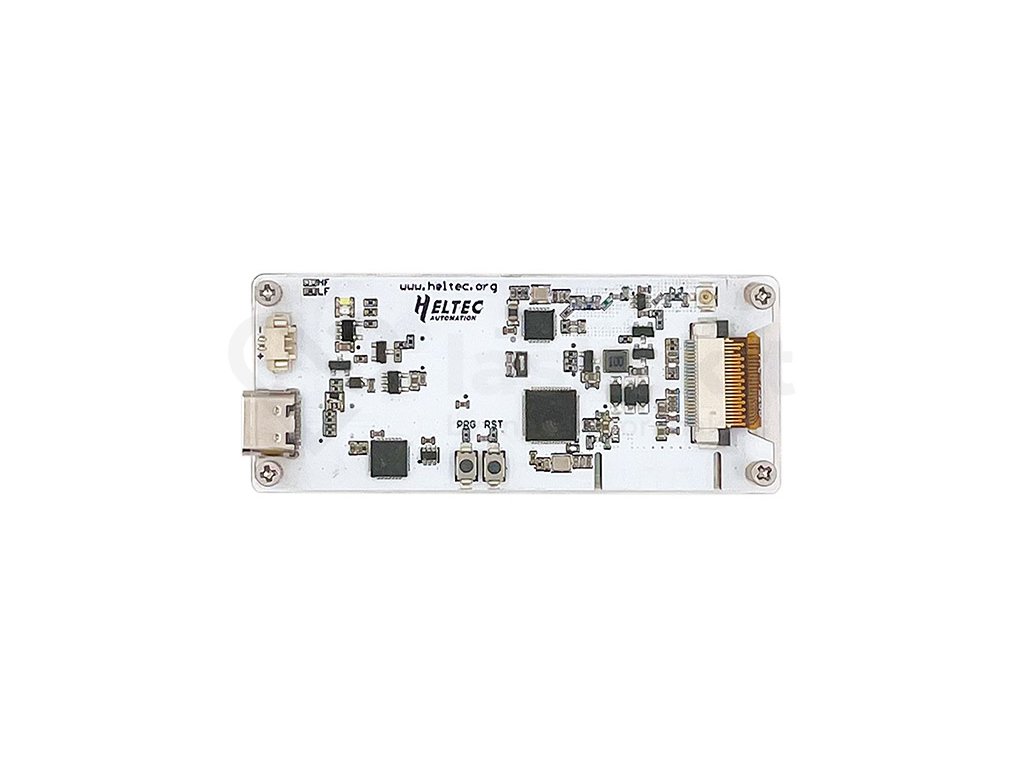

    Wireless Paper is a development kit with E-Ink display that offers multiple wireless control methods. In cooperation with sample programs and development tools, users can control the display via Bluetooth, Wi-Fi and LoRa.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    Wireless Paper is a development kit with E-Ink display that offers multiple wireless control methods. In cooperation with sample programs and development tools, users can control the display via Bluetooth, Wi-Fi and LoRa.

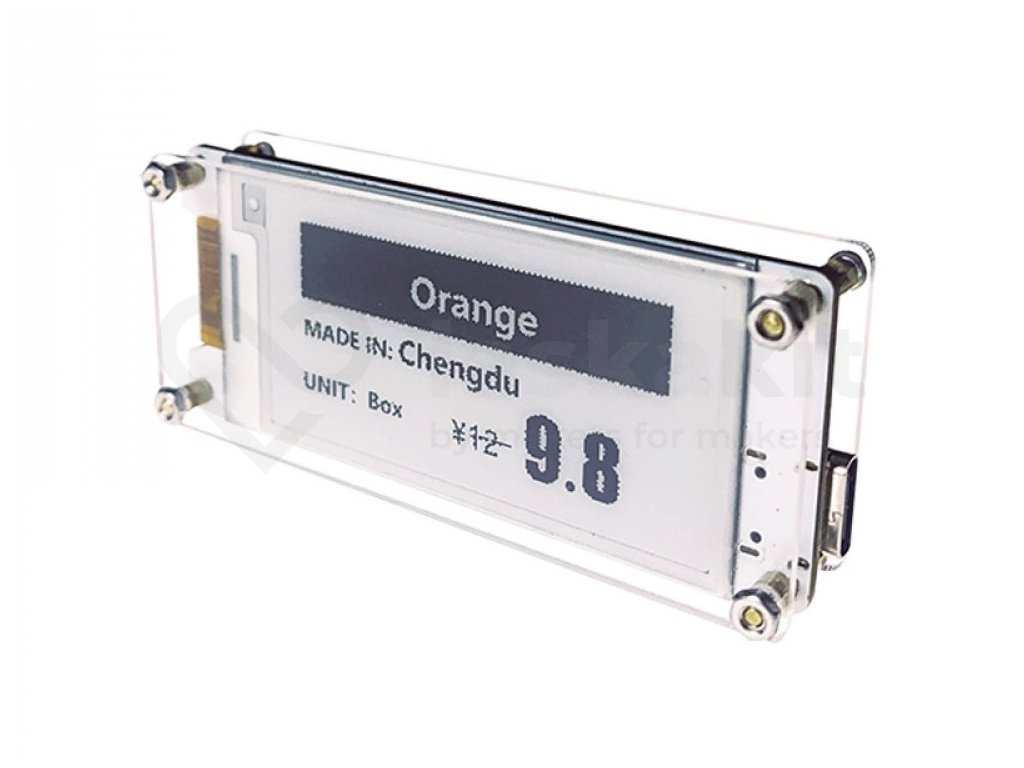

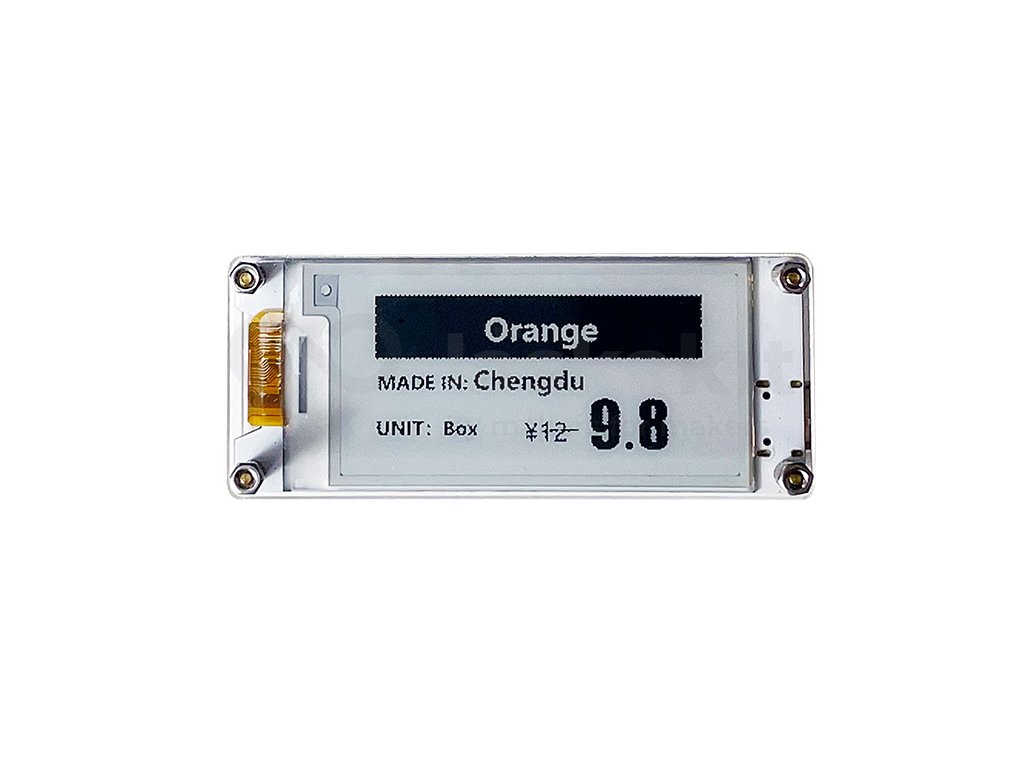

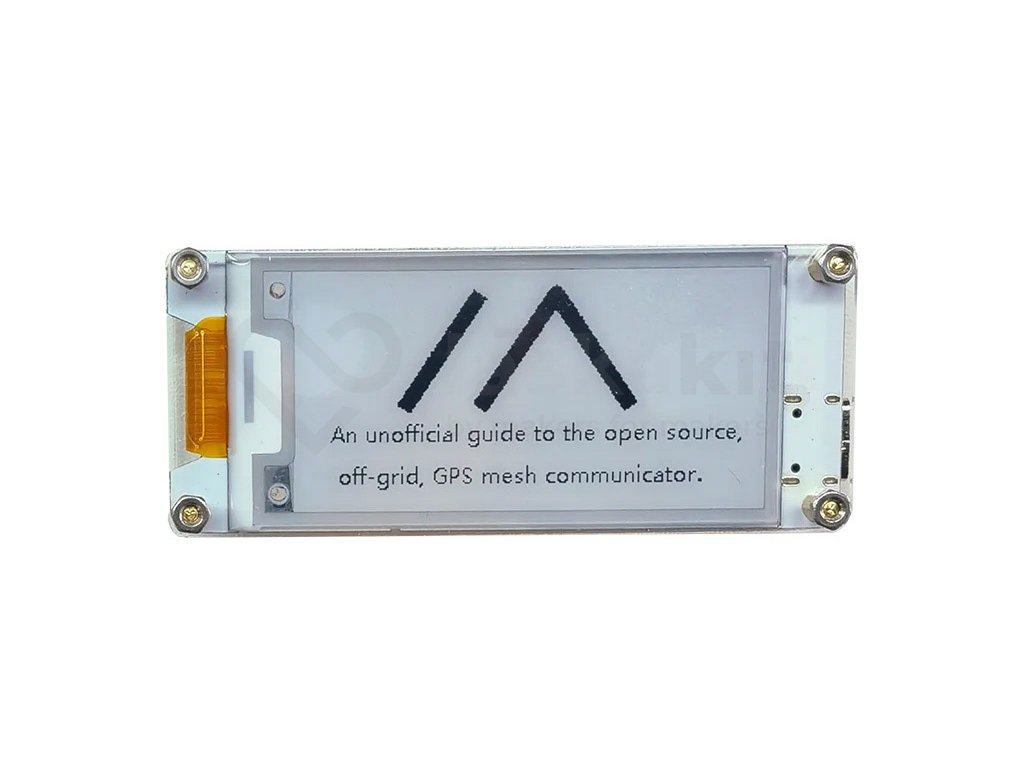

    This board features a default 2.13-inch black and white E-Ink display that allows for continuous display for 180 days after a power failure. It can be used to develop applications such as electronic labels and identification tags.

    Specifications:

    Parameters Description
    Version v1.1
    MCU ESP32-S3FN8
    LoRa Chipset SX1262
    Frequency 863~928MHz
    Power Supply lithium battery, USB Type-C
    Supply Voltage 3~5v
    Operating Temperature 0~50℃
    Operating Humidity 35~70%
    Display Resolution 122(H)x250(L) Pixel
    Connection Method Wi-Fi, LoRa, BLE
    Screen Size 2.13 Inch
    Active Area 23.705×48.55
    Pixel Pitch 0.1942X0.1942
    Pixel Configuration Square

    Delivery components:

    • 1pc Heltec Wireless Paper v1.1 868Mhz SX1262 WiFi e-Paper Module
    • 1pc Cable with battery connector
    • 1pc Cable for antenna
    • 1pc Antenna

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: ESP Development Boards
    Warranty: 2 years
    Weight: 0.057 kg
    Type: ESP
    Logical levels: 3.3V
    I/O pins: 12
    PWM pins: 12
    ADC pins: 7
    Frequency: 40MHz
    Flash memory: 4MB
    SRAM memory: 520kB
    EEPROM memory: Ne
    Connector with battery charger: Yes
    Microcontroller: ESP32-S3
    Converter: CP2102
    Bluetooth: Yes
    WiFi: Yes
