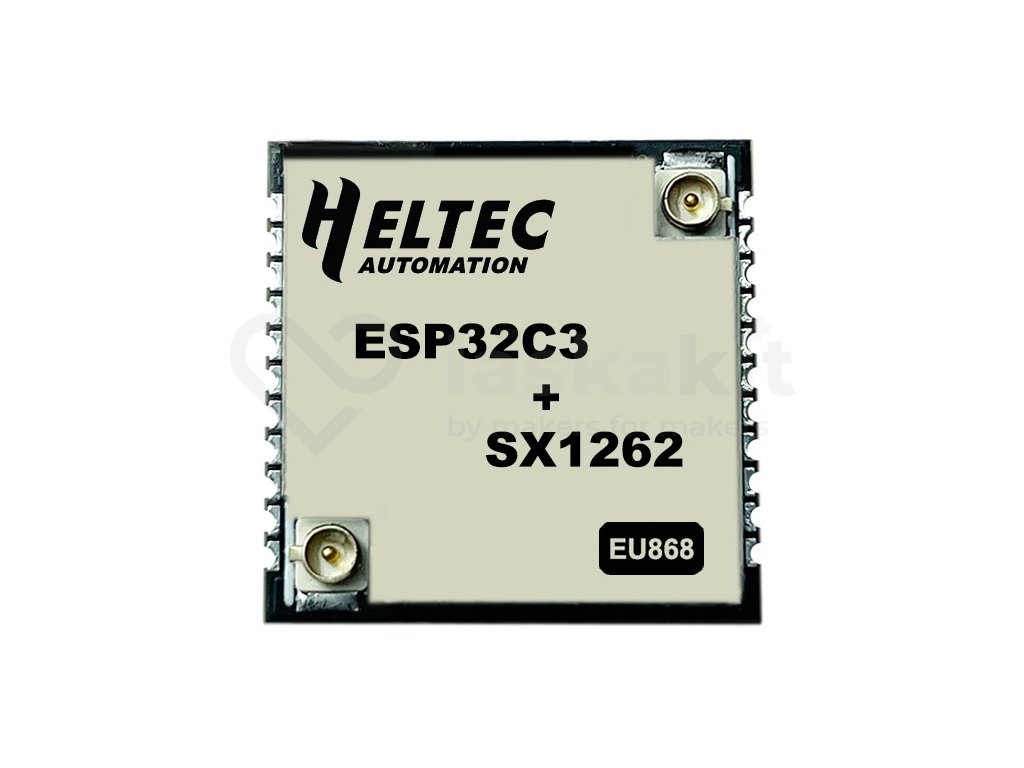

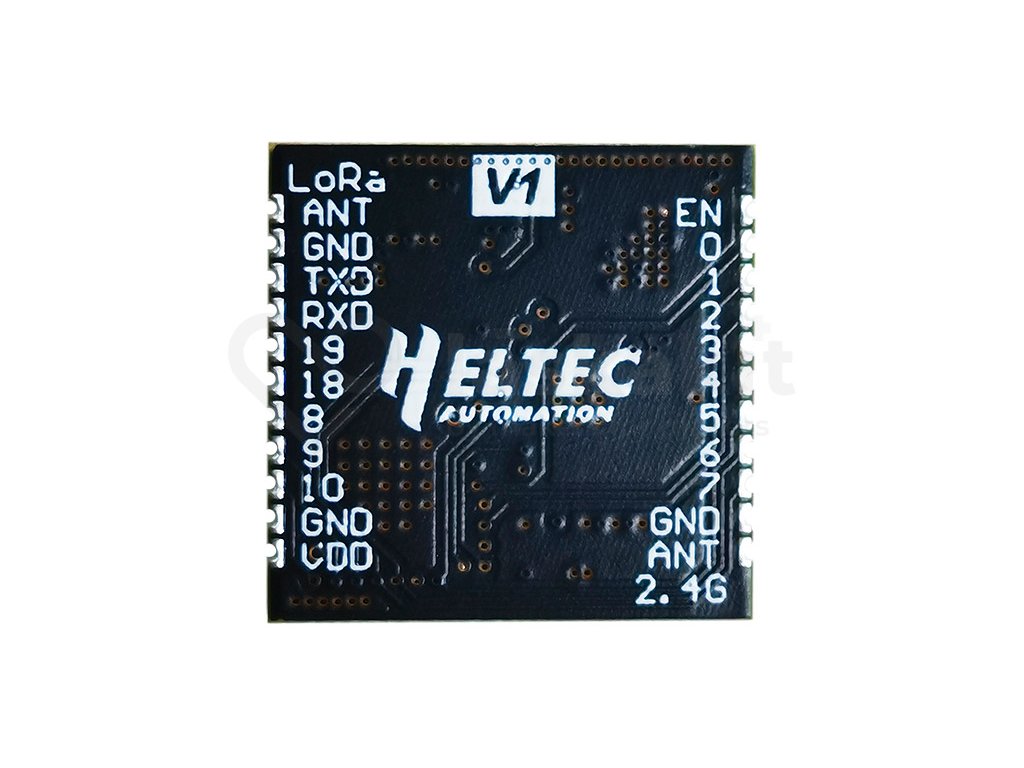

Heltec HT-CT62 ESP32-C3 + SX1262

Product detailed description

HT-CT62 is a LoRa/LoRaWAN node module with long range, low power consumption and high sensitivity. The module consists of an ESP32-C3FN4 (32-bit RISC-V based microprocessor) and a Semtech LoRa transmitter (SX1262). The module integrates 2.4 GHz Wi-Fi and dual-mode LoRa wireless communication. HT-CT62 is a small module, ideal for smart cities, smart farms, smart homes and IoT projects.

Properties:

• Microprocessor: ESP32-C3FN4 (32-bit, RISC-V architecture, main frequency up to 160 MHz)- Integrated WiFi network: onboard Wi-Fi, IPEX connector
• Development environment support Arduino
• LoRaWAN 1.0.2 support
• Ultra low power consumption: 10uA in deep sleep
• Design with 1.27 mm pitch
• Good impedance matching and long range communication

Specifications :

Included in delivery:

• 1pc Heltec HT-CT62 ESP32-C3 + SX1262

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
