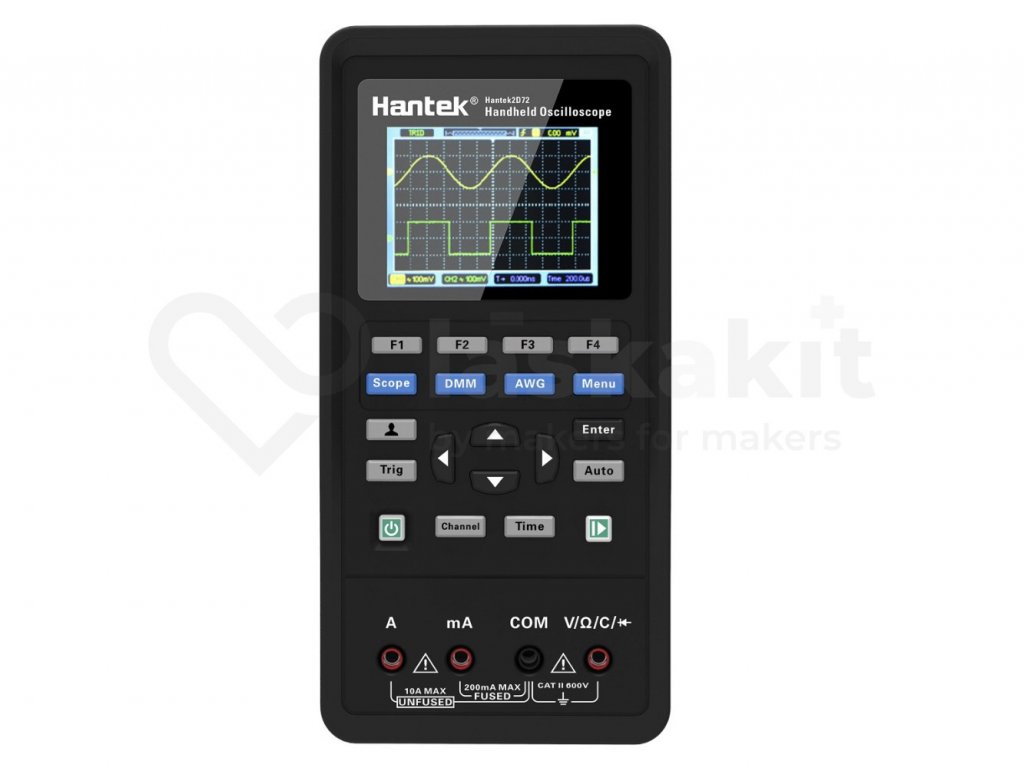

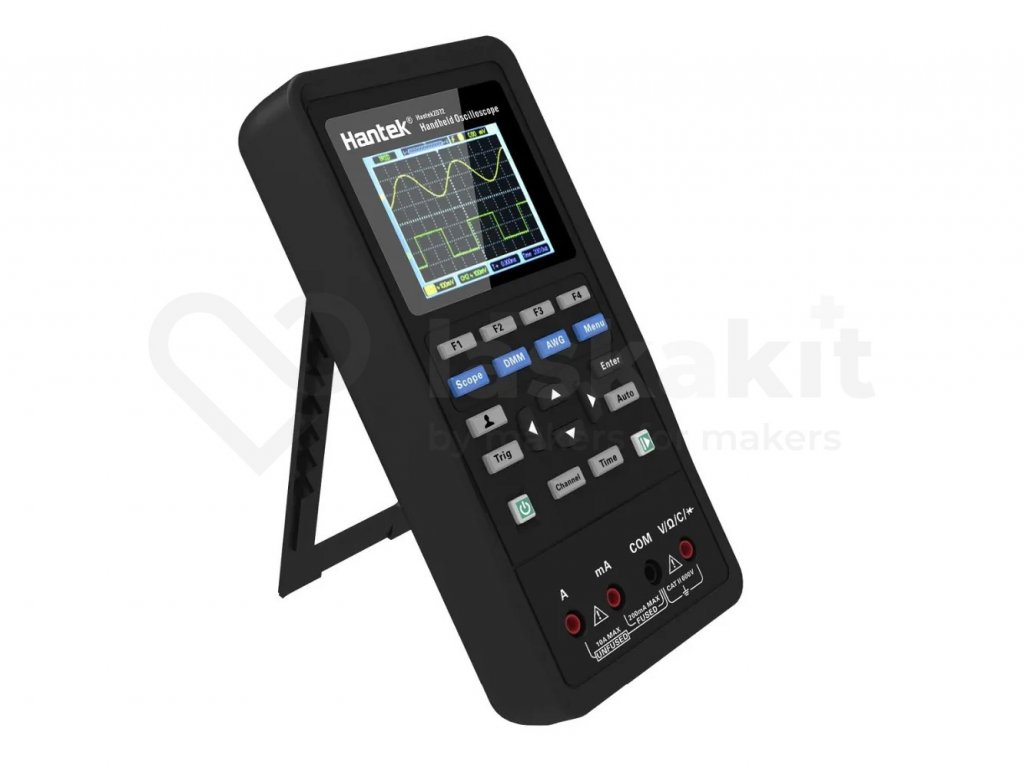

Hantek 2D72 Oscilloscope 2x70MHz and multimeter

Product detailed description

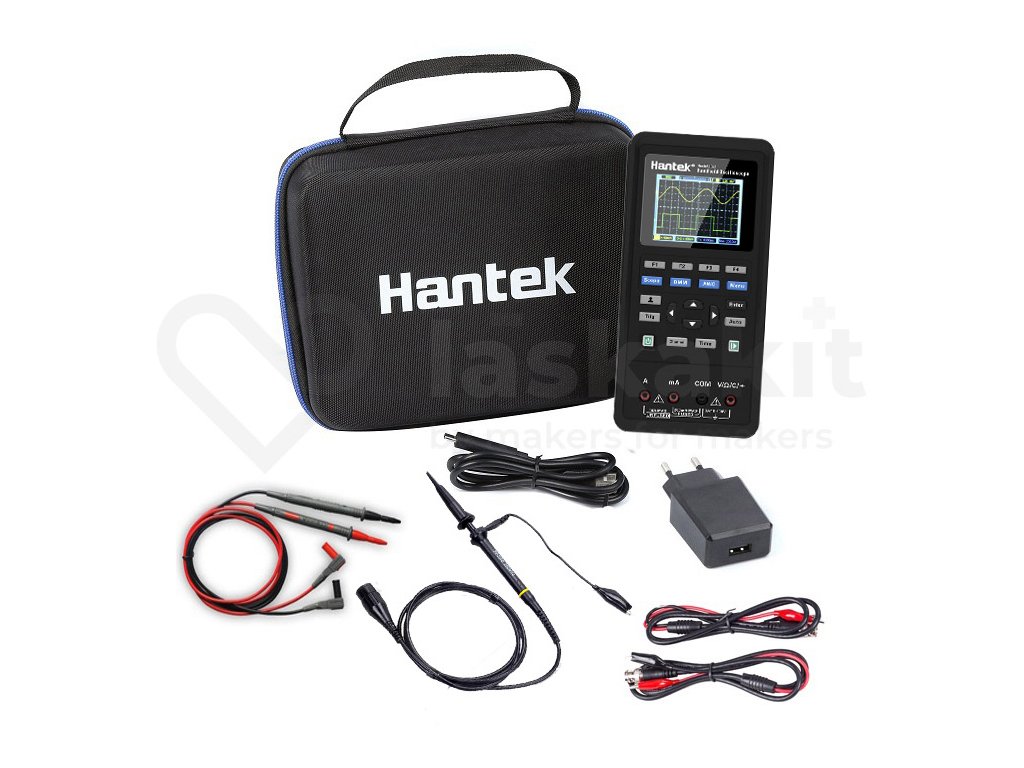

Two channel oscilloscope, function generator and multimeter with its own lithium battery, all necessary accessories and reinforced fabric case. You can connect an SD card to the device or connect it to a computer for data storage and processing.
The multimeter is capable of measuring AC/DC voltage and current, resistance, capacitance of capacitor and diode. with clear display and complementary demonstration of how to connect the prongs and the ability to hold values.
The function generator has two editable stored values to switch between and several types of waves such as sine, rectangular or trapezoidal. Depending on the wave type, it is capable of reaching frequencies up to 25 MHz.
The oscilloscope has a resolution of 70MHz and two channels. One of the channels can serve as a trigger. Adjustable resolution between 10V per division up to 10mV per division. An automatic measurement function can also be set, which can measure frequency and amplitude by itself.

Specifications:

• Multimeter
  • Maximum input voltage: 600VAC, 800VDC
  • Maximum current: 10A
  • Input impedance: 50MΩ
  • Short circuit detection: <50Ω
  • Diode testing: 0-2V
• Function generator
  • Sampling rate: 250MSa/s
  • Frequency resolution: 1Hz
  • Vertical resolution: 12 bit
  • Wave types and maximum frequencies: sine wave 25MHz, Rectangle 10MHz, Triangle 1MHz, Trapazoid 5MHz
  • Output impedance 50Ω
  • Four other forms
• Oscilloscope
  • Horizontal
    • Sampling rate: 250MSa/s(One channel), 125MSa/s(Both channels)
    • Wave interpolation: (sin x)/x
    • Measurement length: max 6K one channel; 3K both channels
    • SEC/DIV range : 5ns/div~500s/div 1, 2, 5 sequence
  • Vertical
    • A/D converter: 8-bit resolution, each channel sampled separately
    • VOLTS/DIV range: 10mV/div~10V/div
    • Bandwidth: 20MHz
    • Low frequency response (-3db): ≤10Hz on BNC
    • BNC excitation time: ≤5ns
    • DC input accuracy: ±3% for normal or average collection, from 10V/div to 10mV/div
  • Trigger
    • Type: Edge
    • Modes: Auto, Normal, Single
    • Level: ±4 divisions from the centre of the screen
    • Trigger Level Accuracy: 0.2div X volts/div in ±4 div from center of screen
    • Slope: rising, falling and rising and falling
    • Source: CH1/CH2
  • Input
    • Connection: DC, AC or GND
    • Input impedance to DC: 25pF±3 pF, 1MΩ±2%

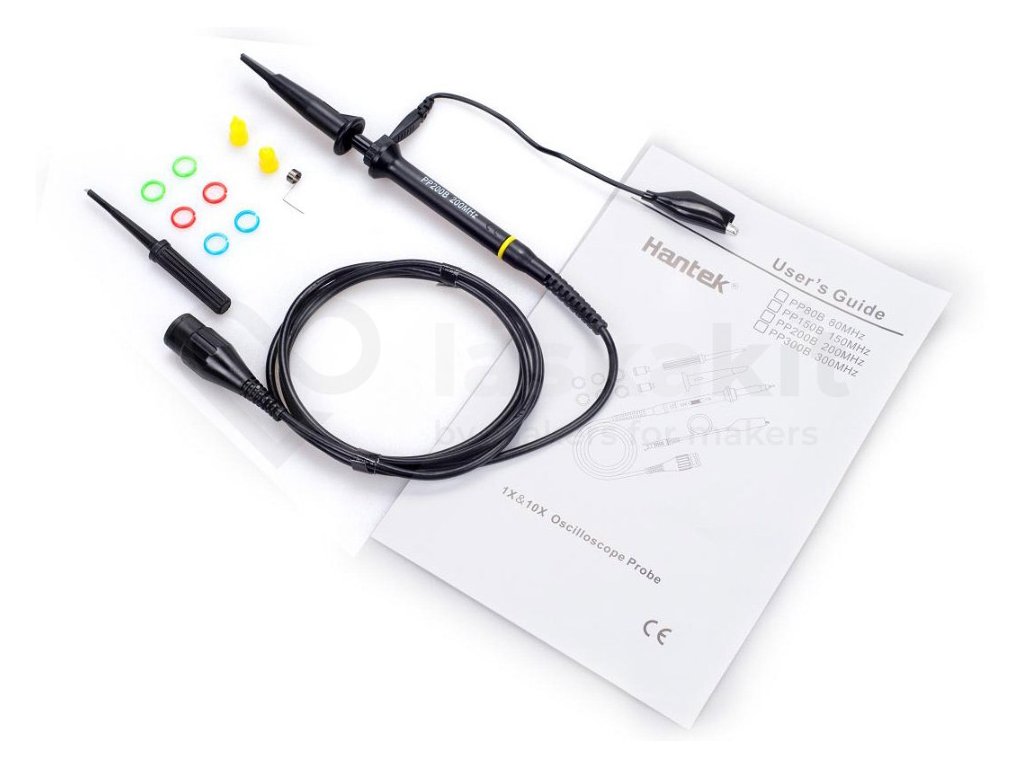

    • Probe attenuation: 1X, 10X
    • Supported probe attenuation factors: 1X, 10X, 100X, 1000X
    • Maximum input voltage: 150VRMS
  • Measurement
    • Automatic measurement: Frequency, Amplitude
• Size: approx 139x74.5x33.6mm
• Weight: approx. 37g

Included in delivery:

• 1pc Hantek 2D72 Oscilloscope 2x70MHz and multimeter

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
