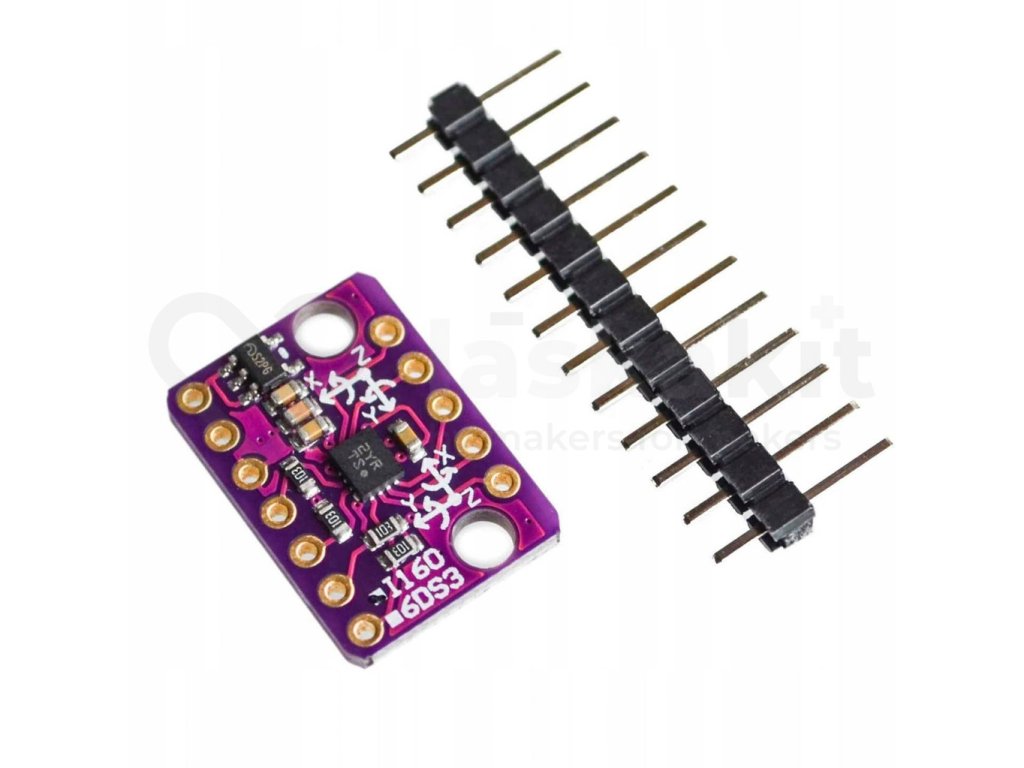

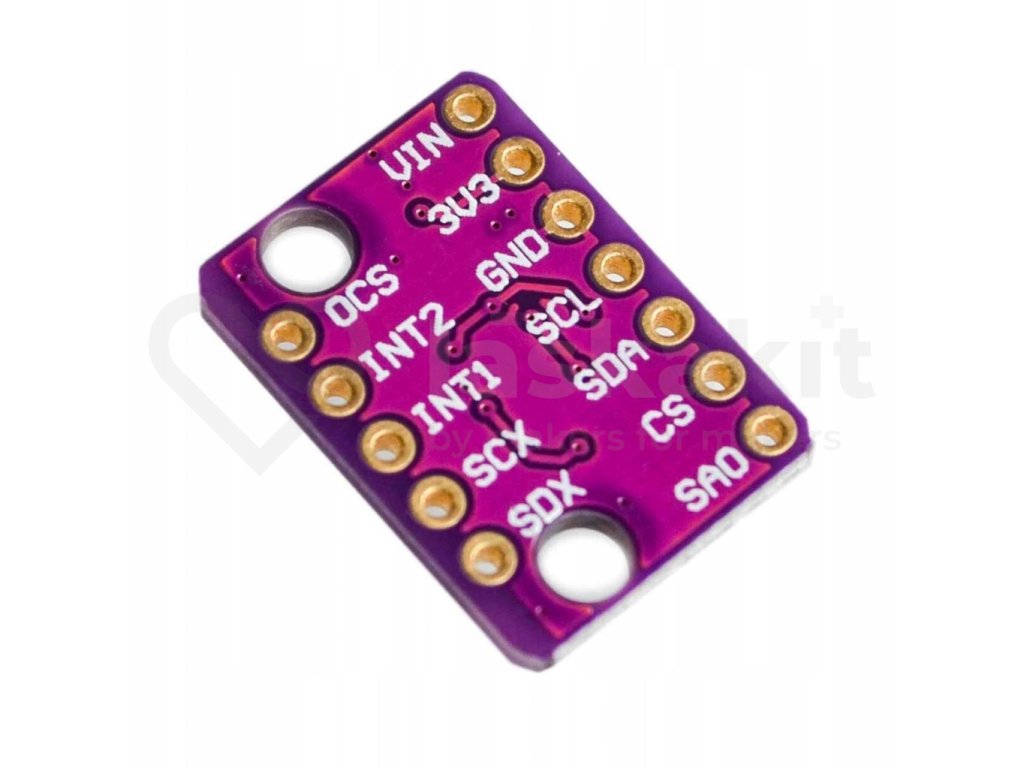

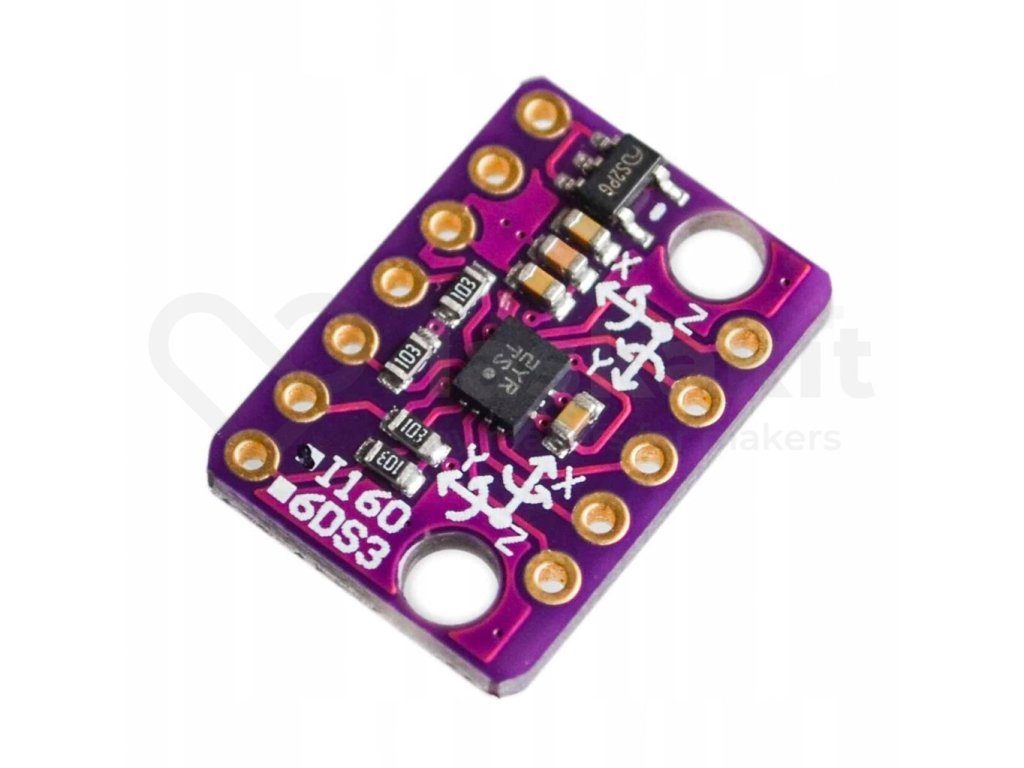

GY-BMI160 6-Axis Gyroscope and I2C Accelerometer

Product detailed description

BMI160 6-axis inertial motion sensor. It is based on the Bosch BMI160 6-axis MEMS sensor, which integrates a 16-bit 3-axis accelerometer with an ultra-low-energy 3-axis gyroscope. The Bosch BMI160 is designed for smartphones, tablets and wearable devices. It has built-in intelligent step counting algorithms that can be read directly through the registers. Built-in 3-axis accelerometer and 3-axis gyroscope can detect running, fitness and other motion activities. The built-in LDO power management chip supports a wide 3 to 6V supply voltage and also has an I2C conversion circuit that is compatible with 3.3V and 5V microcontrollers.

Specifications:

• Chip: BMI160
• Axes: 6DoF (3 axes accelerometer, 3 axes gyroscope)
• Accelerometer measurement range: ±2g, ±4g, ±8g, ±16g
• Gyro measurement range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
• Communication interface: I2C (address: 0x68/0x69), SPI
• Data buffer: 1024B FIFO
• Power supply voltage: 3.3V/5V
• Energy consumption: very low consumption
• Dimensions: 18x3mm

Included in delivery:

• 1pc GY-BMI160 6-axis gyroscope and accelerometer I2C

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
