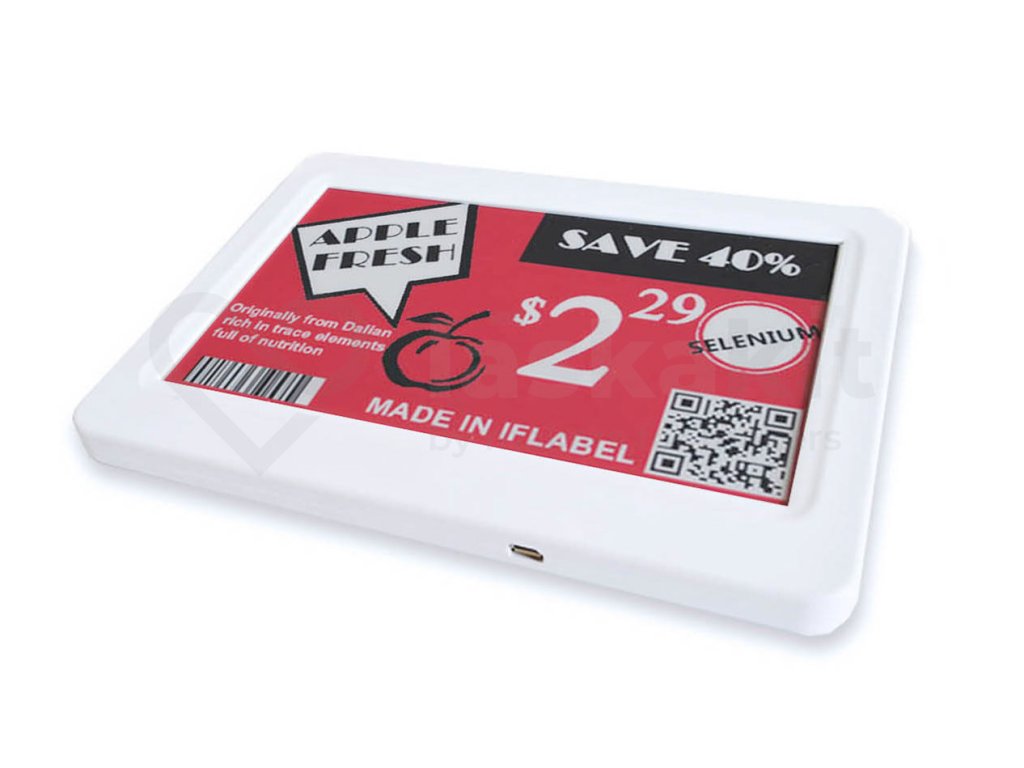

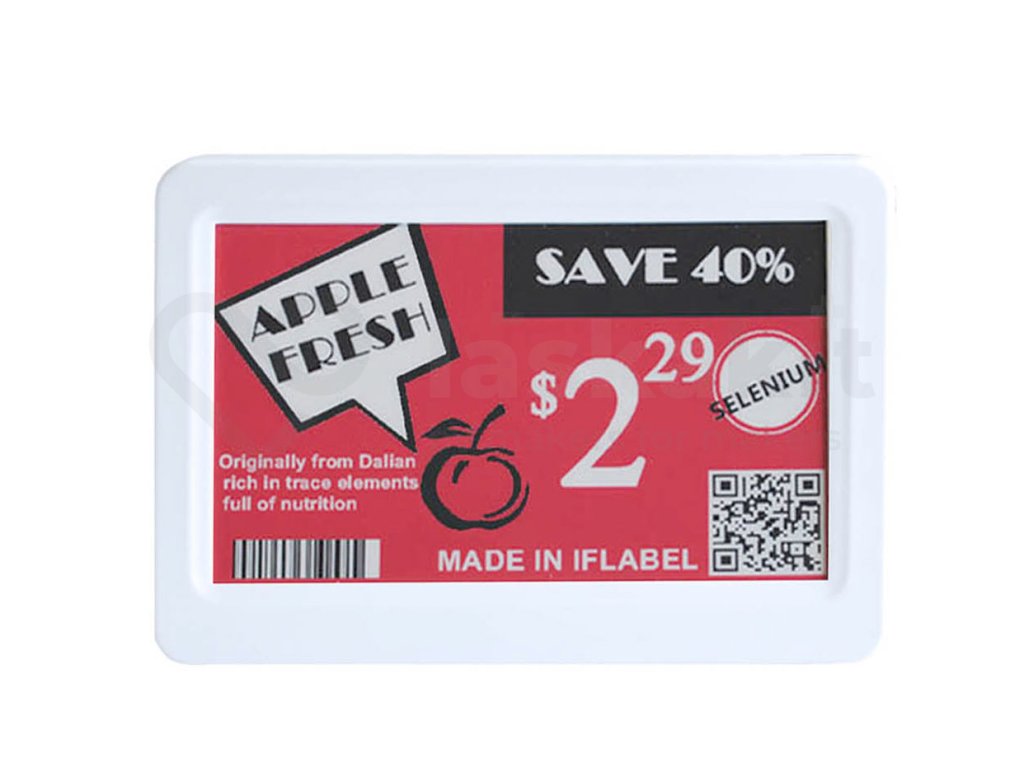

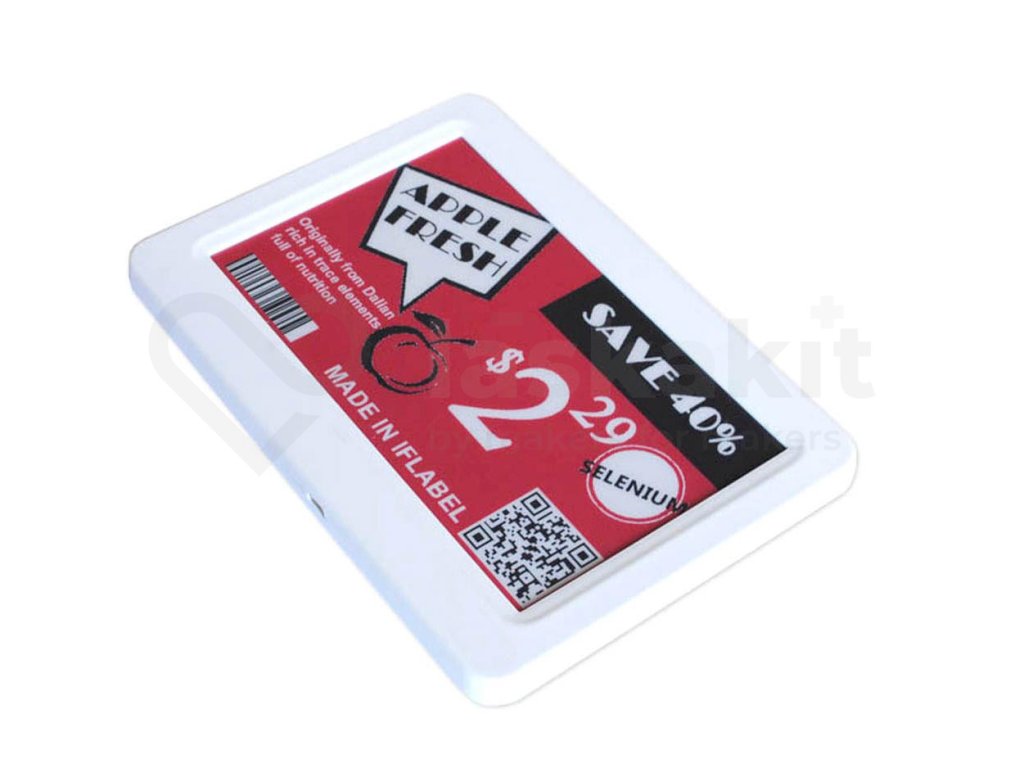

Good Display GDU075R1 ESL Electronic price tag 7.5" 800x480 USB

Product detailed description

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

The GDU075R1 electronic price tag (ESL) uses the traditional USB communication method. In addition, it is equipped with host software that allows users to directly update the current display on the PC via this software. This design simplifies the update process and eliminates the need for users to engage in modeling operations; they simply import the images they want to display into the software. Through USB communication and host software, users can achieve true

Electronic paper display 7.5 inches with 800x480 resolution, USB interface and the ability to display black and white images, logos, icons. The image you display will last indefinitely without power - display the image and then turn off the power. Once these electronic paper display modules are updated, they do not require any power and can actually be completely disconnected, with the content remaining on the display for an unlimited time. This ePaper display is ideal for devices with low energy consumption powered by solar sources or batteries.

If the display does not refresh every 24 hours, it may lead to a phenomenon known as "Ghosting" or "Image Sticking". In case of use, it is recommended to refresh the display every 24 hours.

Specifications:

• Display used: GDEY075Z 08
• Recovery method: Full update in 26 sec, Quick update in 16 sec
• Display orientation: horizontal and vertical
• Product size: 7.5 inches
• Resolution: 800x480
• Colour: Black, white and red

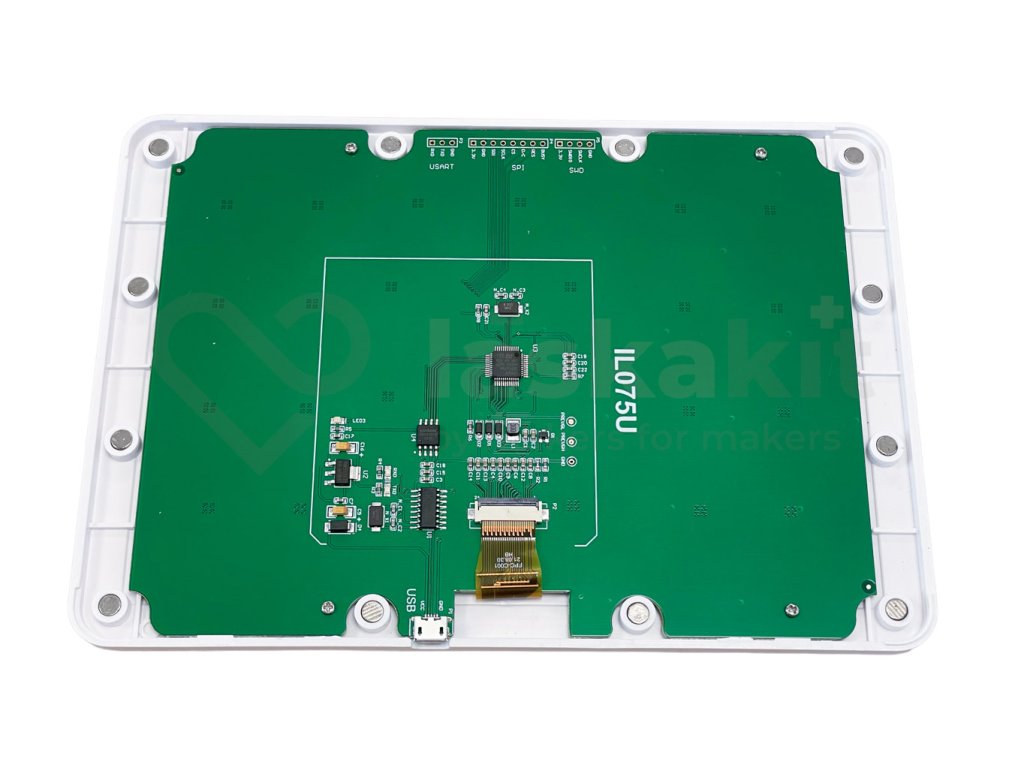

• Used IO: STM32F1 with CH340 converter
• Control method: USB control
• Operating temperature: 0~40℃

Included in delivery:

• 1pc Good Display GDU075R1 ESL Electronic price tag 7.5" 800x480 USB

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
