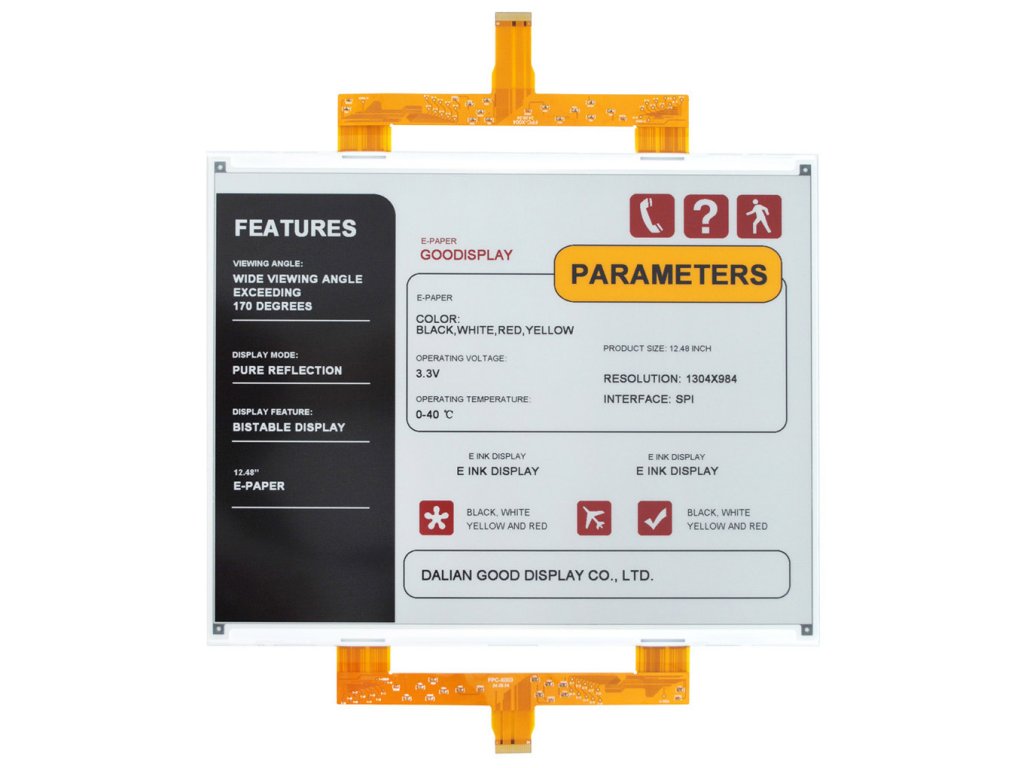

Good Display GDEY1248Z51 12.48" 1304x984 ePaper red display
Code: LA141103Related products
Product detailed description
E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.
It is a 12.48 inch electronic paper display with 1304x984 resolution, SPI interface and the ability to display black and white red images, logos, icons. The image you display will last indefinitely without power - display the image and then turn off the power. Once these electronic paper display modules are updated, they do not require any power and can actually be completely disconnected, with the content remaining on the display for an unlimited time. This ePaper display is ideal for devices with low energy consumption powered by solar sources or batteries.
If the display does not refresh every 24 hours, it may lead to a phenomenon known as "Ghosting" or "Image Sticking". In case of use, it is recommended to refresh the display every 24 hours.
ATTENTION: It is not compatible with our LaskaKit ESPink ESP32 e-Paperboard, but it will be compatible with the new ESPink-Dually
Specifications:
PART NUMBER | GDEY1248Z51 | ||
SIZE | 12.48 inches | STORAGE TEMP. | -25℃~60℃ |

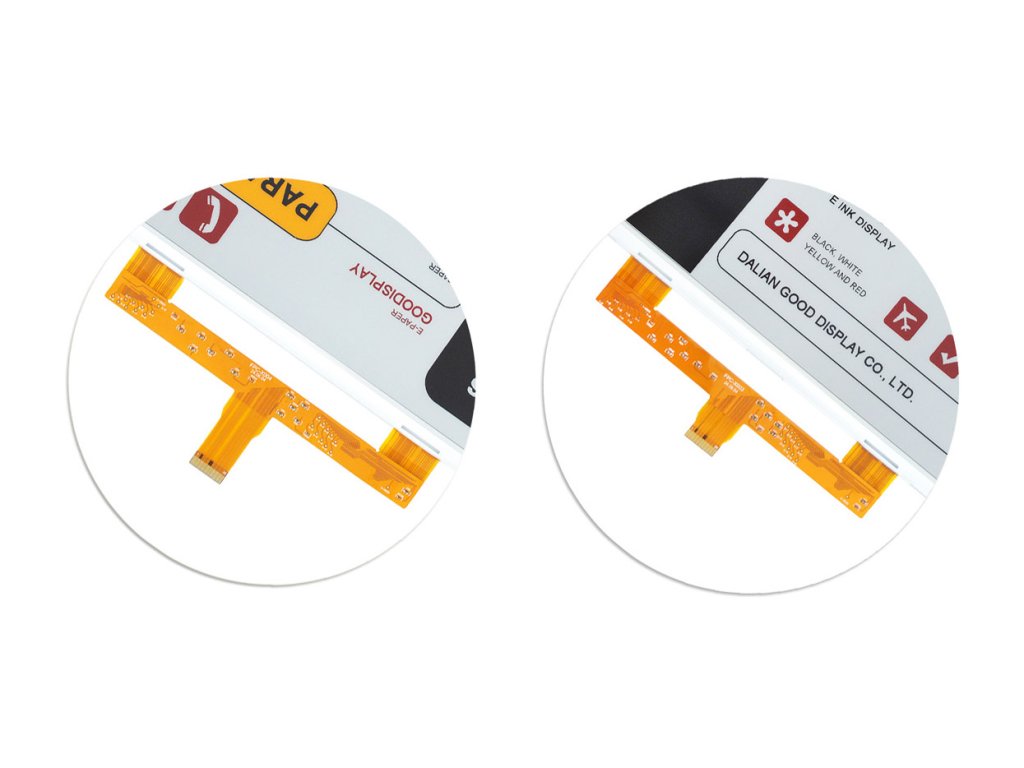

TYPE | Dot Matrix | CONNECTOR | Two FPC Interface, 30Pin |
IC | UC8179 | MAX GRAYSCALE | 2 |
RESOLUTION | 1304x984 | COLOR | Black, White, Red |
OUTLINE SIZE (mm) | 261.4x211x1.20 | INTERFACE | Sleep |
ACTIVE SIZE (mm) | 252.98x190.90 | FULL REFRESH(s) | 37 |
PIXEL PITCH(mm) | 0.194x0.194 | POWER CONSUMPTION OF THE REFRESH(mW) | 148.5 |
OPERATING TEMP. | 0℃~40℃ | STANDBY POWER CONSUMPTION (mW) | 0.0165 |
Included in delivery:
- 1pc Good Display GDEY1248Z51 12.48" 1304x984 ePaper red display
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
Category: | E-ink (E-paper) Displays |
---|---|
Warranty: | 2 years |
Weight: | 0.32 kg |
