Product detailed description

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

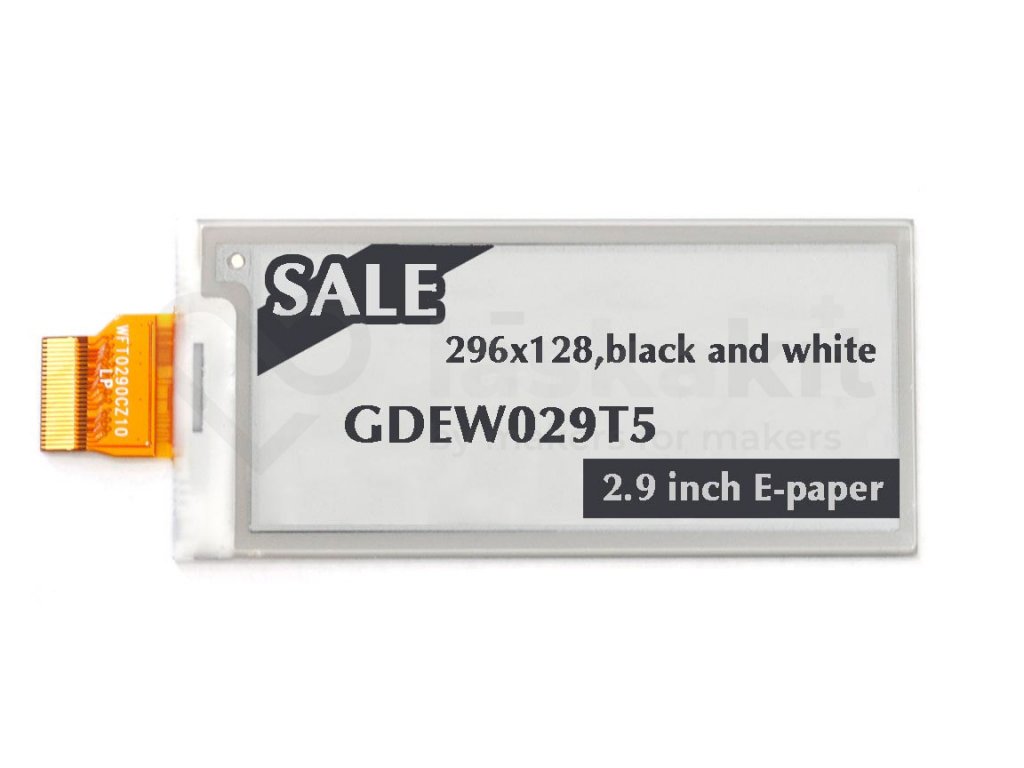

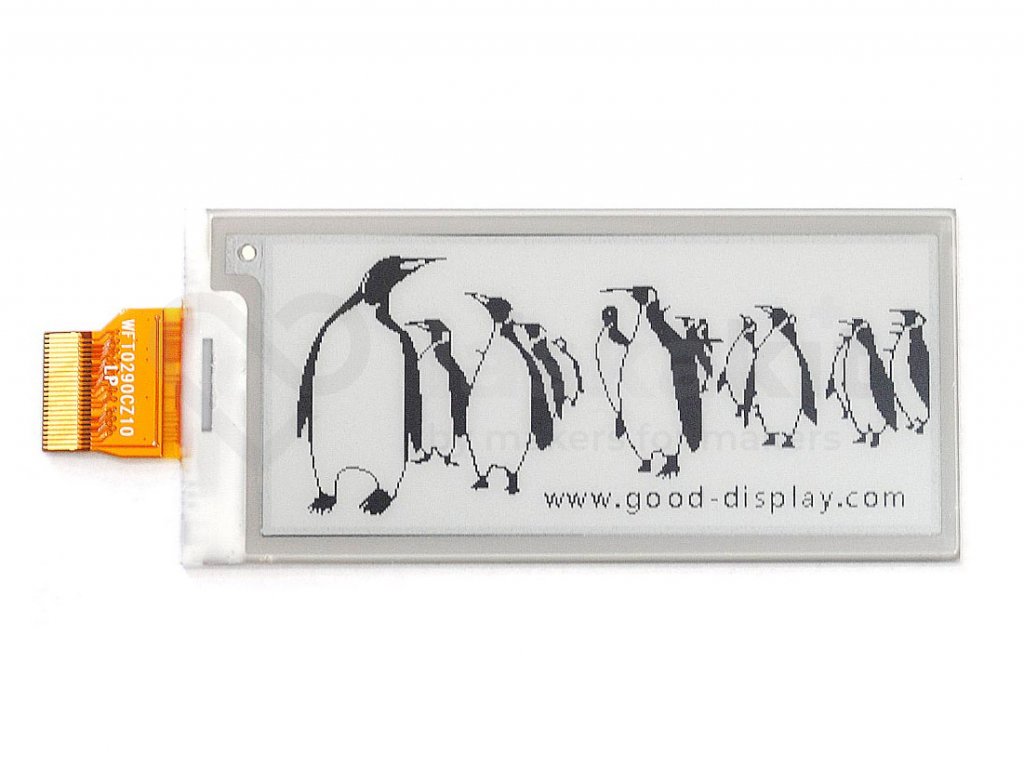

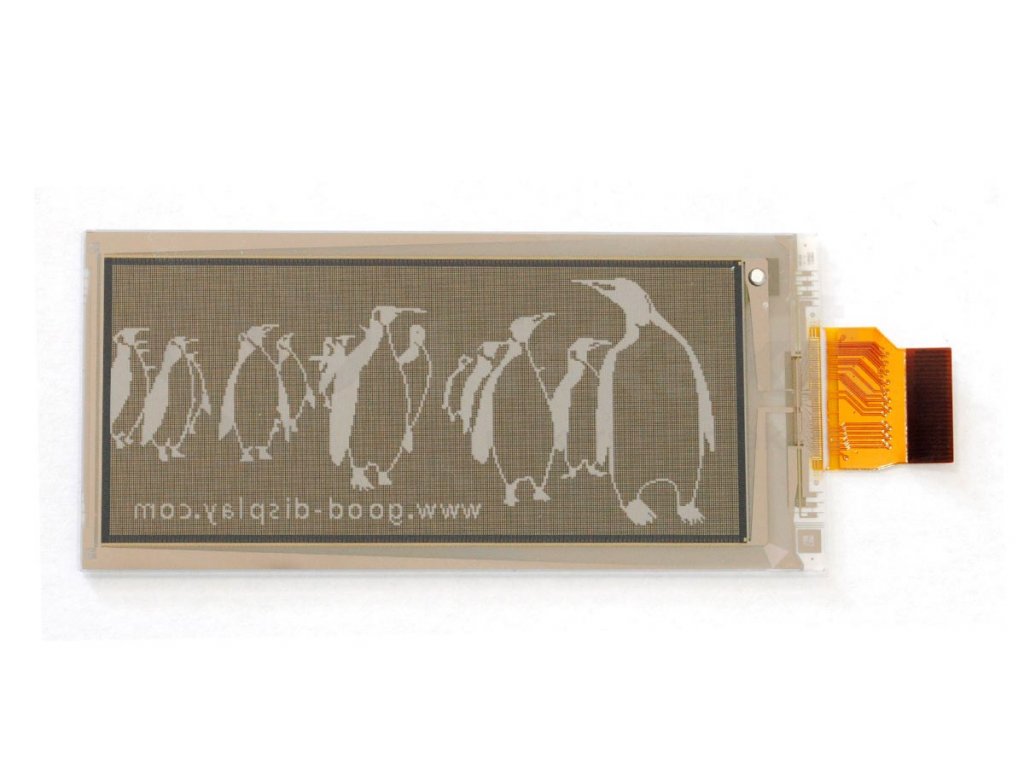

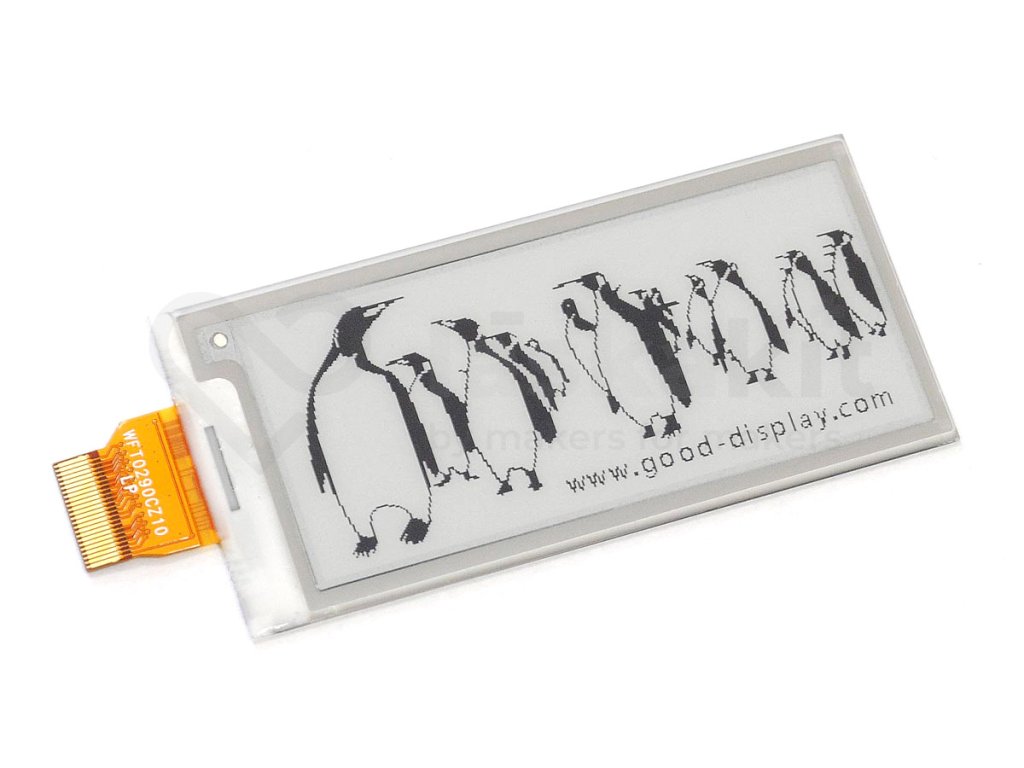

It is a 2.9 inch electronic paper display with 296x128 resolution, SPI interface and the ability to display black and white images, logos, icons. The image you display will last indefinitely without power - display the image and then turn off the power. Once these electronic paper display modules are updated, they do not require any power and can actually be completely disconnected, with the content remaining on the display for an unlimited time. This ePaper display is ideal for devices with low energy consumption powered by solar sources or batteries.

If the display does not refresh every 24 hours, it may lead to a phenomenon known as "Ghosting" or "Image Sticking". In case of use, it is recommended to refresh the display every 24 hours.

Specifications:

PART NUMBER GDEW029T5D
SIZE 2.9 inches
TYPE Dot Matrix
IC UC8151D
RESOLUTION 296x128
OUTLINE SIZE (mm) 79x36.7x1.18
ACTIVE SIZE (mm) 66.9x29.06
PIXEL PITCH(mm) 0.227x0.226
OPERATING TEMP. 0℃~50℃
STORAGE TEMP. -25℃~70℃
CONNECTOR 24 Pin FPC
MAX GRAYSCALE 4
COLOR Black, White
INTERFACE Sleep
FULL REFRESH(s) 3
PARTIAL REFRESH RATE(s) 0.3
POWER CONSUMPTION OF THE REFRESH(mW) 26.4
STANDBY POWER CONSUMPTION (mW) 0.0165
FRONT LIGHT Optional

Included in delivery:

  • 1pc Good Display GDEW029T5D 2.9" 296x128 ePaper display Grayscale

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: Retired
Warranty: 2 years
Weight: 0.009 kg
