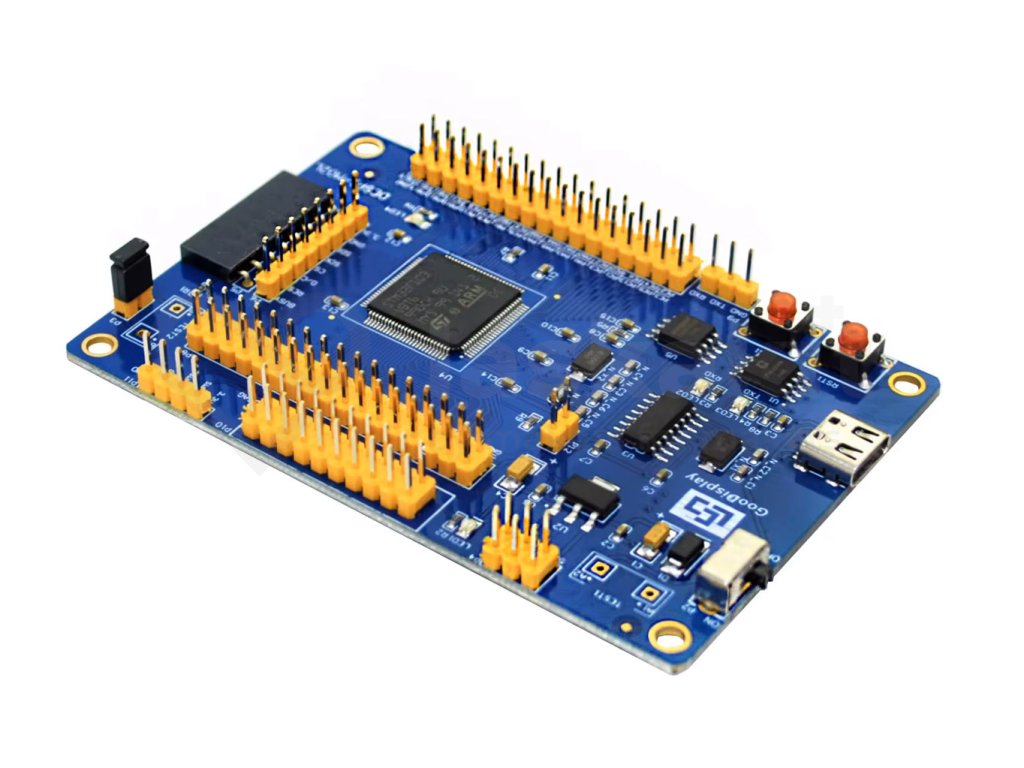

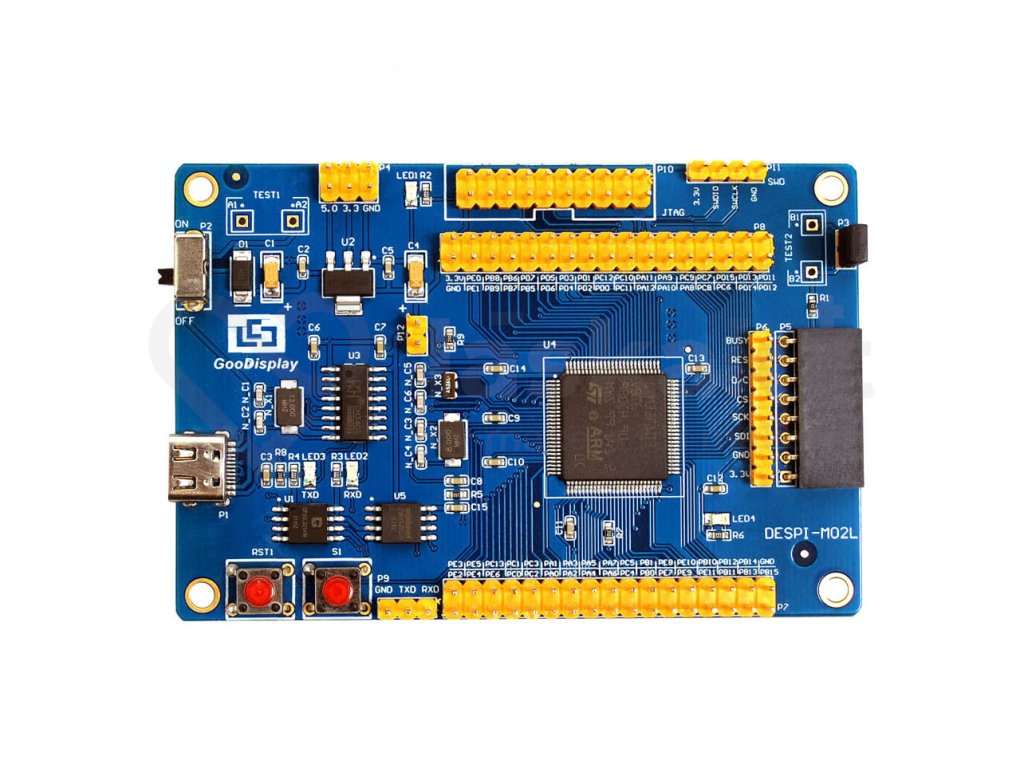

Good Display DESPI-M02L STM32F103VET6 Development board for e-Paper

Code: LA100139
€35,76 €29,55 excl. VAT
Skladem (8 pcs)
Delivery to:
16/12/2024

A board similar to the Arduino Nano, but with a more powerful ARM microcontroller, but still programmable in the Arduino IDE

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

The STM32 series of 32-bit microcontrollers is based on the Cortex-M processor, which supports high-performance real-time functionality, digital signal processing, and low-power, low-voltage operation. It also offers great integration and an easy-to-use development environment. The product line with STM32 is very extensive, mainly due to the industry standard, large number of tools and software support, making this chip series an ideal choice for many products.

GooDisplay has launched the following complete series of STM32-based development kits to help users develop STM32-based electronic e-Paper displays, design the relevant circuitry and understand the product's function.

The following combinations of development boards support running the Image to EPD software on the host computer. Image to EPD software supports direct import of images, eliminating the hassle of creating and converting bitmaps.

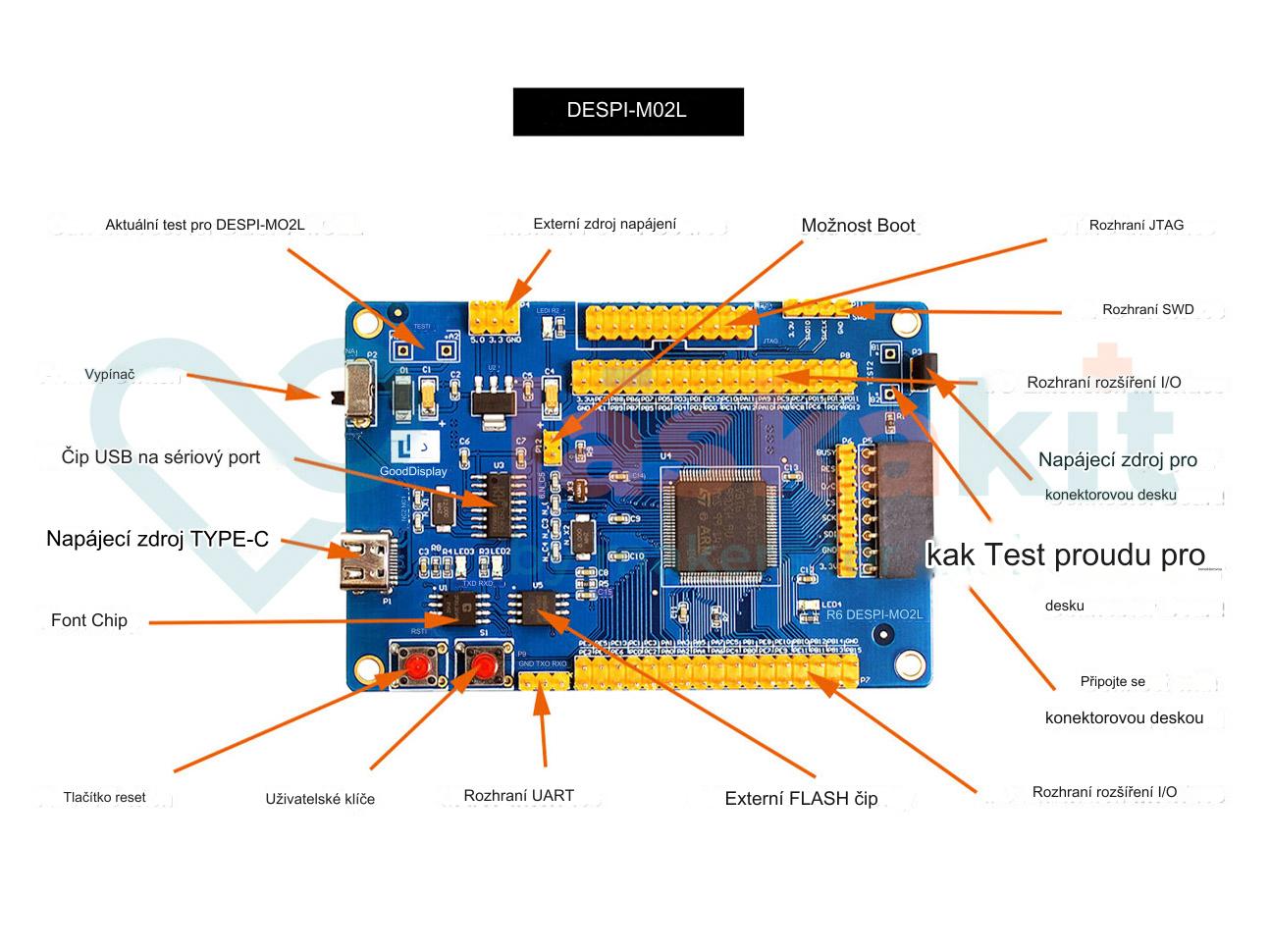

LaskaKit-good-display-despi-m02l-stm32f103vet6-vyvojova-deska-pro-e-paper-d-2

Specifications:

PARAMETER

DESPI-M02L

PLATFORM STM32

FUNCTION

Drive E-paper Display

SUITABLE ADAPTERS

DESPI-C 02 , DESPI-C 03 , DESPI-C097(18 PIN), DESPI-C102, DESPI-C31, DESPI-C579, DESPI-C73, DESPI-C1248, STM32-T01,
OUTSIDE DIMENSION 90x60mm

INTERFACE

Type-C

POWER INPUT

DC5V

FEATURE

Support fully refresh, fast refresh and partial refresh

GRAYSCALE LEVEL

Max 16 Grayscale

OPERATING TEMP.

-20℃~70℃

RESERVED FUNCTION

Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection

MAIN FUNCTION

Learn to drive E-paper display;

Test and evaluate e-paper display;

Support secondary development

Delivery components:

  • 1pc Good Display DESPI-M02L STM32F103VET6 Development board for e-Paper

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: ARM Development Boards
Warranty: 2 years
Weight: 0.03 kg
Type: ARM
Logical levels: 3.3V
Connector with battery charger: No
Microcontroller: STM32
Converter: CH340
