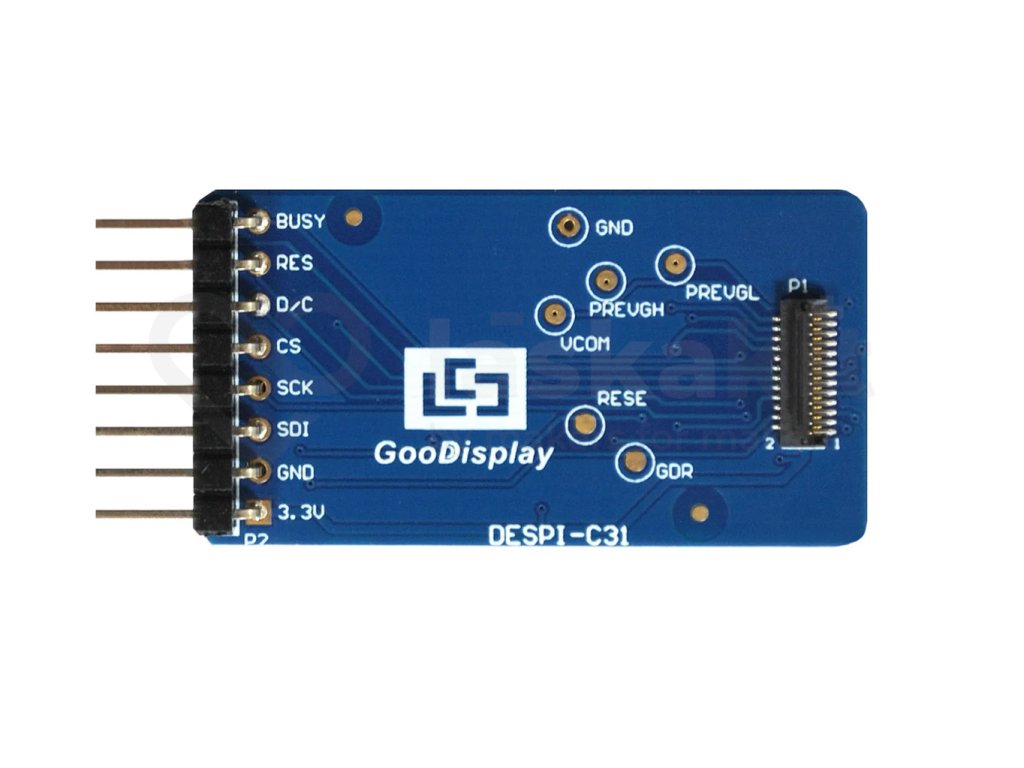

Good Display DESPI-C31 universal SPI e-Paper adapter

Product detailed description

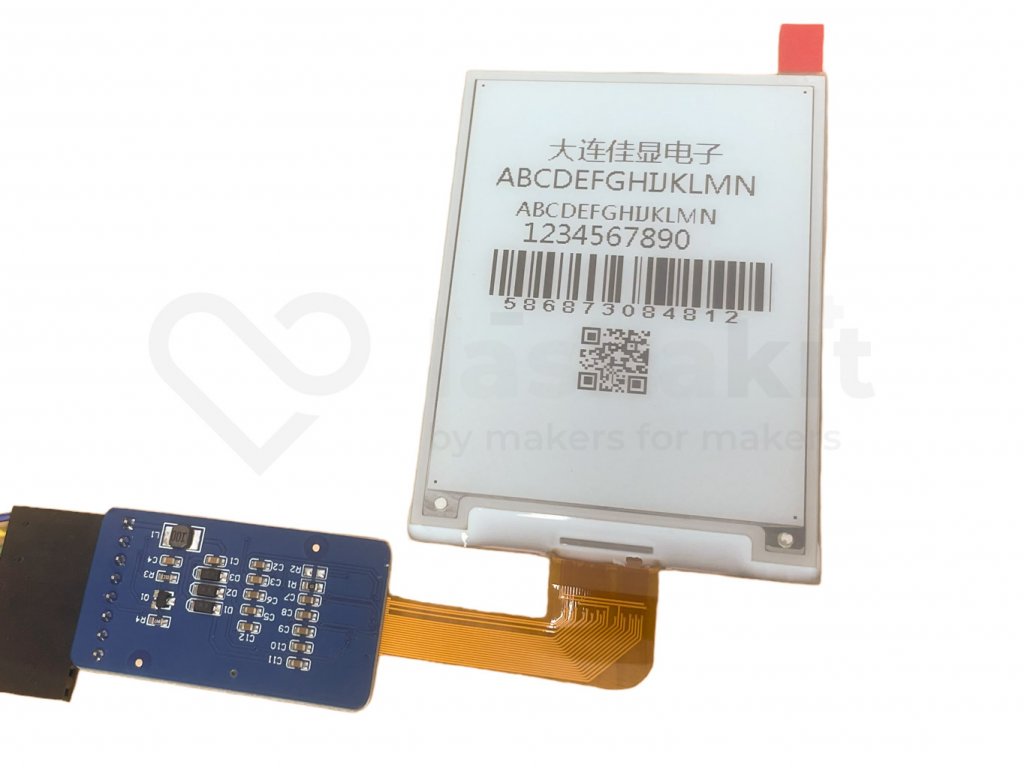

The adapter enables the connection of E-paper displays from the company Good Display (not only) with an SPI bus and a 25-pin connector, for example Good Display GDEQ031T10 3.1". Dedicated interface for connection to other boards. SPI interface, to connect to other controllers like Raspberry / Arduino / Nucleo etc.

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

Unlike conventional displays, ePaper does not glow but reflects light, just like ordinary paper. It's an ideal display for battery-powered devices because it only needs electricity to change the displayed content.

Specifications:

• Voltage: 3.3V
• Interface: 3 or 4 pin SPI
• E-paper: 25 pin Flex
• Dimensions: 41x22x5mm

Included in delivery:

• 1pc Good Display DESPI-C31 universal SPI e-Paper adapter

Remark:

• The display is not part of the package
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
