Good Display DESPI-C03 universal SPI e-Paper adapter

Product detailed description

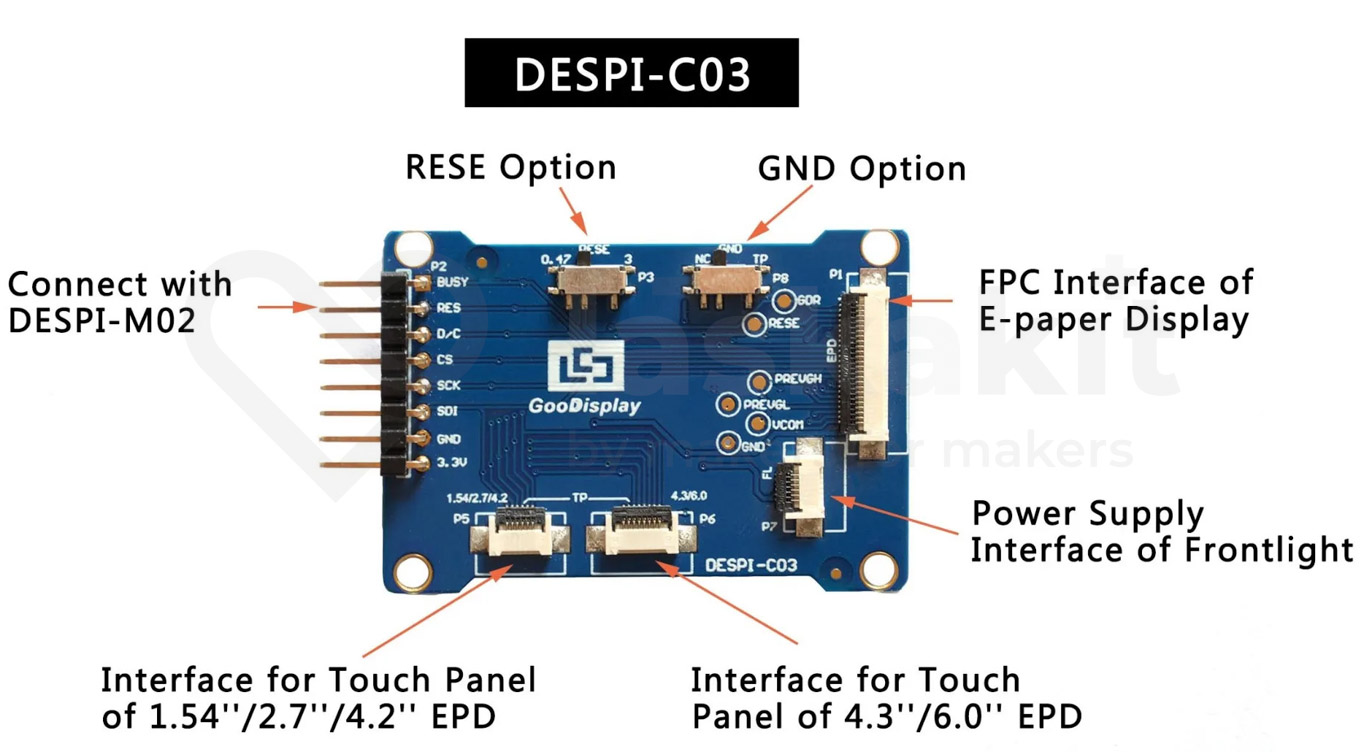

The DESPI-C03 module is a connection board that was designed to make it easier for users to work with the Good Display E-Paper Display. This module serves as an interface between the E-Paper Display and a microcontroller or other device, allowing users to easily control and use the E-Paper Display.

Compatibility with various sizes of E-paper SPI displays from Good Display and Waveshare, including various diagonals such as 1.54", 2.04", 2.13", 2.6", 2.7", 2.9", 3.71", 4.2", 4.26" , 5.83", 7.5", 10.2", 10.85" and 11.6". It can control the touch panel and also the front light panel.

Standard header Raspberry Pi 40PIN GPIO, supports Raspberry Pi series boards, Jetson Nano. SPI interface, to connect to other controllers like Raspberry / Arduino / Nucleo etc.

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

Unlike conventional displays, ePaper does not glow but reflects light, just like ordinary paper. It's an ideal display for battery-powered devices because it only needs electricity to change the displayed content.

Specifications:

• Voltage: 3.3V
• Interface: 3 or 4 pin SPI
• Dimensions: 58x36.5x8mm

Included in delivery:

• 1pc Good Display DESPI-C03 universal SPI e-Paper adapter

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
