Filament Spectrum PC/PTFE 1.75mm NAT 0.75kg

Product detailed description

PC/PTFE fiber spectrum

High temperature and abrasion resistance

Spectrum PC/PTFE is an advanced polycarbonate (PC) based composite fibre with the addition of PTFE commonly known as Teflon. The high demand and limited availability of additive manufacturing materials with very good mechanical properties, with particular emphasis on high abrasion resistance, has led to an effort to combine the excellent properties of PC and PTFE. Polycarbonate provides high mechanical resistance and PTFE adds additional properties by reducing wear and friction.

The applied treatments provide improved thermal stability of the printed parts, increased electrical insulation and higher chemical and water resistance. Spectrum PC/PTFE fiber is a material for a wide range of industrial applications due to its properties. Materials printed with PC/PTFE filament can be machined for a perfectly smooth surface. The use of this type of material enables the production of parts with relatively complex geometry while maintaining relatively high dimensional accuracy.

In order to achieve the very attractive technical properties of Spectrum PC/PTFE, it is necessary to observe the basic rules of storage of these materials (in a dry and dark place with humidity below 15%). To achieve the best possible printed object parameters, it is recommended to dry the material before processing.

Tip: It is recommended to print using a heated chamber.

Key features:

low shrinkage during processing (linear) approx. 0,6 %
thermal deviation temperature (HDT) - 140°C
Vicat softening point - 145°C
flammability rating UL 94 (3.0 mm) - V1
electrical resistance 1E12 Ohm
static coefficient of friction - 0.18
dynamic coefficient of friction - 0.14
high abrasion resistance
high mechanical strength
very strong lamination of layers
App:

production of low friction parts
manufacture of parts providing thermal, electrical and thermal insulation
production of low-load gears and gearing elements
manufacturing tools used to assemble components during the manufacturing process
end use parts
functional prototyping
Cover

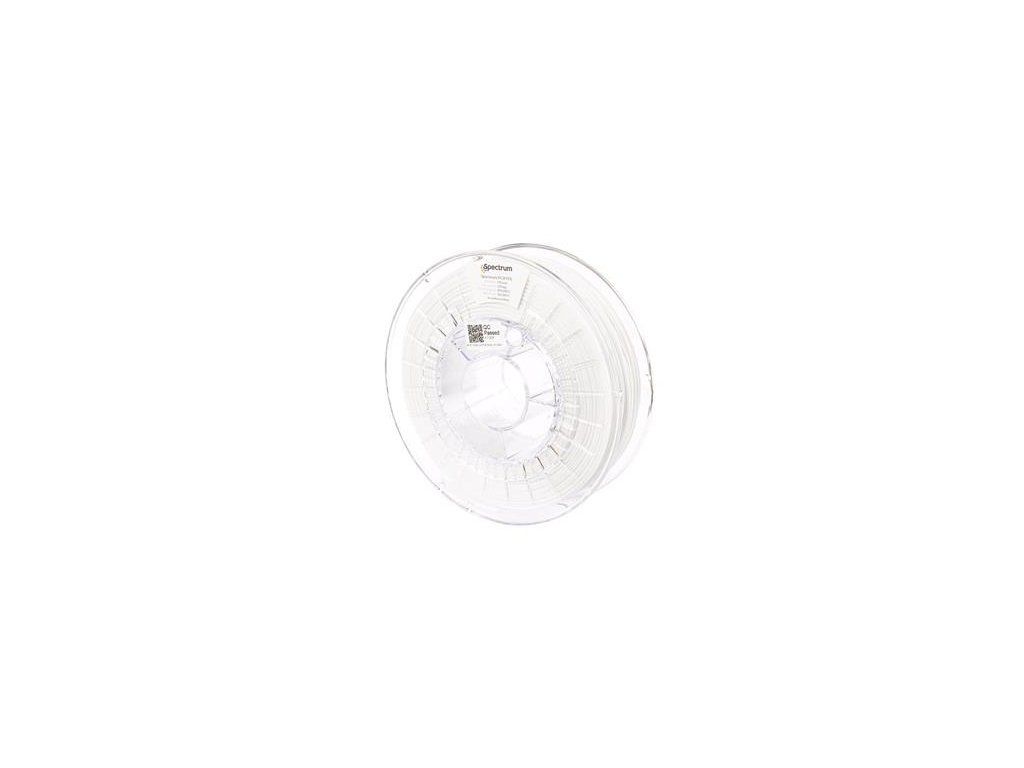

The fibre is wound on a neat, transparent spool. Each spool contains information on material type, diameter and recommended printing temperature. The fibre is vacuum packed with a moisture absorber. The whole product is packed in the original, foiled Spectrum Filaments packaging.
