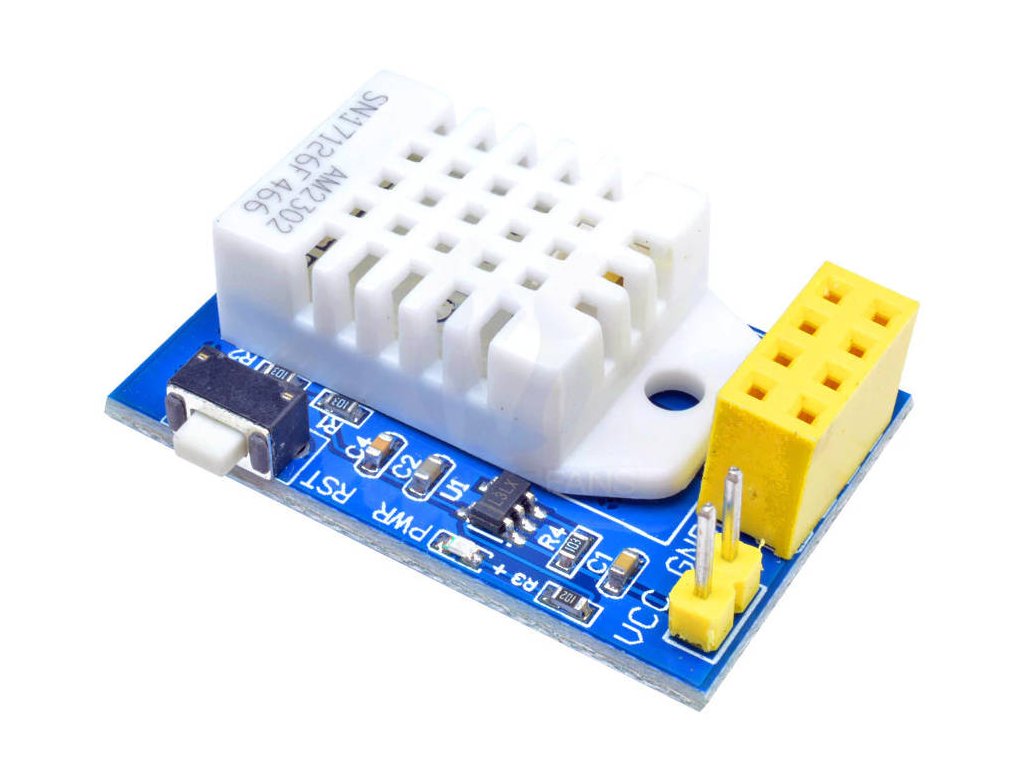

    Espressif ESP-01/01S DHT22 shield

    Code: LA110067
    2 ratings
    3794 1 espressif esp 01 01s dht22 shield
    €8,70 €7,19 excl. VAT
    In stock (24 pcs)
    Delivery to:
    14/02/2025

    Espressif ESP-01/01S DHT22 shield

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    It is a Shield that you put directly on the ESP-01/01S.

    For use with ESP-01 you will need to add a 10kΩ pull-up resistor to GPIO2, otherwise the readings may be unstable (false ('nan') readings).

    Includes temperature and humidity sensor DHT22.

    Specifications:

    • Operating voltage: DC 3.7V - 9V (can be powered by 3.7V lithium batteries)
    • Resolution: 16
    • Humidity measurement range: 0-100% RH
    • Temperature measurement range: -40 to +80?
    • Humidity measurement accuracy: 2.0% RH
    • Accuracy of temperature measurement: 0.5C

    Included in delivery:

    • 1pc Espressif ESP-01/01S DHT22 shield

    Remark:

    • When the shield is mounted on the Wemos D1 mini board, the heating from the ESP-01 module causes distortion of the measured values! For proper measurement, it is necessary to get the sensor at a greater distance from the ESP-01 module.
    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
    • WiFi module ESP-01 not included

    Additional parameters

    Category: ESP and WeMos shield modules
    Warranty: 2 years
    Weight: 0.012 kg
    Shield function: Power, Sensor
    5,0 2 ratings
    5
    2x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:
    5
    PZ Avatar of author | 16/01/2024
    Funguje jak ma, i když se senzor od eso zahřívá… nicméně stačí převrátit čidlo a problém vyřešen.
    5
    DK Avatar of author | 04/05/2020
    Funguje, ale někdo při jeho návrhu moc nemyslel. Senzor se od připojeného ESP znatelně ohřívá. Pokud tedy celek není v prostředí se znatelnou cirkulací vzduchu, je to znát na o několik stupňů vyšší naměřené teplotě. Do uzavřeného prostoru doporučuji propojit modul čidla a ESP delší spojkou (2x4)
    Do not fill out this field:
    L Avatar of author pinout 02/06/2024 11:38
    Dobrý den, zásuvka modulu má 8 pólů. Nevíte, které z nich jsou pro propojení s ESP-01 použité (nezbytné)? Děkuji.
    Reply
    MF Avatar of author pinout 03/06/2024 14:34
    Dobrý den, bude nutné propojit všechny
    JS Avatar of author spojka 07/02/2023 22:46
    Dobrý den, máte v nabídce nějakou vhodnou spojkou (2x4) se kterou se dostane čidlo do větší vzdálenosti od modulu ESP-01?
    Reply
    MF Avatar of author spojka 13/02/2023 11:50
    Dobrý den, můžete využít propojovací Dupont vodiče - https://www.laskakit.cz/dupont-propojovaci-kabely-m-f-40ks-samec-samice--20cm-/, nebo https://www.laskakit.cz/dupont-propojovaci-kabely-40ks-m-f-samec-samice--10cm-/
