    Espressif ESP-01/01S DHT11 shield

    Code: LA110041
    Not rated
    Espressif ESP-01/01S DHT11 shield
    €2,31 €1,91 excl. VAT
    In stock (34 pcs)
    Delivery to:
    14/02/2025

    Shield for ESP-01/01S boards with DHT11 temperature and humidity sensor, which in combination with the wireless communication of the board is perfectly suited for the creation of a sensor network.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

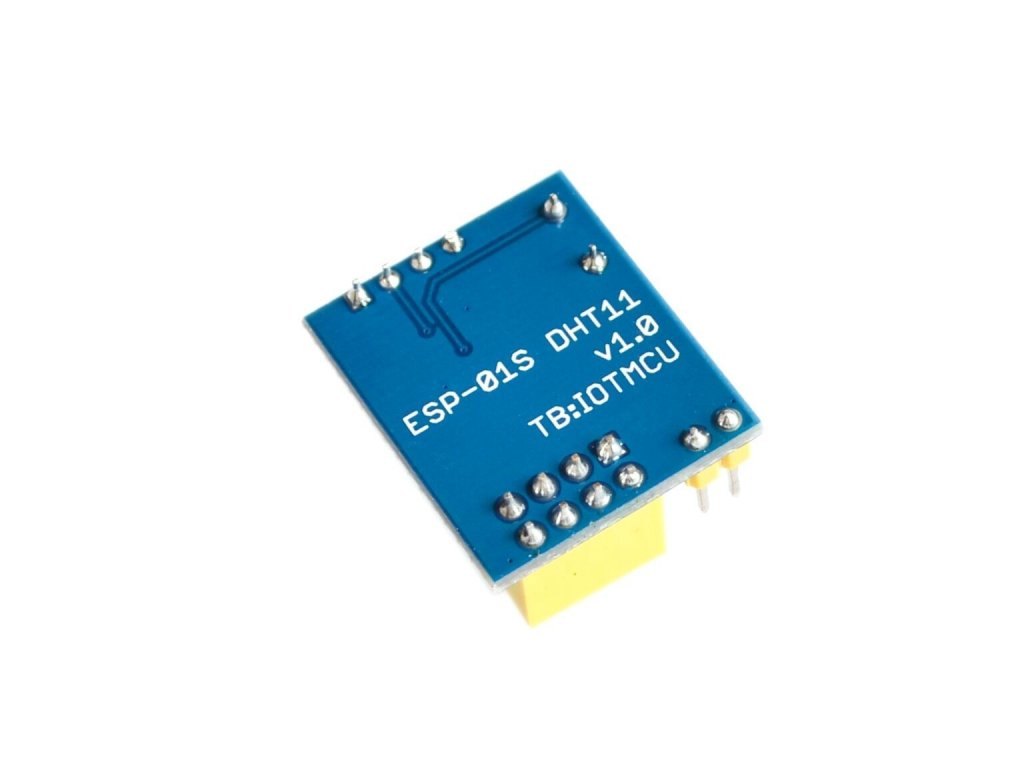

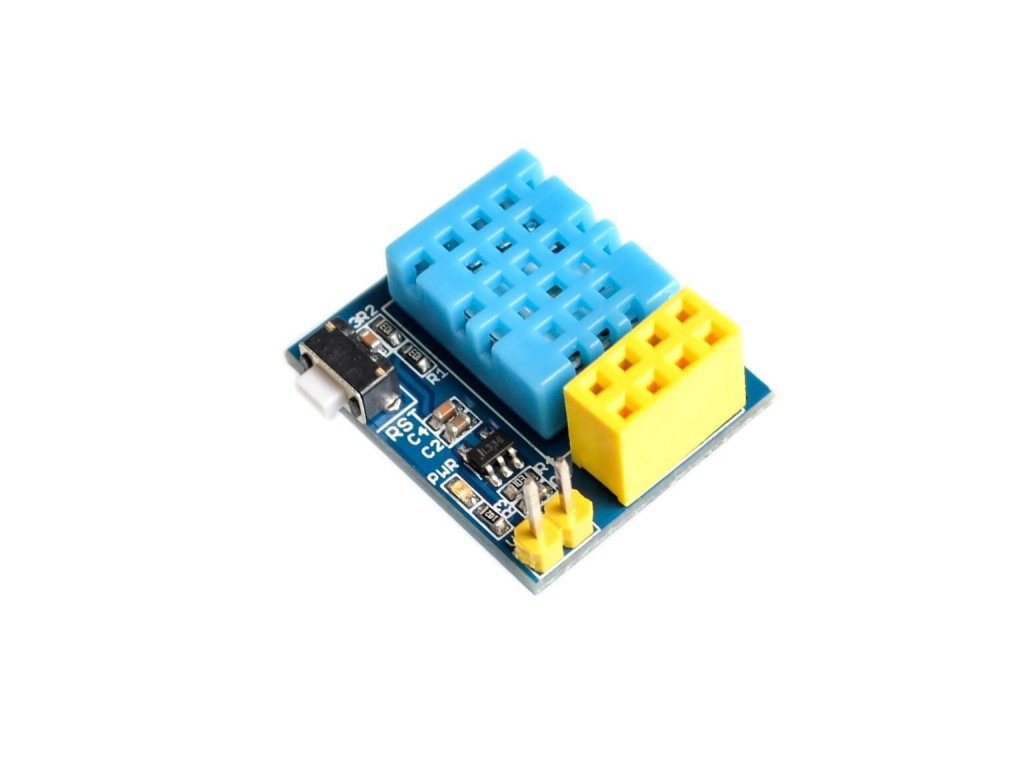

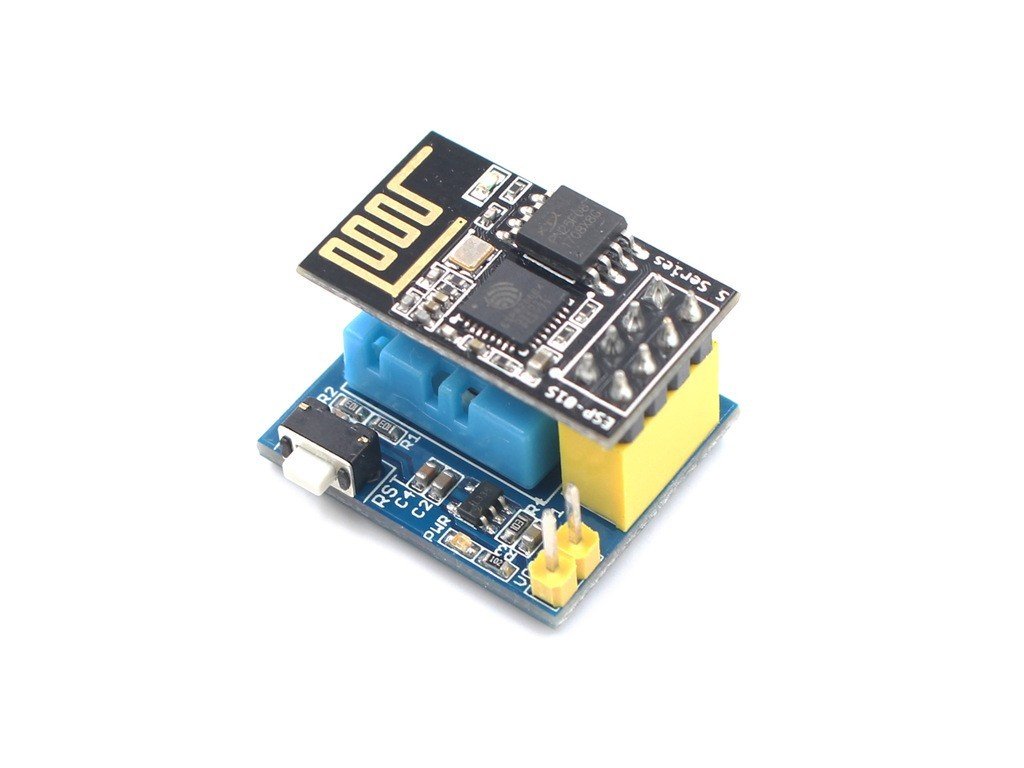

    It is a Shield that you put directly on the ESP-01/01S.

    For use with ESP-01 you will need to add a 10kΩ pull-up resistor to GPIO2, otherwise the readings may be unstable (false ('nan') readings).

    Includes temperature and humidity sensor DHT11.

    Specifications:

    • Operating voltage: DC 3.7V - 9V (can be powered by 3.7V lithium batteries)
    • Humidity measurement range: 20-95% RH
    • Temperature measurement range: 0 to +60?
    • Humidity measurement accuracy: 5.0% RH
    • Temperature measurement accuracy: 2 C

    Included in delivery:

    • 1pc Espressif ESP-01/01S DHT11 shield

    Remark:

    • When the shield is mounted on the Wemos D1 mini board, the heating from the ESP-01 module causes distortion of the measured values! For proper measurement, it is necessary to get the sensor at a greater distance from the ESP-01 module.
    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
    • WiFi module ESP-01 not included

    Additional parameters

    Category: ESP and WeMos shield modules
    Warranty: 2 years
    Weight: 0.009 kg
    Shield function: Power, Sensor

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:
    FM Avatar of author Vysoká teplota 24/10/2020 22:09
    Mám problém s vysokou teplotu. První měření po připojení k napětí je OK. Další a další měření se postupně navyšují až zhruba na o 8 stupňů víc než je skutečná teplota.
    Reply
    MF Avatar of author Vysoká teplota 26/10/2020 08:48
    Dobrý den, U tohoto shieldu je trochu nešťastně řešeno umístění modulu ESP-01 přímo nad senzorem DHT-11 a ten tudíž vlivem provozu modulu ESP-01, kdy se začne zahřívat mikroprocesor, začne ukazovat vyšší hodnoty. Řešením je co nejvíce oddálit čidlo od modulu ESP-01.
