Driver TB6600 (TB67S109AFTG) for stepper motors 3A 47V

Product detailed description

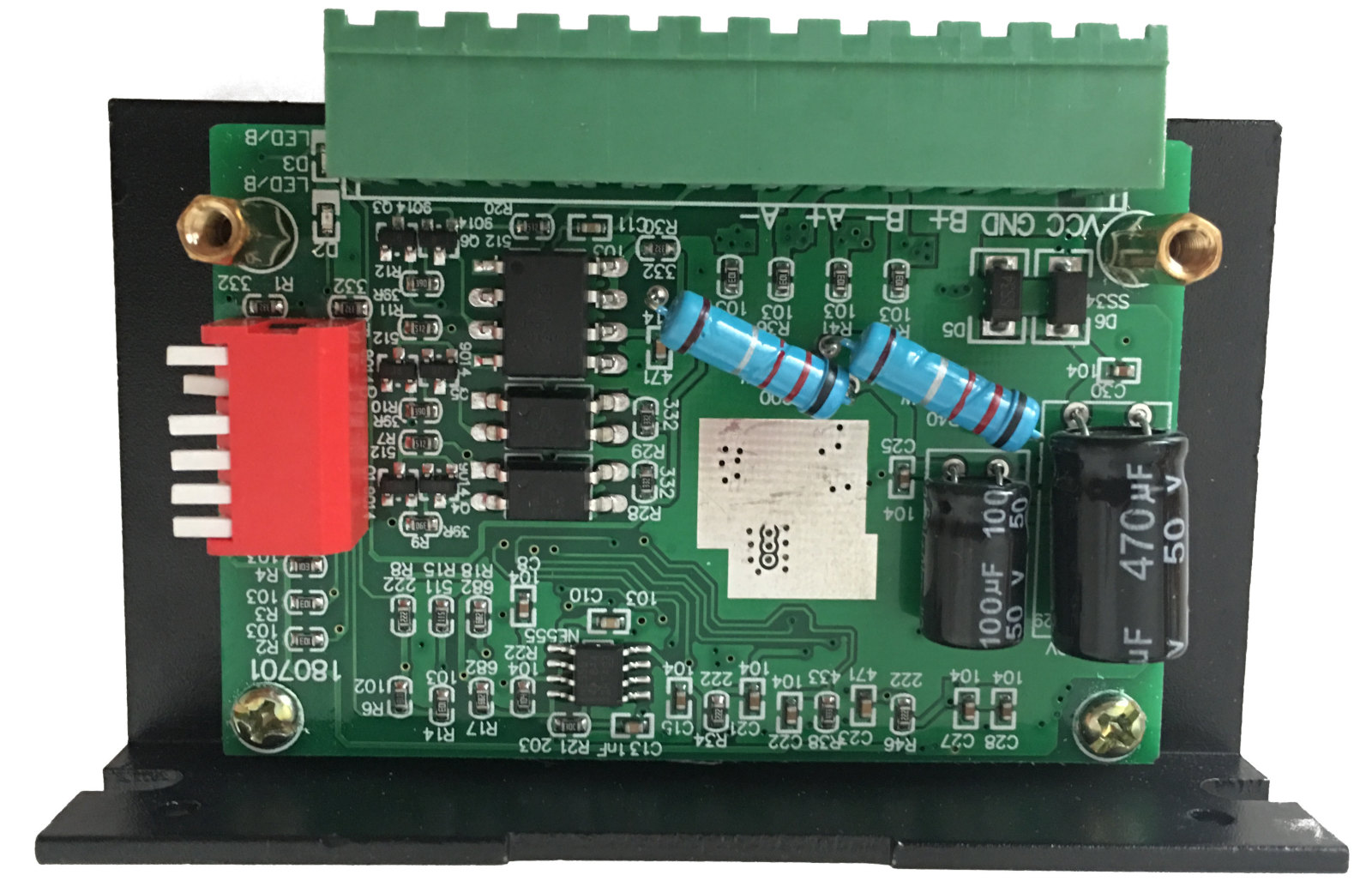

The module is designed for controlling one bipolar stepper motor with PUL and DIR signals. Includes circuits for microclocking and idle current reduction to reduce motor overheating. The control inputs are optically isolated, the STEP input uses a high-speed 6N137 circuit.

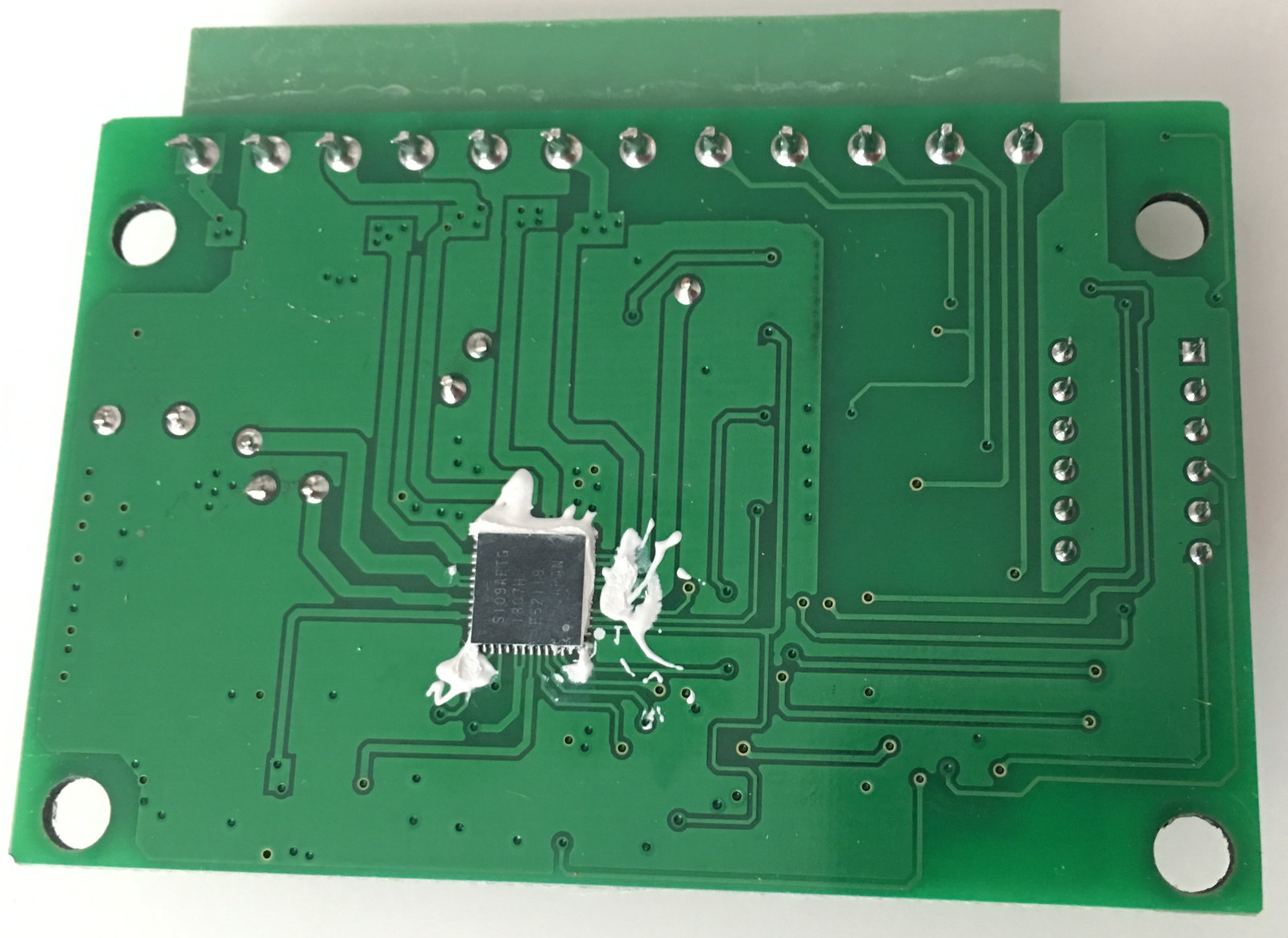

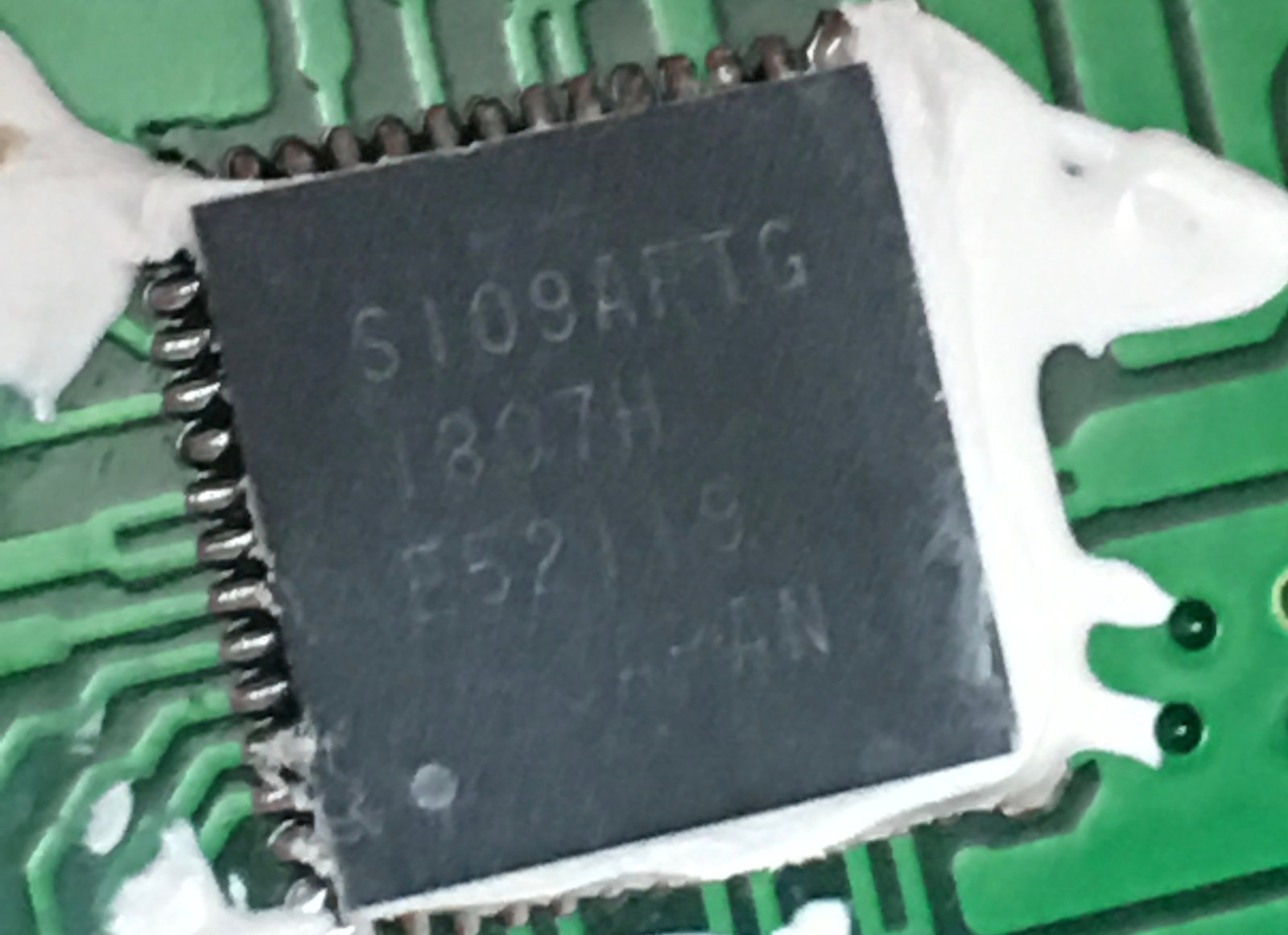

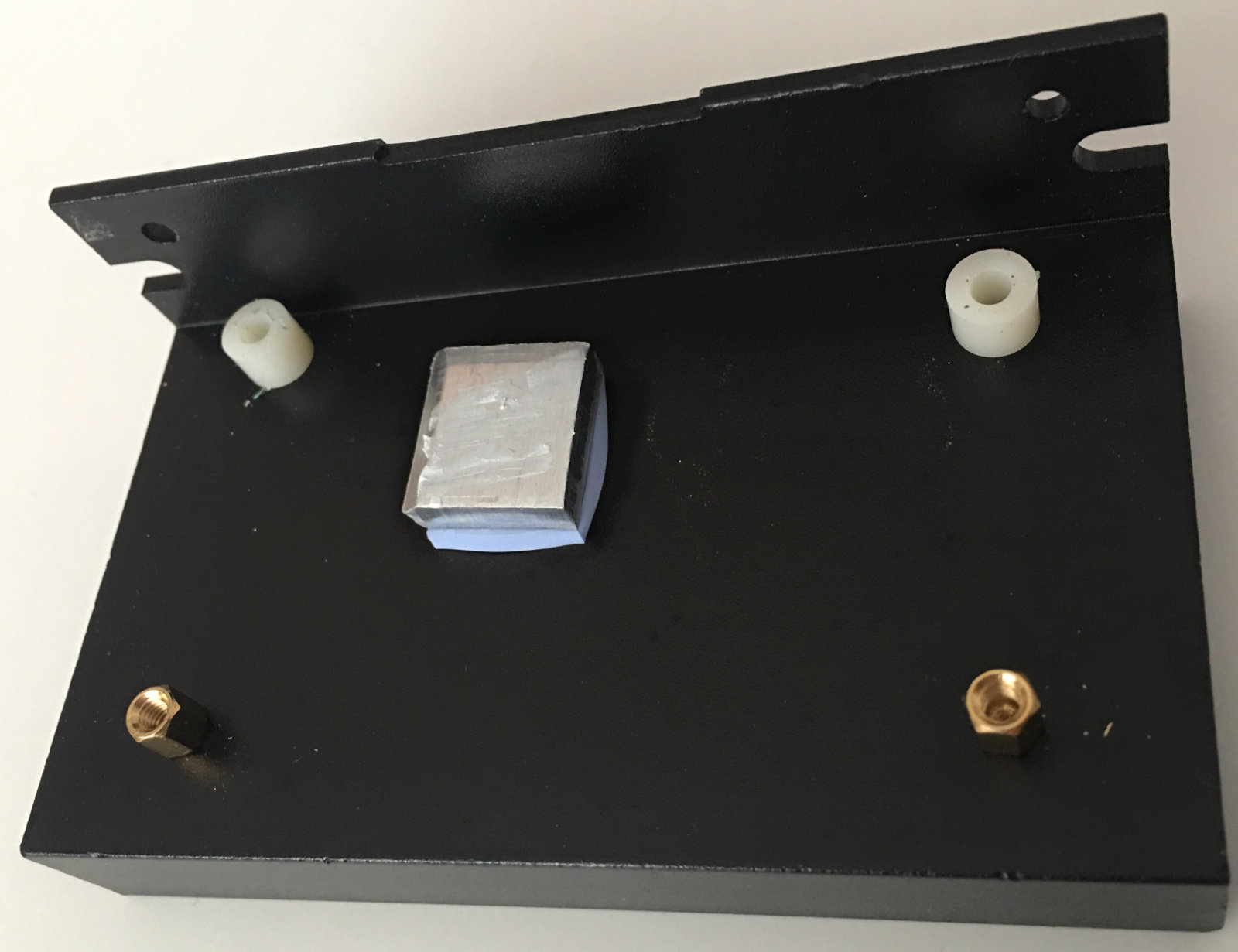

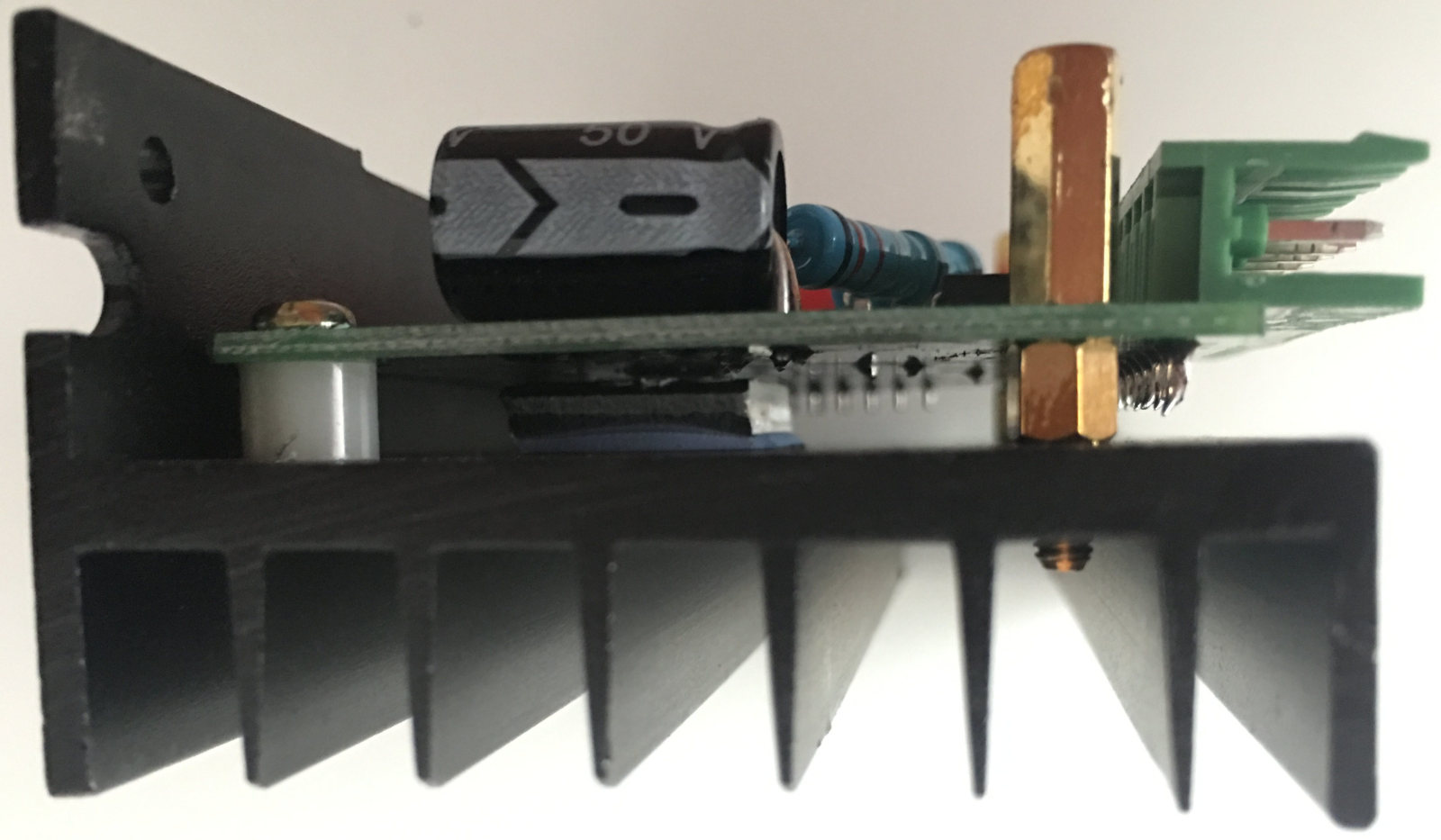

Unfortunately, even though the manufacturer says TB6600, the driver has TB67S109AFTG, which has 1A less max current and less recommended voltage. So it's a driver with IO TB67S109AFTG from Toshiba.

Parameters:

• Supply voltage range: +8 to 47V (DC)
• Recommended working voltage: max. +32V
• Maximum output current: 4.0A
• Continuous current setting
• The stationary current is automatically reduced by half
• Undervoltage, overcurrent, thermal and output short circuit protection
• Total on-state resistance (Ron) = 0.4 Ω (typ.)
• Microstepping: 1/2, 1/4, 1/8 and 1/16 of the basic step
• Maximum input voltage of all inputs: +7V
• Maximum frequency at STEP input: 200kHz
• PWM current control frequency: 40kHz
• Built-in pull-down resistors on inputs: 100 kΩ (typ.)
• Size: 91x76x36mm
• Weight: 156g

Wiring

Included in delivery:

• 1pc Driver TB6600 (TB67S109AFTG) for stepper motors 3A 47V

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
