DOMAN DM-S0090D 9g plastic micro servo, continuous

Code: LA143054C
€4,70 €3,88 excl. VAT
Skladem (48 pcs)
Delivery to:
16/12/2024

A continuous plastic micro servo that is capable of rotating a full 360°.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

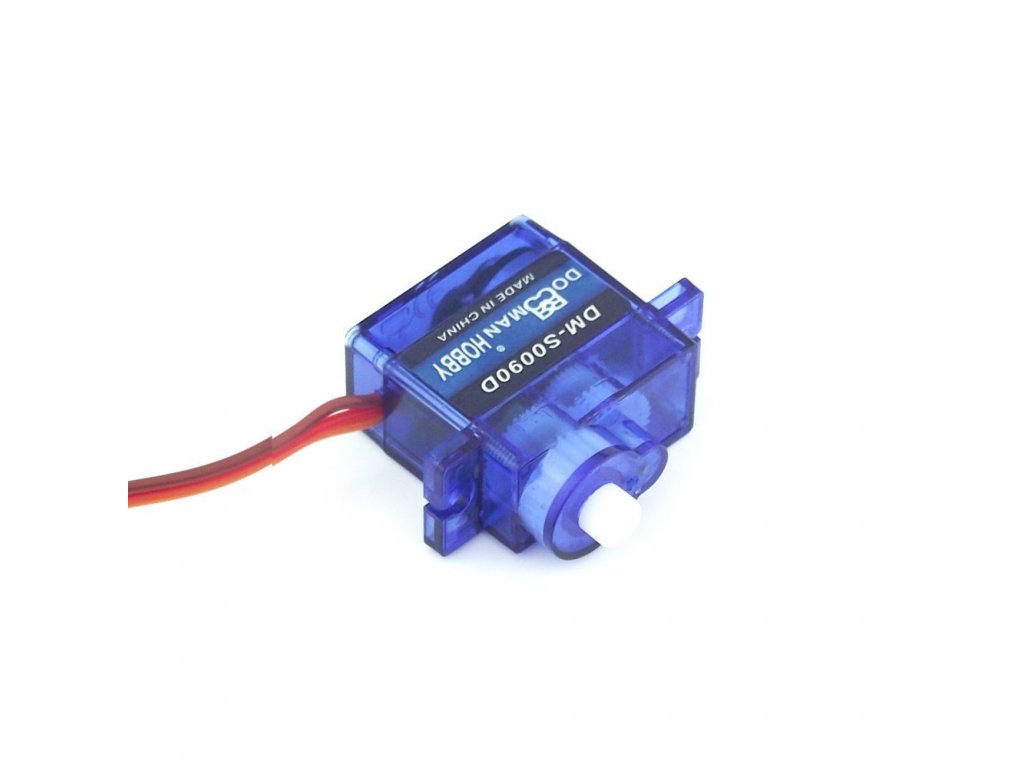

DOMAN Plastic micro servo DM-S0090D 9g, Continuous. Nylon gears

Upon further investigation, all cheap continuous servos are redesigned from 180 by simply removing the potentiometer, and thus it is impossible to accurately determine the servo position.

Servos of this type operate similarly to a DC motor with a gearbox. They are ideal for small robotic structures such as ride-on robots. The advantage is that you can easily set the direction and speed of rotation using servo.write(angle). The servo stops at 90 degrees. Entering a value less than 90 will cause the servo to spin one way and entering a larger value will cause it to spin the other way. The closer the value is to 180 or 0, the higher the servo speed (however, the maximum speed is usually reached at 160 or 20). If you want to get smoother control over the servo, we recommend using servo.writeMicroseconds(value), where we use 1500 us to stop the servo.

Smoother and better controlled operation than the SG90 servo.

Specifications:

  • Speed: 0.10s/60° (4.8V), 0.08s/60° (6.0V)
  • Standing torque: 1.6kg (4.8V), 1.8kg (6.0V)
  • Operating Voltage: 3.8-6.0V
  • Wire length: 150mm
  • Dimensions: 23x23x12mm
  • Weight: 14g
  • Color: blue

Included in delivery:

  • 1pc DOMAN DM-S0090D 9g plastic micro servo, continuous

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: Servo
Warranty: 2 years
Weight: 0.014 kg
