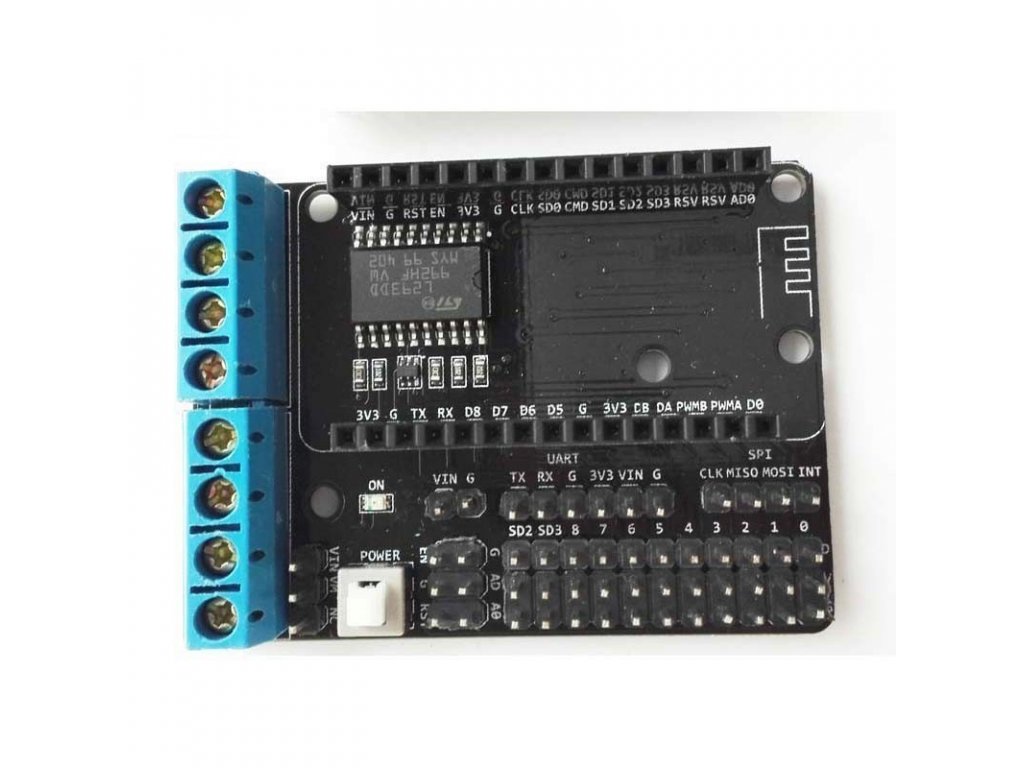

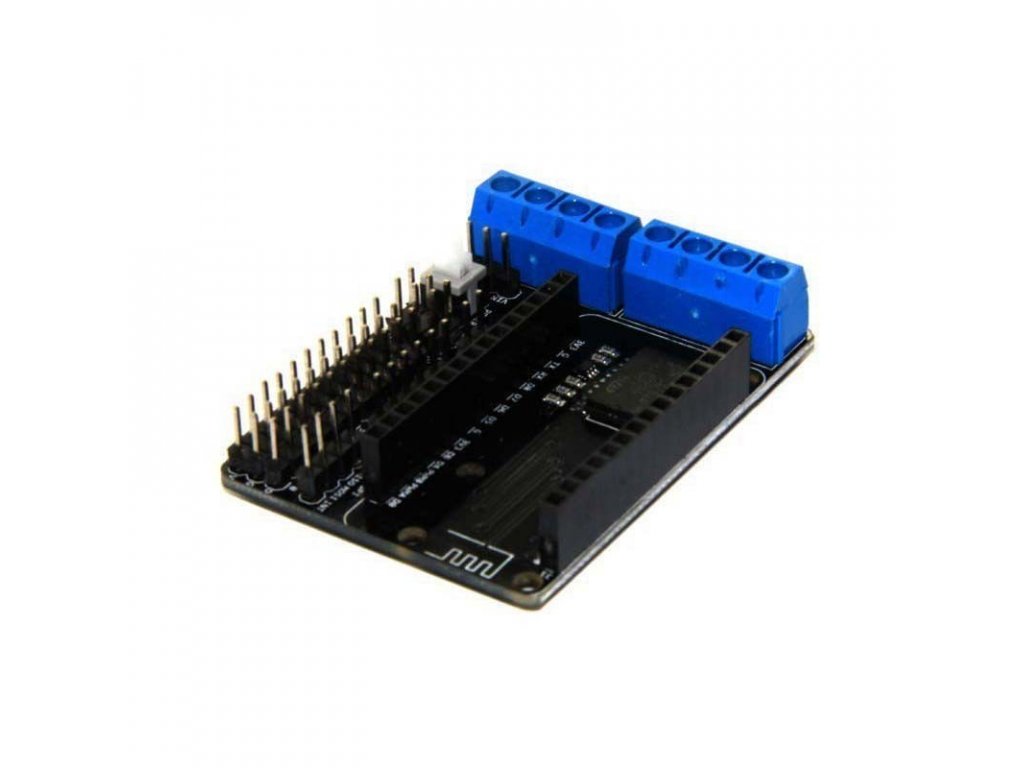

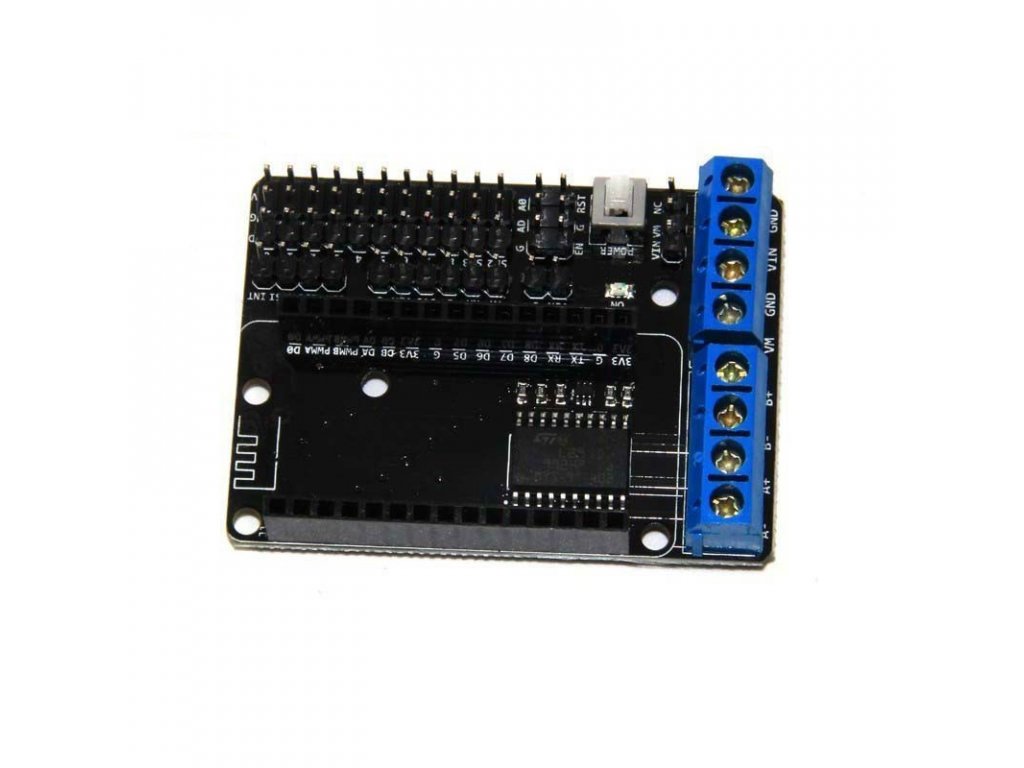

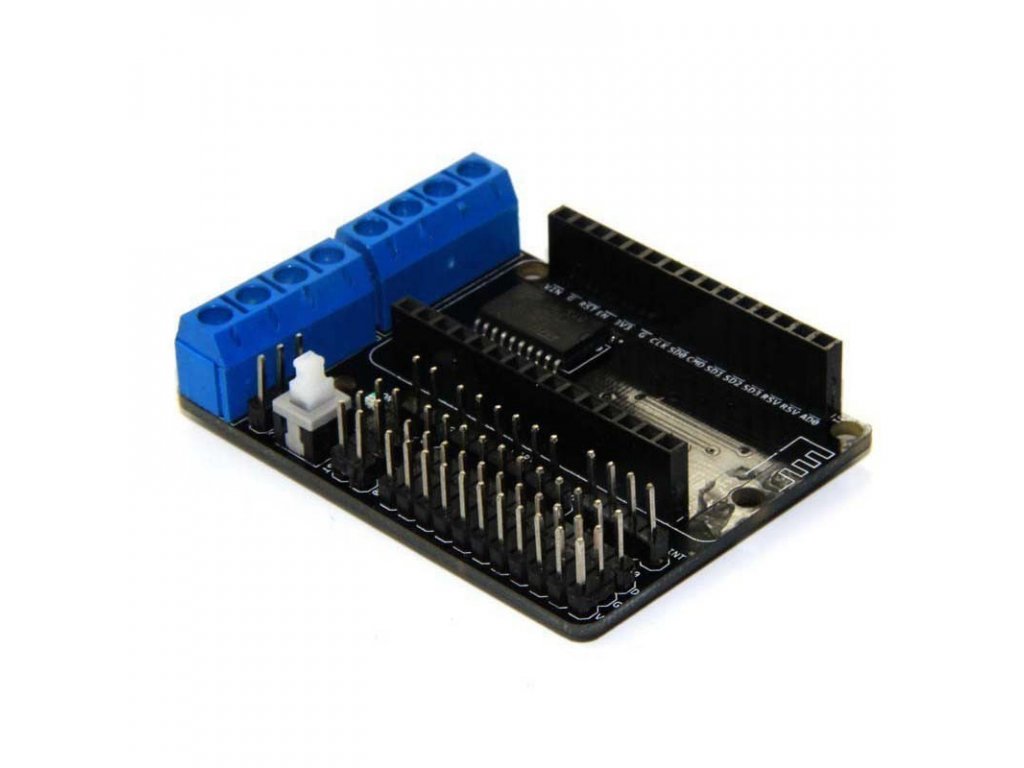

    DOIT Motor Shield L293D for NodeMCU Lua V2

    Code: LA110039
    Not rated
    DOIT Motor Shield L293D pro NodeMCU Lua V3
    €2,55 €2,11 excl. VAT
    Vyřazeno
    The item has been sold out…

    A shield that allows your NodeMCU board to control two DC or one stepper motor.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    foto 1
    IoT ESP8266 Lua NodeMcu Amica CP2102 WIFI module
    In stock (112 pcs)
    €2,90 excl. VAT
    €3,51

    NodeMCU board with ESP8266 module, which allows it to communicate via the Internet. The board is perfectly suited for IoT projects.

    LA100044

    Product detailed description

    DOIT Motor Shield will enable NodeMCU Lua ESP-12E (Lua NodeMcu Amica CP2102 and Lua NodeMcu V2) drive one or two motors (depending on the type of motor). Shield cannot be used alone. Usage: stepper motor / smart car / robot

    Specifications:

    • Driver: L293D
    • Supply voltage: 4.5-9VDC.
    • Motor voltage: 4.5-36VDC
    • Current consumption of the Io motor power supply: 600mA (1.2A surge).
    • MPD: 4W (T = 90°C)
    • ESP12E Dev Control Port Kit: D1, D3 (Motor); D2, D4 (B motor)
    • Short circuit protection
    • Operating temperature: -25°C - 130°C
    • Size: 69x53mm
    • Weight" 32 g

    Included in delivery:

    • 1pc DOIT Motor Shield L293D for NodeMCU Lua ESP-12E

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Retired
    Warranty: 2 years
    Weight: 0.015 kg
    Shield function: Motor control
    The item has been sold out…

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:
    J Avatar of author I2C 29/03/2023 10:01
    Zdravím. Které piny jsou vyhrazené pro I2C komunikaci? Je-li vůbec taková možnost. Děkuji
    Reply
    MF Avatar of author I2C 03/04/2023 11:21
    Dobrý den, u ESP8266 je I2C defaultně na pinech GPIO4 a GPIO5. Označení na desce je D1(GPIO5) a D2(GPIO4). GPIO4 = SDA, GPIO5 = SCL.
    JS Avatar of author pinout 15/12/2019 21:45
    Dobrý den, kde bych mohl sehnat pin layout pro GPIO? děkuji
    Reply
    PL Avatar of author 09/07/2022 10:19
    Zkus to tady https://www.laskakit.cz/lua-nodemcu-v3-io-shield/
