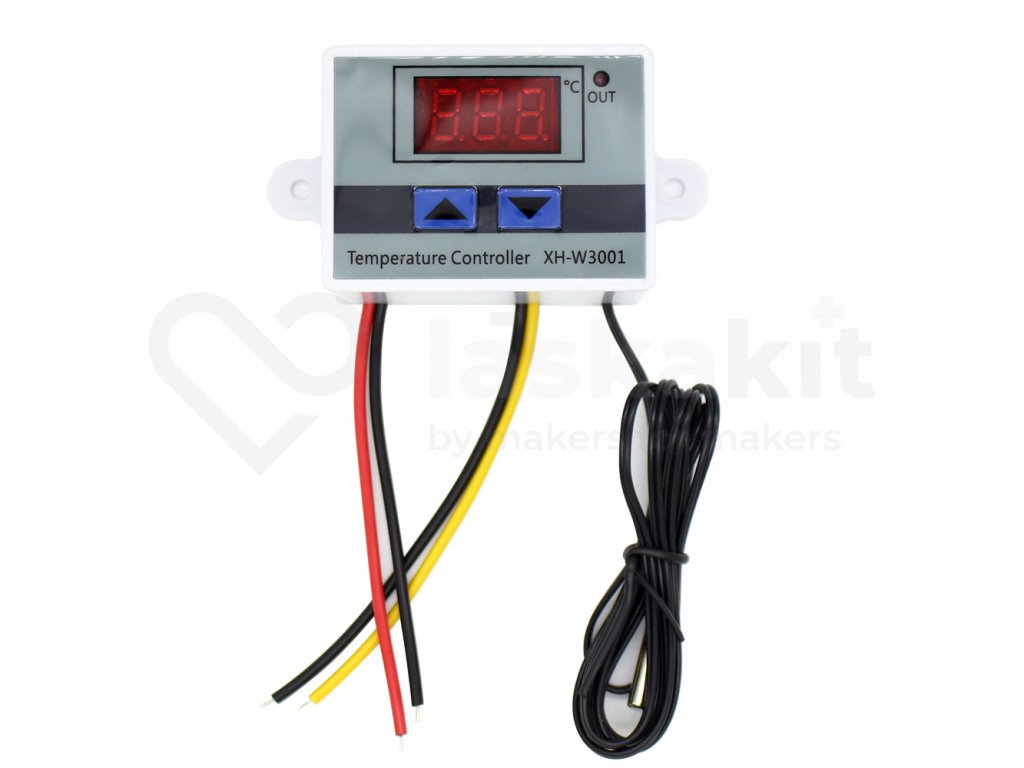

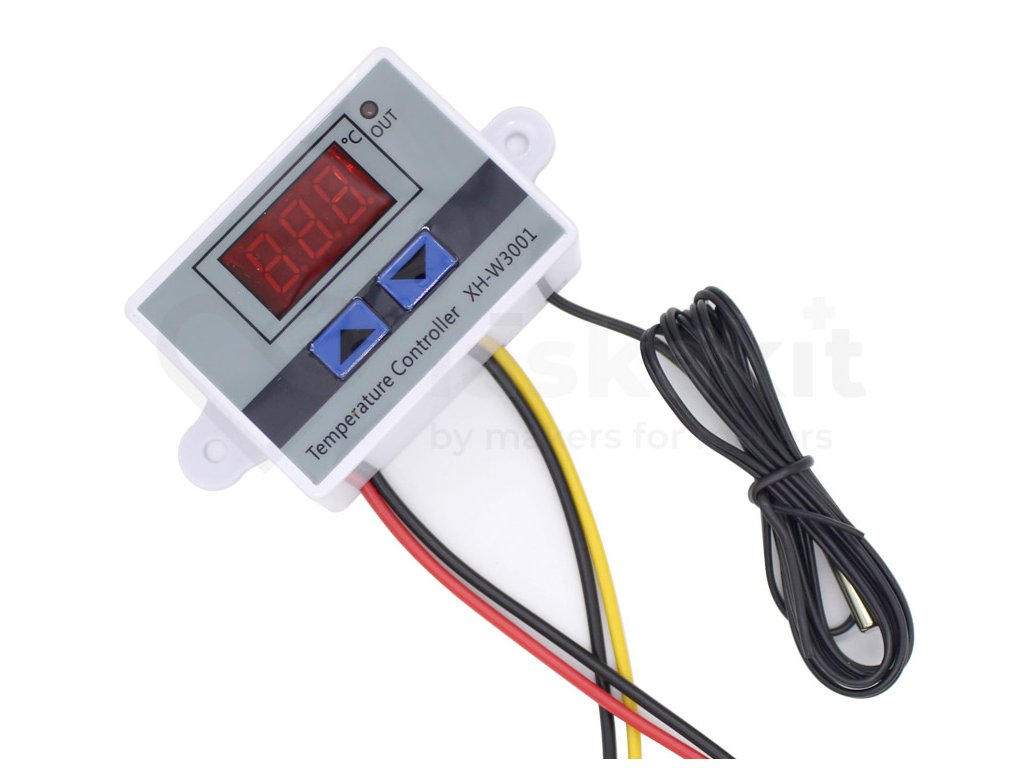

Digital thermostat XH-W3001, 220V AC

Product detailed description

Digital air temperature controller with NTC sensor. It displays the measured values on a 3-digit LED display and can be programmed as a thermostat - setting the temperature level to turn on the output relay and setting the temperature level to turn off. This allows you to switch the device on and off to adjust the temperature in the monitored area. Suitable e.g. for terrariums etc.

Specifications:

• Working voltage: AC 220V
• Output: in active state 220V AC via relay switching contact max. 1500W
• Measuring range: -50 to 110°C
• Resolution: 0.1°C (> 100°C: 1°C)
• Accuracy: 0.2°C over a range of -10° to 100°C
• Measurement frequency: 2 times per second
• Measuring sensor: NTC (10K 0.5%), waterproof
• Dimensions: 60x45x31mm

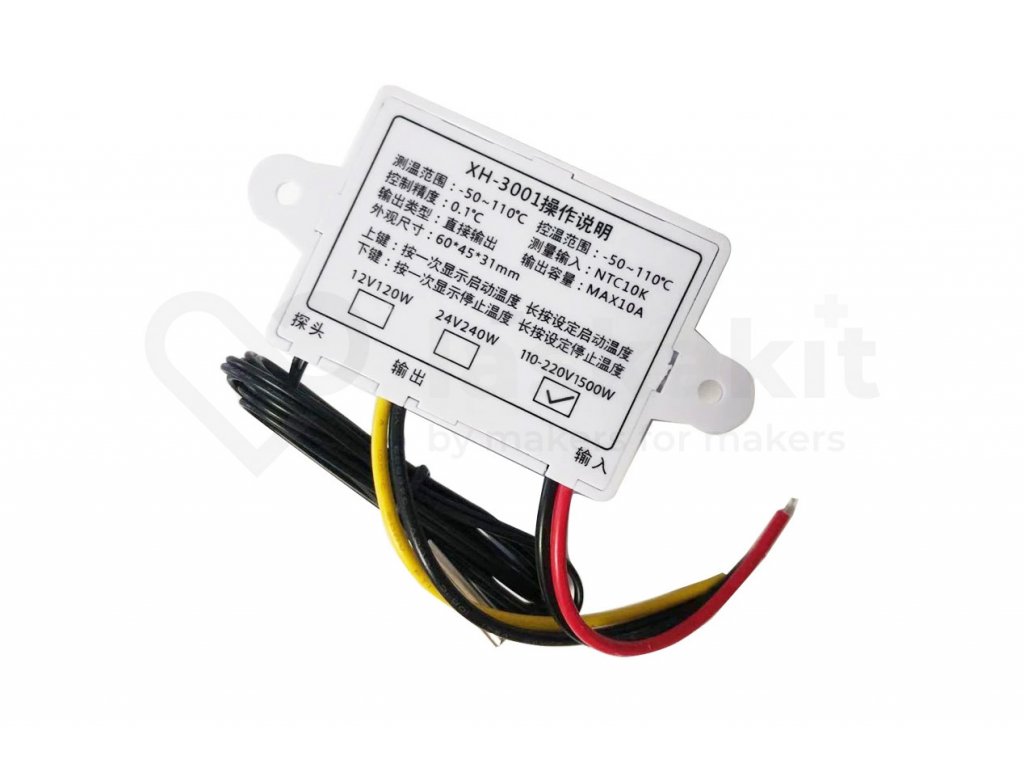

Connection:

• 230V power supply: red wire = L, black wire = N
• Switched device: black wire = N, yellow wire = L (switched)

Instructions for use:

The thermostat allows setting the temperature T1 and T2, where T1 is the temperature at which the thermostat turns on and T2 is the temperature at which the thermostat turns off. Thermostat shutdown is indicated by a red LED at the top right corner of the display (labeled "OUT").

• To set the T1 temperature, long hold the up arrow. Once the display starts flashing, you can use the arrow keys to adjust the switching temperature setting.
• To adjust the temperature of T2, hold down the down arrow for a long time. Once the display starts flashing, you can use the arrow keys to adjust the cut-off temperature setting.

Working modes:

• Heating mode (T1 < T2): when the device is switched on, the thermostat output is switched on until the measured temperature reaches T2. Once the measured drops to the T1 level, the output is reactivated.
• Cooling mode (T1 > T2): when the device is switched on, the output is inactive until the measured temperature reaches the T1 level. Then the output is activated until the measured temperature reaches the T2 level.

Included in delivery:

• 1pc Digital thermostat XH-W3001, 220V AC

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
