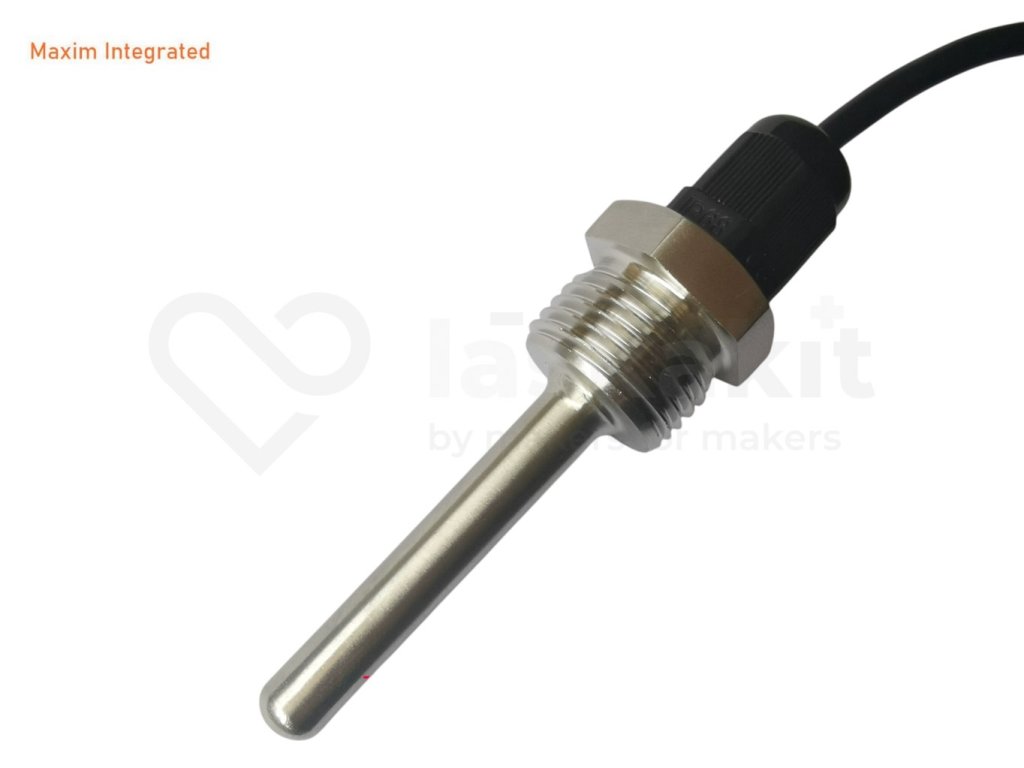

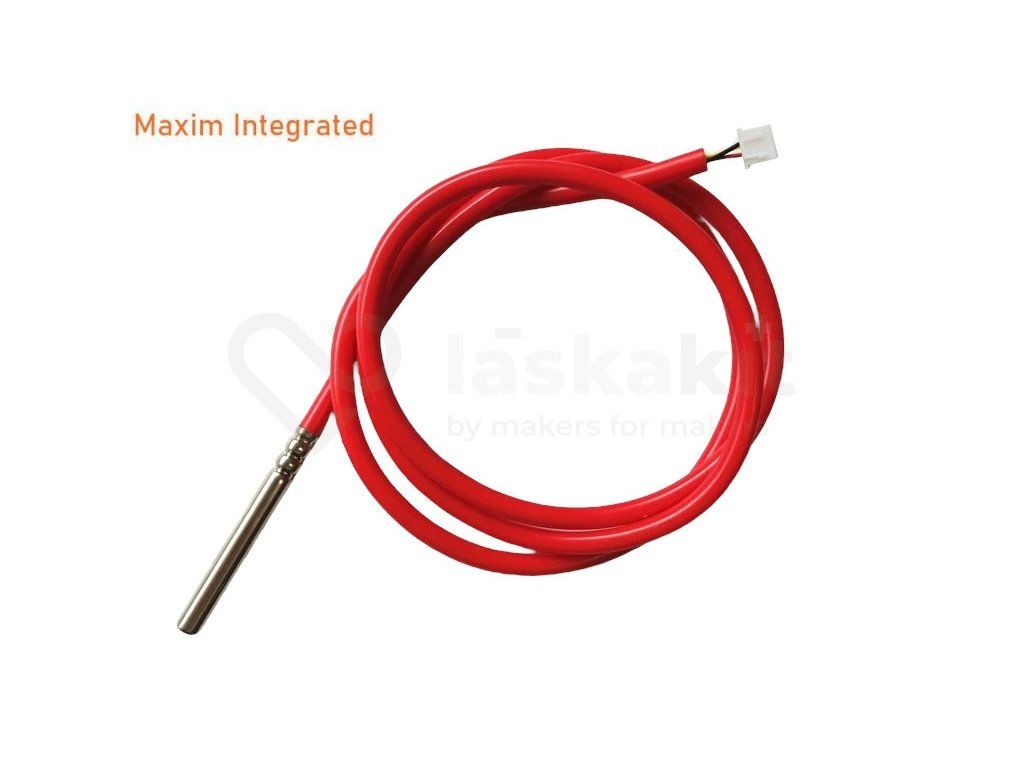

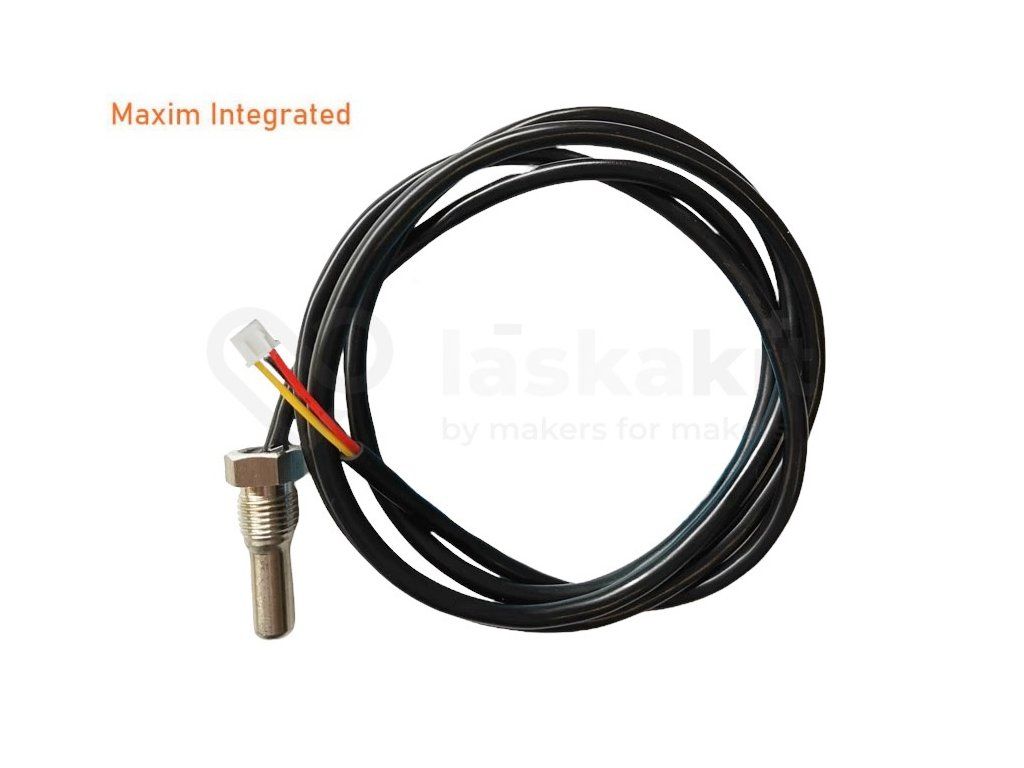

Dallas DS18B20 orig. digital waterproof temperature sensor 1m

Product detailed description

Datasheet Dallas DS18B20

DS18B20 datasheet is available in the "Related files" tab.

Popular digital temperature sensor with Maxim Integrated DS18B20, works in normal and parasitic connection!

The sensor is calibrated to an accuracy of 0.2 degrees. This waterproof design allows you to plunge the sensor directly into the liquid and accurately detect the temperature. The digital sensor returns the temperature directly by value, so there is no need to recalculate it. Possibility to connect up to 50 sensors on one cable in a row. Each sensor has its specific unique address.

Specifications:

• Chip: DS18B20 orig.
• Connector: JST-XH-3
• Temperature range: -55 to +125 °C.
• Normal and parasitic connections!
• Accuracy: 0.2°C.
• Power supply: 3.0-5.5V
• Cable length: 1m
• Size of stainless steel part: ø6x50mm
• Cable diameter: 4mm
• Wiring: red: VDD, black: GND, yellow: DQ

Included in delivery:

• 1pc Dallas DS18B20 original digital waterproof temperature sensor 1m

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
