DS18B20 Digital waterproof temperature sensor 1m

Product detailed description

Datasheet Dallas DS18B20

DS18B20 datasheet is available in the "Related files" tab.

Clone of the popular DS18B20 digital temperature sensor, works only in normal wiring, parasitic wiring is not supported. The sensor is calibrated to an accuracy of 0.2 degrees. This waterproof design allows you to plunge the sensor directly into the liquid and accurately detect the temperature. The digital sensor returns the temperature directly by value, so there is no need to recalculate it. Possibility to connect up to 50 sensors on one cable in a row. Each sensor has its specific unique address.

Specifications:

• Temperature range: -55 to +125 °C.
• Accuracy: 0.2°C.
• Power supply: 3.0-5.5V
• Cable length: 1m

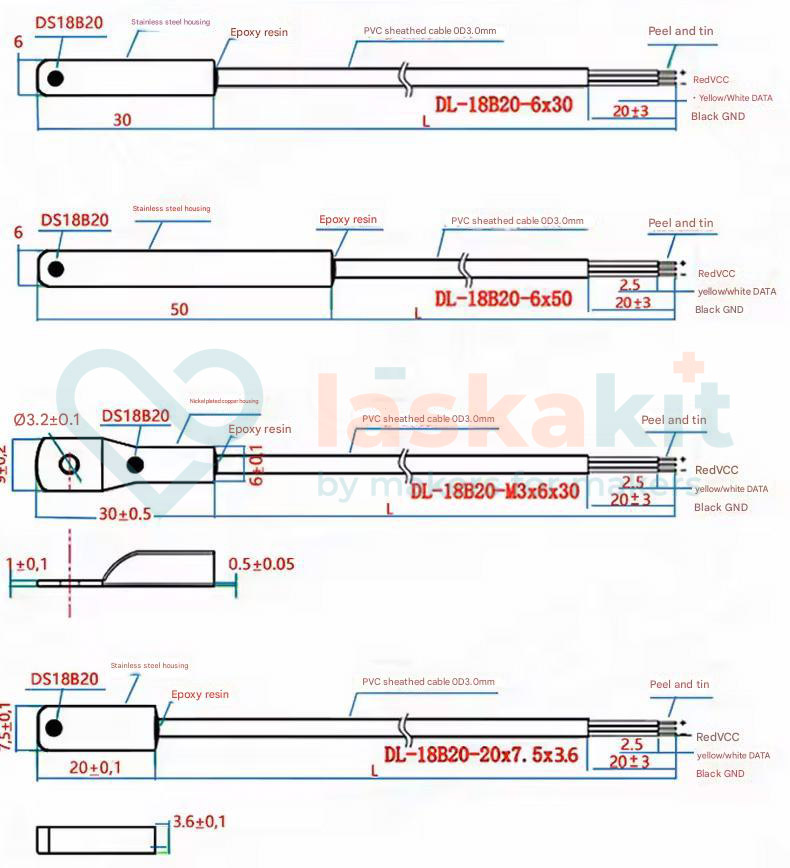

• Size of stainless steel part: ø6x50mm
• Cable diameter: 4mm
• Wiring: red: VDD, black: GND, yellow: DQ

Included in delivery:

• 1pc Digital waterproof temperature sensor DS18B20 1m

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
