BlackPill ARM STM32 STM32F411CEU6 Development Board

Product detailed description

Arduino Nano format development board with ARM®Cortex®-M4 STM32F411CEU6 microcontroller

The STM32F411xx microcontroller series includes a high-performance 32-bit ARM®Cortex®-M4 RISC core operating at up to 100MHz, high-speed embedded memories (Flash memory up to 512kB and SRAM up to 128kB), a rich number of enhanced I/O ports and peripherals connected to two APB buses. The microcontrollers offer a 12-bit ADC, up to 11 universal 16-bit timers plus two 32-bit timers up to 100MHz, as well as standard and advanced communication interfaces: up to three I2C, five SPI/I2S, three USART, USB.

These features make the STM32F411xx series of microcontrollers suitable for a wide range of applications such as motor drives, control applications, medical and handheld devices, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video telephones and more.

With its selection of specific components and compact dimensions, this development board is very suitable for beginners who are looking for a more powerful alternative to the Arduino Nano development board. Several development environments are available for this board, including Arduino an IDE. To program the board, you can use the ST-Link V2 programmer (or its clone) or the USART Bootloader.

Specifications:

• STM32F411CEU6 microcontroller
• CPU frequency up to 100MHz
• FLASH 512KB
• SRAM 128KB
• 1 x 12bit ADC (0 - 3.6V, 10 channels)
• 1 x DMA 16 streams
• 8 x timer:
  • 5 x 16bit timers, each with up to 4 IC/OC/PWM or pulse counter inputs and a quadrature (incremental) encoder input
  • 1 x 32-bit with up to 4 IC/OC/PWM inputs or pulse counter and quadrature (incremental) encoder input
  • 1 x Advanced Timer
• 3 x I2C (SMBus/PMBus)
• 3 x USART (ISO 7816 interface, LIN, IrDA, modem control)
• 5 x SPI/I2S
• 1 x USB 2.0 full-speed
• 1 x SDIO
• 1 x Real Time Circuit - RTC
• CRC calculation unit, 96-bit unique ID
• Oscillators, reset and power management:
  • Power supply 2.0 - 3.6 V
  • Power-on Reset, Power-down Reset and Programmable Voltage Detector (PVD)
  • External 4 - 26MHz oscillator for CPU
  • Internal 16MHz oscillator for CPU
  • Internal 32kHz oscillator with calibration for RTC
  • PLL for CPU clocking
  • External 32.768 kHz oscillator with calibration for RTC
• Low power mode:
  • Sleep, Stop and Standby mode
• VBAT input for power backup for RTC and backup registers

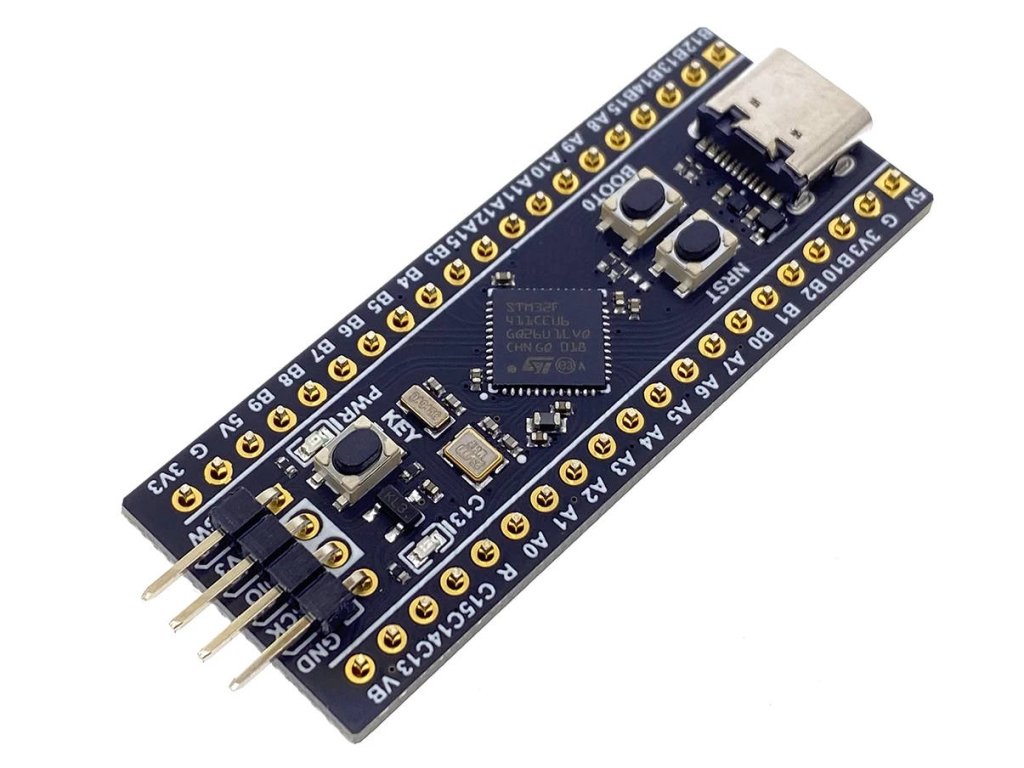

Development board

• Plate dimensions 53mm x 22mm. Pin spacing corresponds to a standard 40pin DIP bushing - breadboard friendly
• In addition to the microcontroller, the following components are integrated on the board:
  • Power source 3.3V 300mA
  • 25MHz crystal for CPU
  • Crystal 32.768kHz for RTC
  • Programming method selection button - BOOT0
  • Reset button
  • Button usable in the program - KEY connected to pin PA0
  • USB-C connector - power and data
  • SWD connector - programming and debugging with ST-Link V2 programmer
  • LED indicating 3.3V power supply
  • LED connected to pin PC13
• The board can be powered using the USB-C connector or the power pins

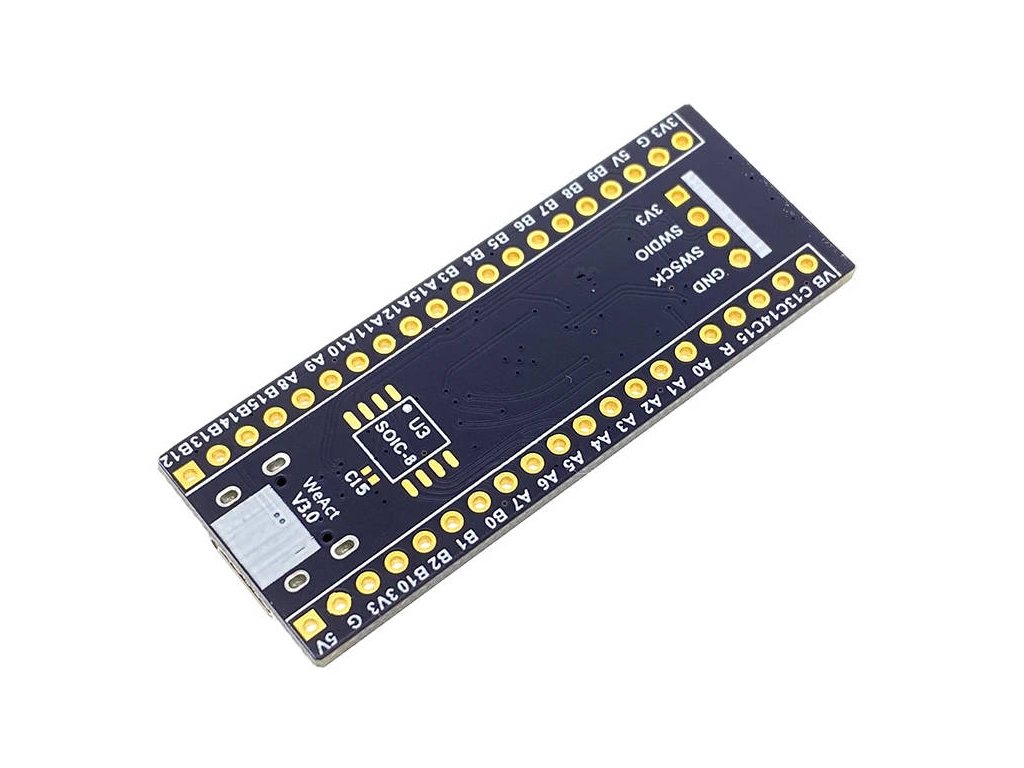

Connection of outlets:

Delivery components:

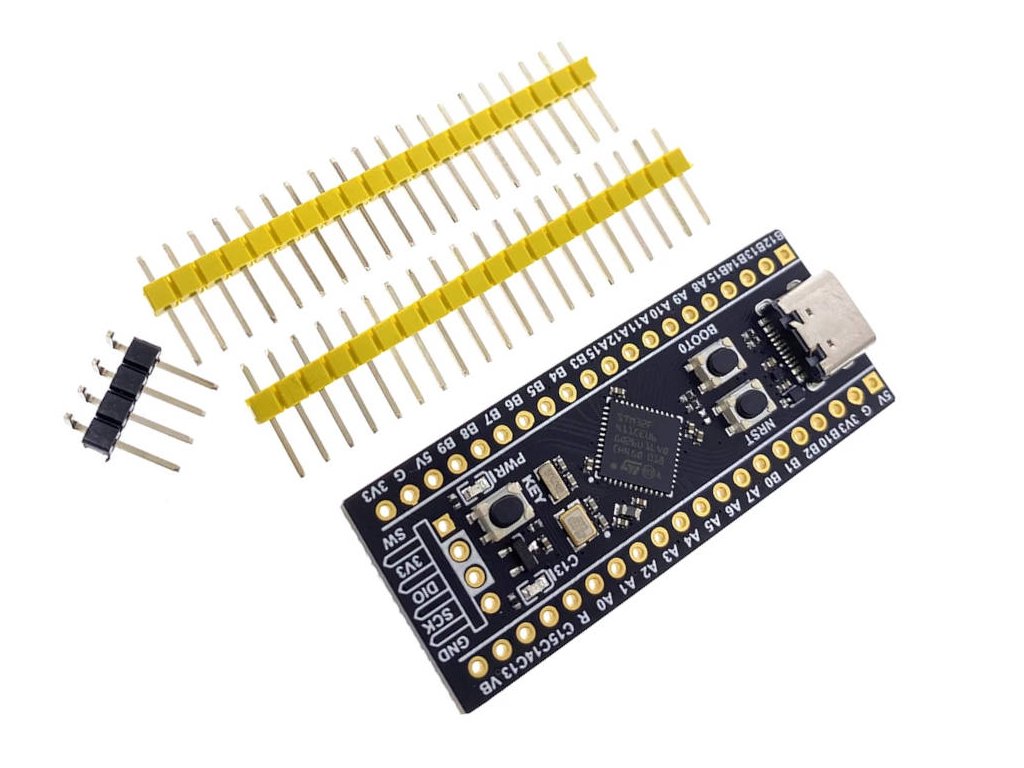

• 1pc BlackPill ARM STM32 STM32F411CEU6 Development Board
• 2 pcs 20pin pin bar
• 1pc 4pin angle pin strip

Remark:

• The pins are not soldered in the board, but are included in the package.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
