BIGTREETECH TMC2130 V3.0 SPI driver for stepper motors
Stepper motor driver TMC2130 with SPI interface or standard DIR/STEP. In DIR/STEP mode it is pin compatible with other drivers. Microstepping up to 1/256 step makes it ideal for the design of very quiet devices.
In the basic settings the SPI mode is active (SPI jumper not connected):

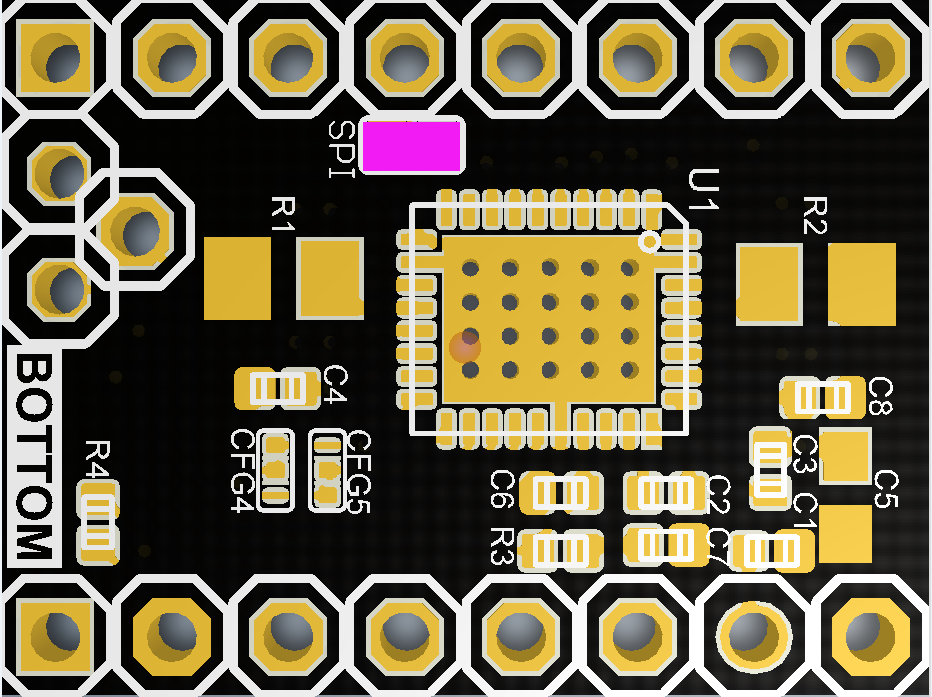

For switching to DIR/STEP mode the SPI jumper is used (jumper connected):
Parameters:
- SPI interface, optional standard DIR/STEP
- Adjustable current limit
- Max current 1.2A, peak up to 2A
- Thermal protection
- Current protection
- Resolution up to 1/256 step
- Supply voltage 12/24V
- SPI pin voltage: 3.3/5V
Included in delivery:
- 1pc BIGTREETECH TMC2130 V3.0 SPI driver for stepper motors
- 1pc Cooler
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Sources:
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.008 kg |
