GeB LiPol Battery 401012 30mAh 3.7V JST-PH 2.0

Code: LA123002
€3,50 €2,89 excl. VAT
Skladem (136 pcs)
Delivery to:
16/12/2024

Lipo cell with a capacity of 30mAh and nominal voltage of 3.7V.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

Lithium polymer (also known as "lipo" or "lipoly") batteries are thin, lightweight and powerful. The output ranges from 3.7 to 4.2V when fully charged. This battery has a capacity of 30mAh, a total of around 0.12Wh. If you need larger batteries, we have a range of LiPoly batteries.

The battery includes a protection circuit that keeps the battery voltage from getting too high (overcharging) or too low (over-discharging), which means the battery will be disconnected once it is discharged to 3.0V. This circuit also protects the battery from short circuit. However, even with this protection, it is very important that you only use a LiIon / LiPoly CV/CC charger and charge with a max current of 30mA or less. We do not recommend using our TP4056 Li-ion cell charger because it has a minimum current of 130mA .

Like most LiPo cells, the batteries we sell do not have thermistors built in. This is why we suggest charging at 0.2C or even less.

Product Description:

  • Type: LiPol 401012
  • Capacity: 30mAh (measured at 0.2C)

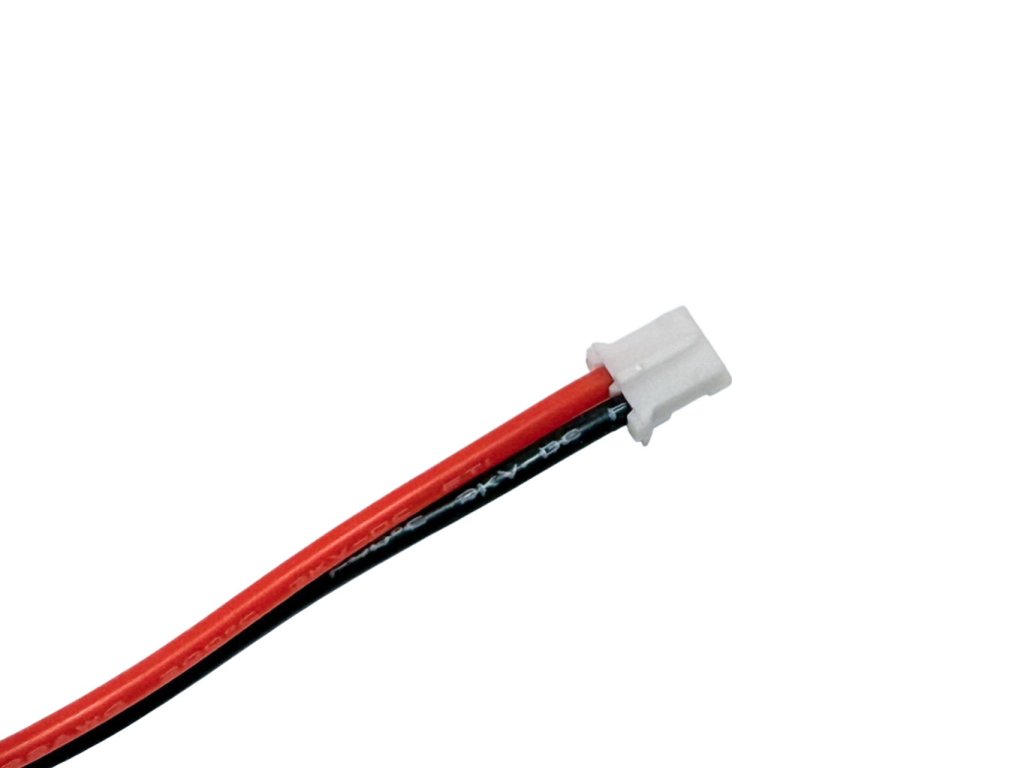

  • 5cm JST-PH connector
  • Voltage: 3.7V
  • Charging current: Standard 6mA (0.2C), Fast: 30mA (1C)
  • Discharge current: max. 15mA(0.5C)
  • Charging voltage: 4.2V
  • Protection against complete discharge: 2.75V
  • Overcharge protection: 4.26V
  • Discharge temperature: -20 to 60°C
  • Dimensions 12x10x4mm
  • Weight: 2.5g

Included in delivery:

  • 1pc GeB LiPol Battery 401012 30mAh 3.7V JST-PH 2.0

Notes:

  • The battery or accumulator that may be included in the product is subject to a six-month lifetime as it is a consumable.
  • Due to the nature and characteristics of Lithium Polymer batteries, these batteries are not returnable, and LaskArduino is not responsible or liable for any damage, defects, injury, fire, skin burns, or any other consequences that may occur from the improper use of these batteries or any device or item with which you use the battery, including following or using any instructions, directions, or advice of any kind from LaskArduino or others. By purchasing this product you accept the previous.
  • Do not use with NiMH/NiCd chargers! Also, do not overload, short circuit, bend or destroy these batteries. Never charge or use unattended. Always check the battery and circuits for damage, broken wires and short circuits. Like all polymer batteries - they should be used by professionals.
  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

The manufacturer of our lithium batteries gives the following warnings and cautions:

  • Do not immerse the battery in water or other liquids. Keep the battery in a cool, dry place
  • Do not use or store the battery close to any heat source
  • Use a charger that clearly states that it is compatible for charging the battery and has appropriate charge protection (voltage, current)
  • Do not install the battery with reverse polarity
  • Do not connect the battery to an electrical outlet or other incompatible source
  • Do not throw the battery into fire
  • Do not short-circuit the battery = do not connect the positive and negative poles to each other with conductive material
  • Do not transport or store batteries with metal objects such as hair clips, necklaces, or any other conductive object or material,
  • The battery must not be mechanically damaged, so do not throw it, squeeze it, puncture it, etc.
  • Lithium batteries should only be used with voltage, current, and thermal protection
  • Do not use or leave the battery in a high temperature environment (e.g. in direct sunlight or in a vehicle in hot weather). Failure to heed this warning may result in battery overheating and/or fire or explosion. It will also reduce battery capacity and affect battery life
  • If electrolyte spills and gets into the eyes, rinse and wash eyes with clean water and seek medical attention immediately
  • If the battery smells, gets hot, changes color or shape, or in any way shows abnormal changes during use, charging or storage, remove it immediately from the charger, devices and stop using it
  • If the battery contacts are dirty, clean the contacts with a dry cloth before use
  • Be aware that discarded batteries can cause a fire or explosion. For this reason, before disposing of the battery, insulate the battery contacts with a suitable insulating material, e.g. insulating tape

Additional parameters

Category: Batteries & Accumulators
Warranty: 6 měsíců
Weight: 0.001 kg
5
2x
4
0x
3
0x
2
0x
1
0x
Do not fill out this field:
5
DM Avatar of author | 16/07/2023
Funguje presne tak ako to má fungovať, som spokojný.
5
RA Avatar of author | 15/11/2021
Baterie jsem použil do bluetooth sluchátek QCY T1C (špunty). Baterie rozměrově přesně pasovala a kapacita je také dostačující. Zatím spokojenost.
Do not fill out this field:
OK Avatar of author Nabíjení baterky 09/06/2023 09:46
Zdravím, v bateriích se zas tak moc nevyznám a proto potřebuju radu s tím jak tuto 30mAh baterii bezpečně nabít. Máte tu nějaké nabíječky baterií co jí budou schopné nabít bezpečně? Předem děkuji za odpověď.
Reply
MF Avatar of author Nabíjení baterky 12/06/2023 10:57
Dobrý den, bohužel v tuto chvíli nemáme v nabídce nabíječku pro tak malé baterie. Hledáme však vhodný modul, který by to umožňoval.
