YF-S201 water flow meter 1-30L/min

Product detailed description

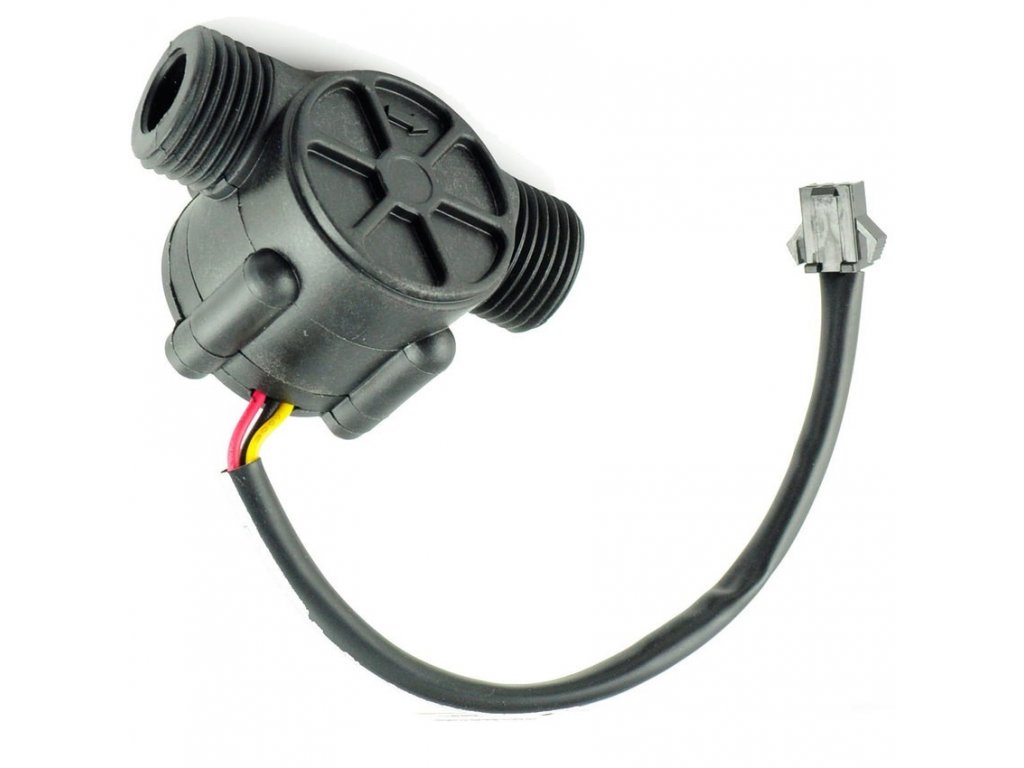

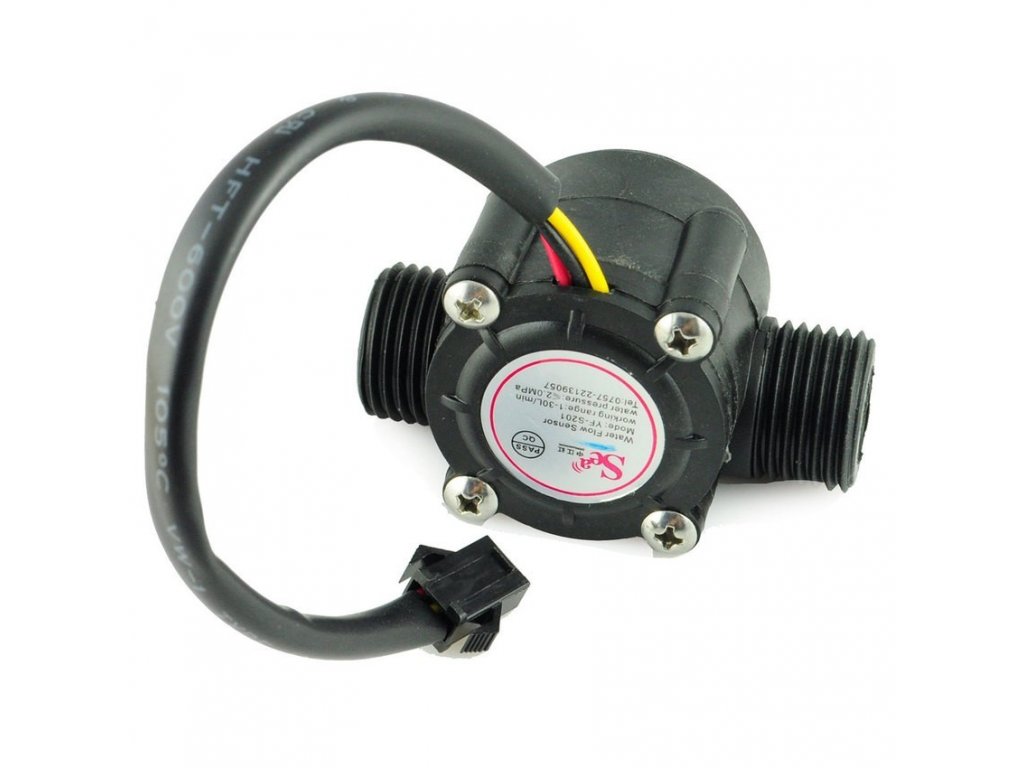

YF-S201 Water flow meter 1-30L/min

The plastic flowmeter allows to measure the amount of flowing liquid with the help of a Hall probe.

At the output, the frequency changes depending on the flow rate, the higher the flow rate, the higher the frequency. Can be used up to a maximum liquid temperature of 80°C.

Specifications:

• Thread: G 1/2”
• Measured flow rate: 1~30 liters/m
• Max. working pressure: 1.75MPa
• Output: 5V TTL
• Max. working temperature: up to 80°C
• Operating humidity: 35%~90% RH (no frost)
• Power supply: 5-18VDC
• Max. consumption: 15mA
• Pulse characteristic: 450 pulses/litre or f (Hz) = 7.5* flow rate (l/min)
• Measurement accuracy: 2%

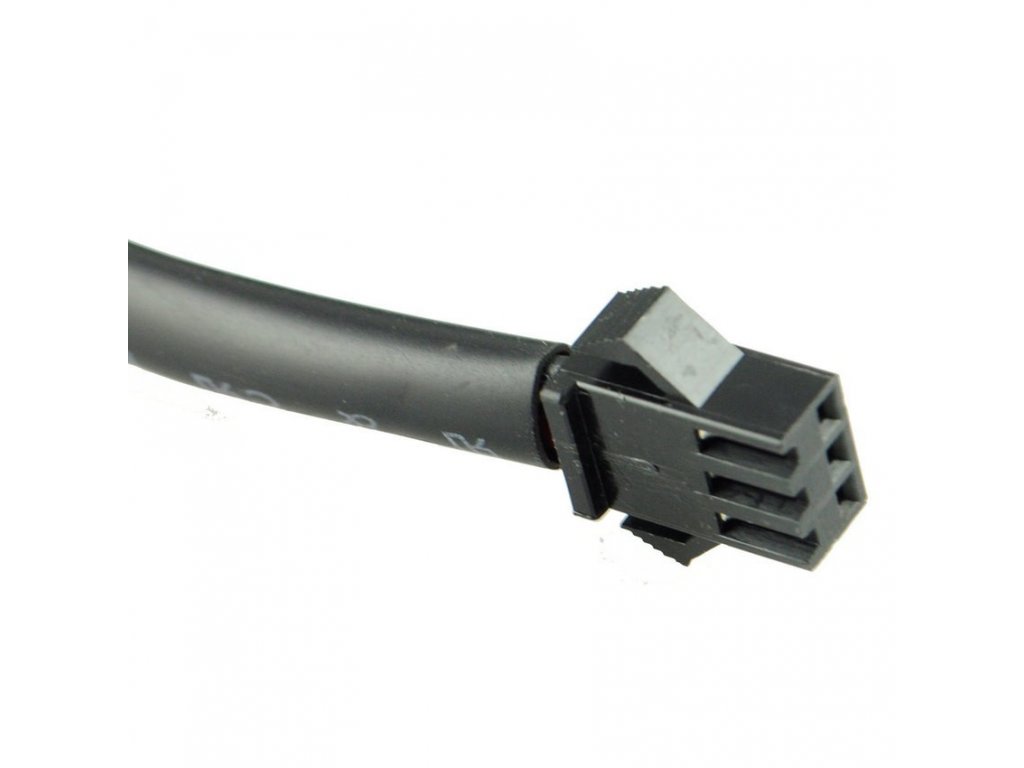

• Cable length: ~15cm
• Colour: black
• Dimensions: 65 x 40mm

Dimensions

Included in delivery:

• 1pc YF-S201 water flow meter 1-30L/min

Sources:

Instructions in English

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Magnetic materials in the vicinity may affect the measurement
