Description
Product detailed description

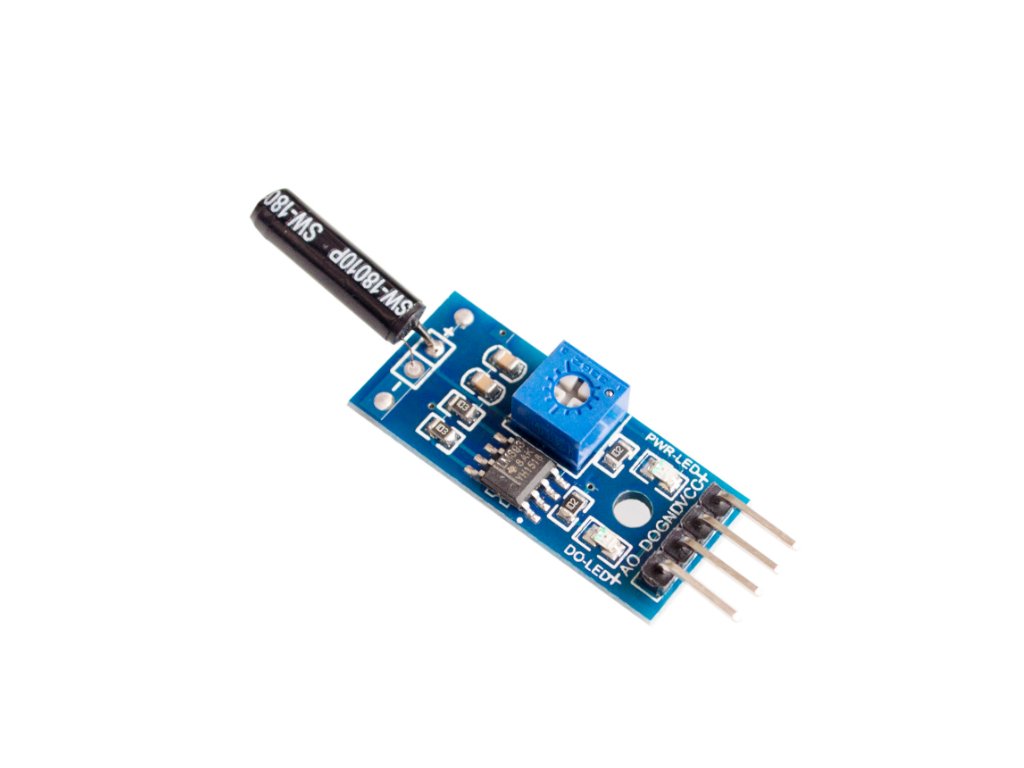

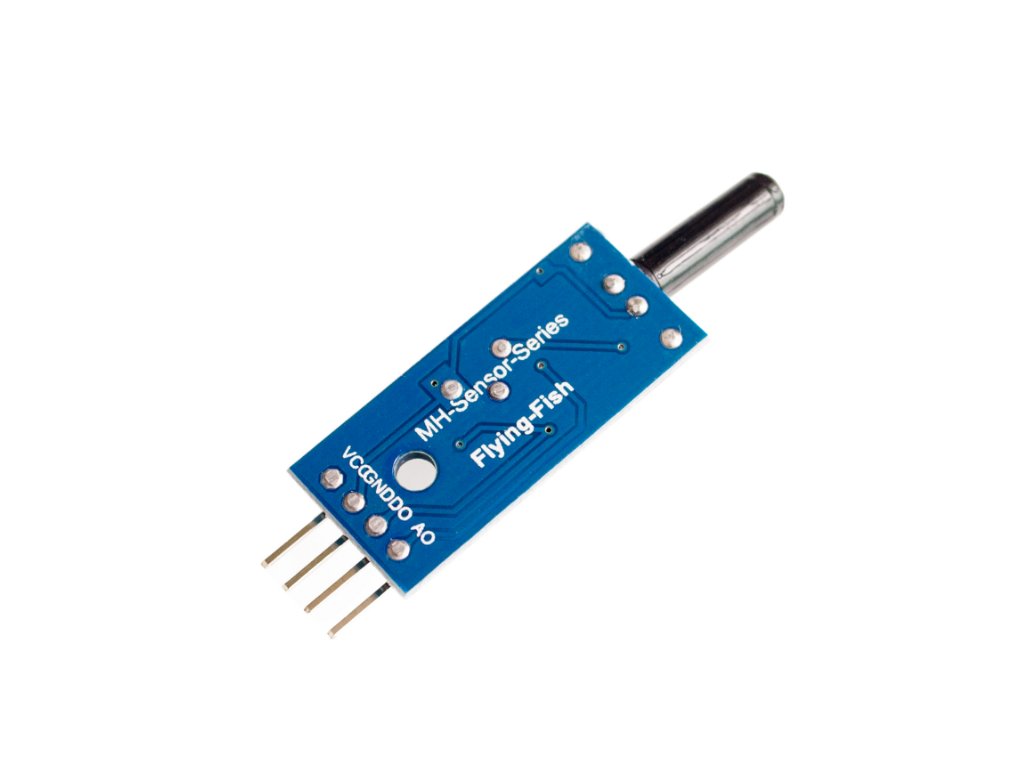

Vibration sensor module. Adjustable sensitivity, digital output. Digital output and power is indicated by 2 LEDs. The output can be connected directly to a relay switched by log 0.
Specifications:

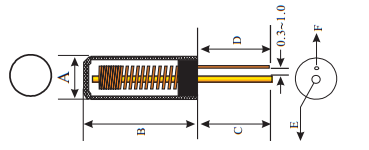

- Sensor: SW-18010P
- Analog output
- Comparator: LM393
- Logic current: 15mA
- Supply voltage: 3.3-5V
- Size: 32x14mm
Included in delivery:
- 1pc Vibration sensor with LM393
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Motion, Distance, & Vibration Sensors |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.004 kg |
| Output: | Digital, Analog |
| Sensor type: | I shake |
Ano
-
LM393 Datasheet (113 kB)
