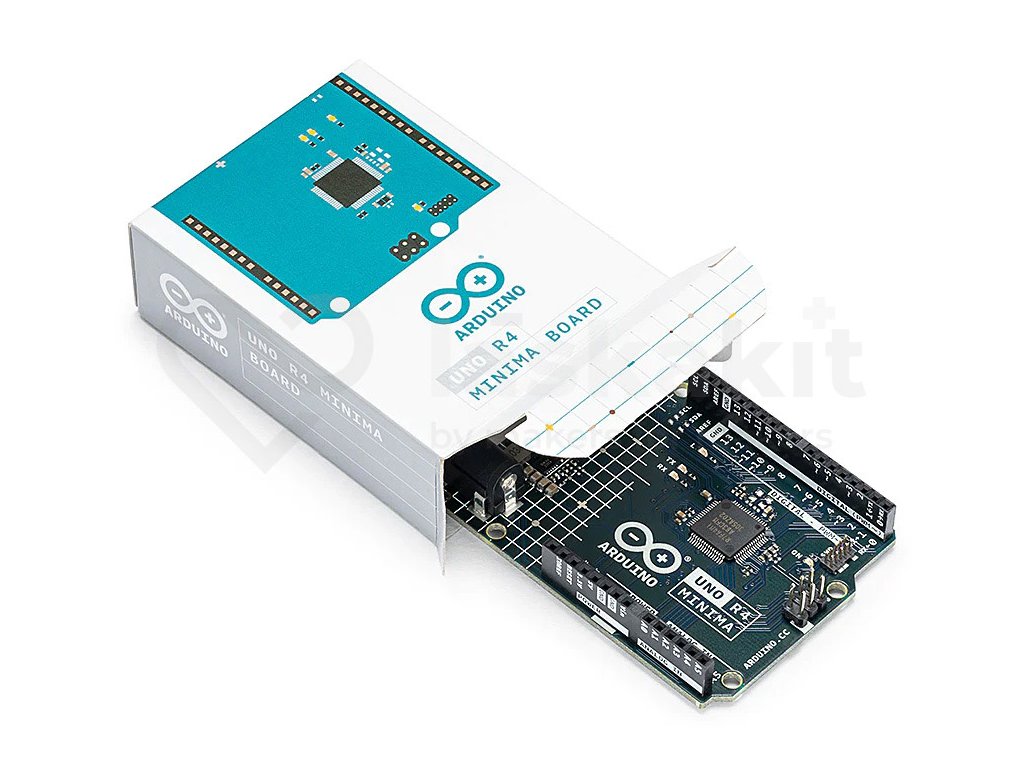

    Arduino UNO R4 Minima, original

    Code: LA100013M
    Not rated
    Brand: Arduino
    LaskaKit arduino uno r4 minima 4
    €21,02 €17,37 excl. VAT
    Skladem (43 pcs)
    Delivery to:
    16/12/2024

    Arduino The UNO R4 has a 32-bit ARM Cortex-M4F 48 MHz Renesas RA4M1 processor. The older R3 had an 8-bit ATmega328 processor. The new R4 is 3-16x faster and offers more memory. The memory on R4 is 32 kB SRAM, 256 kB flash and 8 kB flash for data.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    Arduino The UNO R4 has a 32-bit ARM Cortex-M4F 48 MHz Renesas RA4M1 processor. The older R3 had an 8-bit ATmega328 processor. The new R4 is 3-16x faster and offers more memory. The memory on R4 is 32 kB SRAM, 256 kB flash and 8 kB flash for data.

    Dimensions and connectors remain the same as R3. The new power supply can be supplied at 7-24 V via the power connector or 5 V via USB-C. In addition, the R4 has a new 12-bit DAC and CAN bus support.

    ABX00080-pinout

    New features:

    • USB-C connector
    • RA4M1 processor from Renesas (Arm ® Cortex ®-M4)
    • HID mode support
    • Power up to 24V
    • CAN bus
    • 12 bit DAC
    • OP amplifier

    Specifications:

    • MCU: Renesas RA4M1 (Arm® Cortex®-M4)
    • Memory:
      • 256KB Flash
      • 32KB SRAM
    • Working voltage: 5V
    • Supply voltage: 6-24V
    • Frequency: 48MHz
    • Programming connector: USB-C
    • Outputs:
      • Digital Pins: 14
      • PWM: 6
      • ADC: 6 (14 bits)
      • DAC: 1 (12 bit)
      • SPI: 1
      • I2C: 1
      • CAN: 1

    Delivery components:

    • 1pc Arduino UNO R4 Minima, original

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Arduino development boards
    Warranty: 2 years
    Weight: 0.042 kg
    Type: AVR
    Logical levels: 5V
    I/O pins: 14
    PWM pins: 6
    ADC pins: 6
    Frequency: 16MHz
    Flash memory: 32kB
    SRAM memory: 2kB
    EEPROM memory: 1kB
    Connector with battery charger: No
    Microcontroller: ATmega328
    Converter: ATmega16U2
    Bluetooth: No
    WiFi: No

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:
    P Avatar of author raději RTFM 12/09/2023 14:39
    The UNO R4 Minima board's operating voltage is 5 V, making it hardware compatible with UNO form factor accessories with the same operating voltage. Shields designed for previous UNO revisions are therefore safe to use with this board but are not guaranteed to be software compatible due to the change of microcontroller.
    Reply
    TB Avatar of author Kompatibilita 17/07/2023 16:48
    Dobrý den, mám otázku na kompatibilitu této nové desky s displejem 3.5" 320x480 TFT displej, ILI9486, Arduino Uno shield Kód: LA141016. U desky Úno R3 se bojovalo s velikostí paměti a displej byl funkční. Dá se tato nová deska použít s tímto displejem ? Bude plně funkční?
    Reply
    PK Avatar of author 17/07/2023 18:32
    Myslím že ne, aniž bych zkoumal datasheety obou, tak myslím že staré UNO mělo 5V logiku, vstupy, výstupy, nové UNO má logiku 3,3V Ale stačí když se podíváte na datasheet toho displeje, který je k dispozici také na těchto stránkách a uvidíte
