ASAIR Air temperature and humidity sensor DHT22, module
Code: LA131011
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Related products
Product detailed description

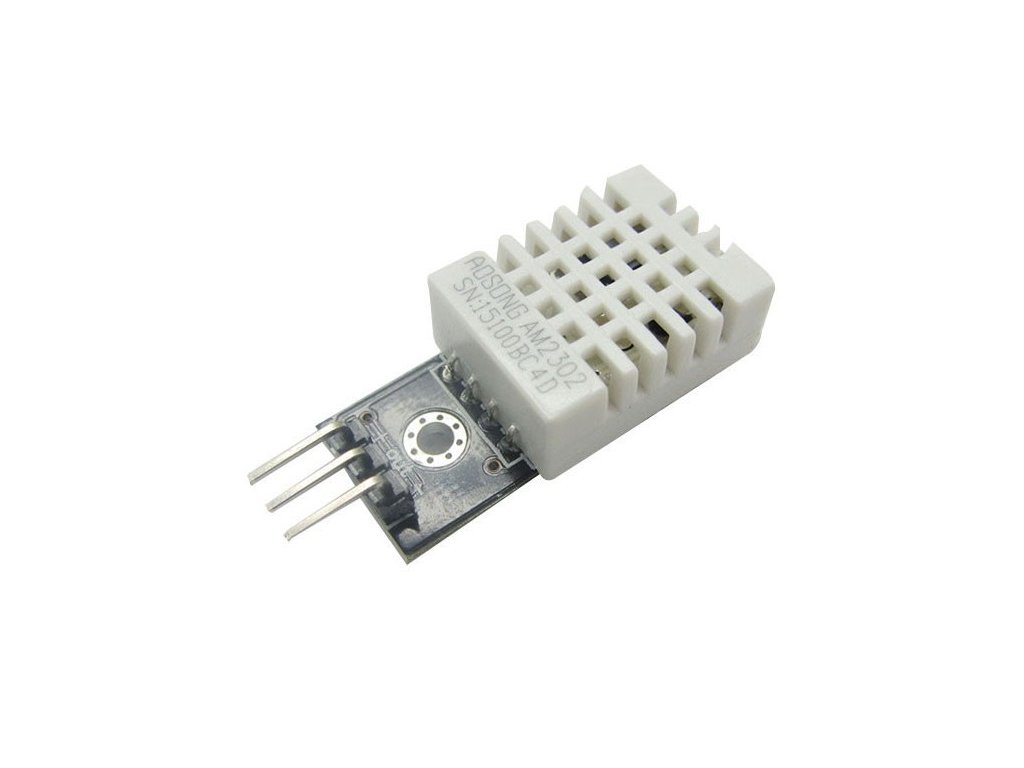

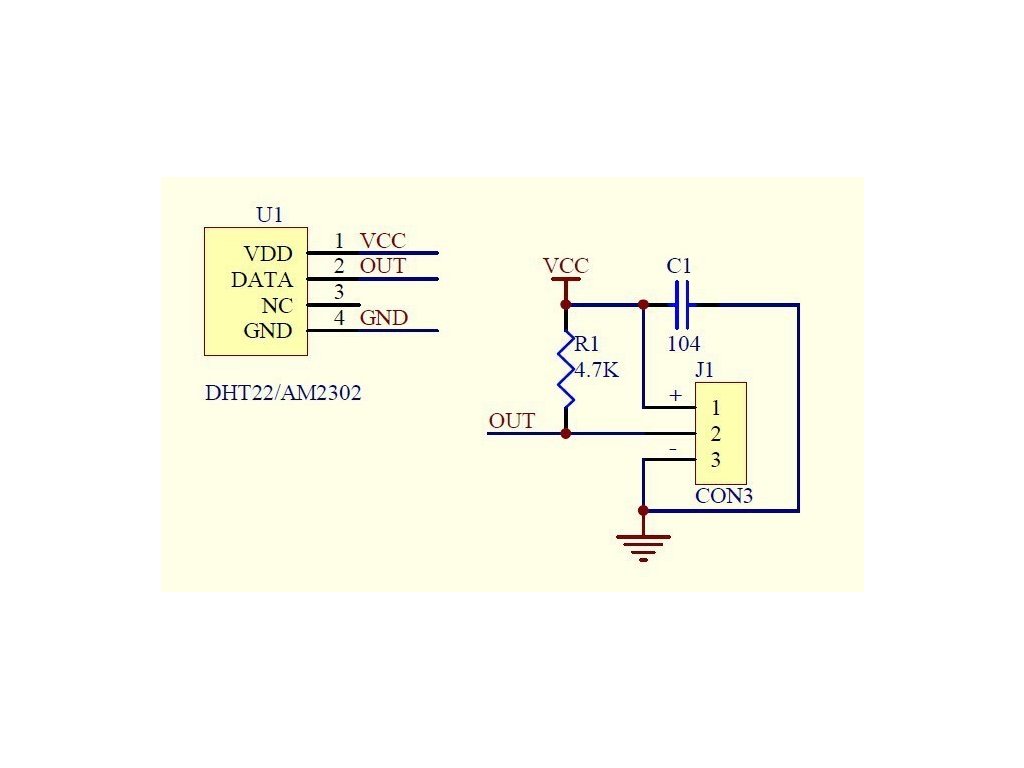

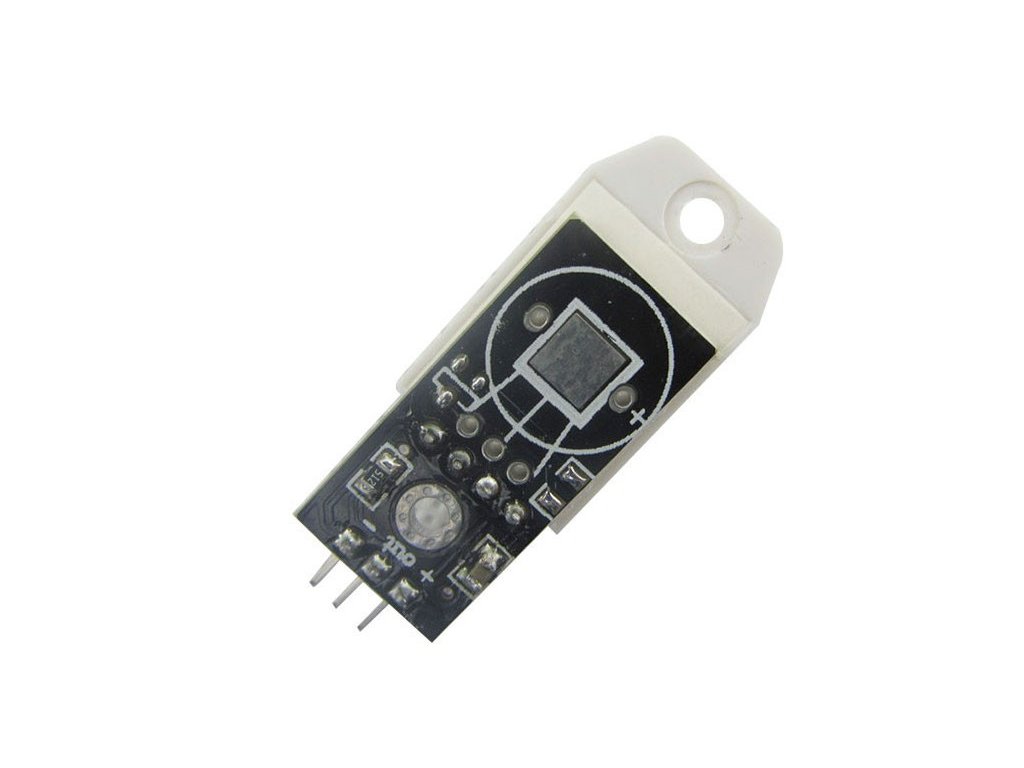

The DHT22 thermometer and hygrometer is an easy-to-use module that contains everything you need in its housing. So you only need to connect it with three wires. The module already has a pullup resistor and capacitor in it, just connect it to Arduino.
Specifications:
- Power supply: 3.3-5.5VDC
- Resolution: 16
- Humidity measurement range: 0-100% RH
- Temperature measurement range: -40 to +80?
- Humidity measurement accuracy: 2.0% RH
- Temperature measurement accuracy: 0.5?
- Pins: VDD, DATA, GND
- Size: 26x16x10mm
Included in delivery:

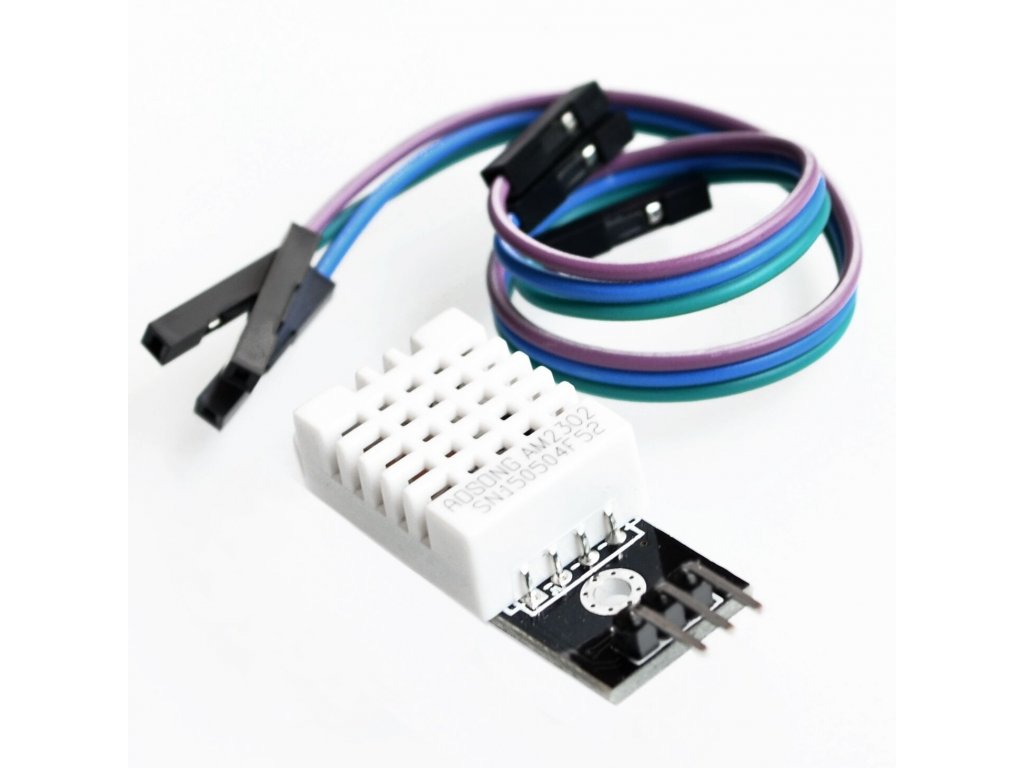

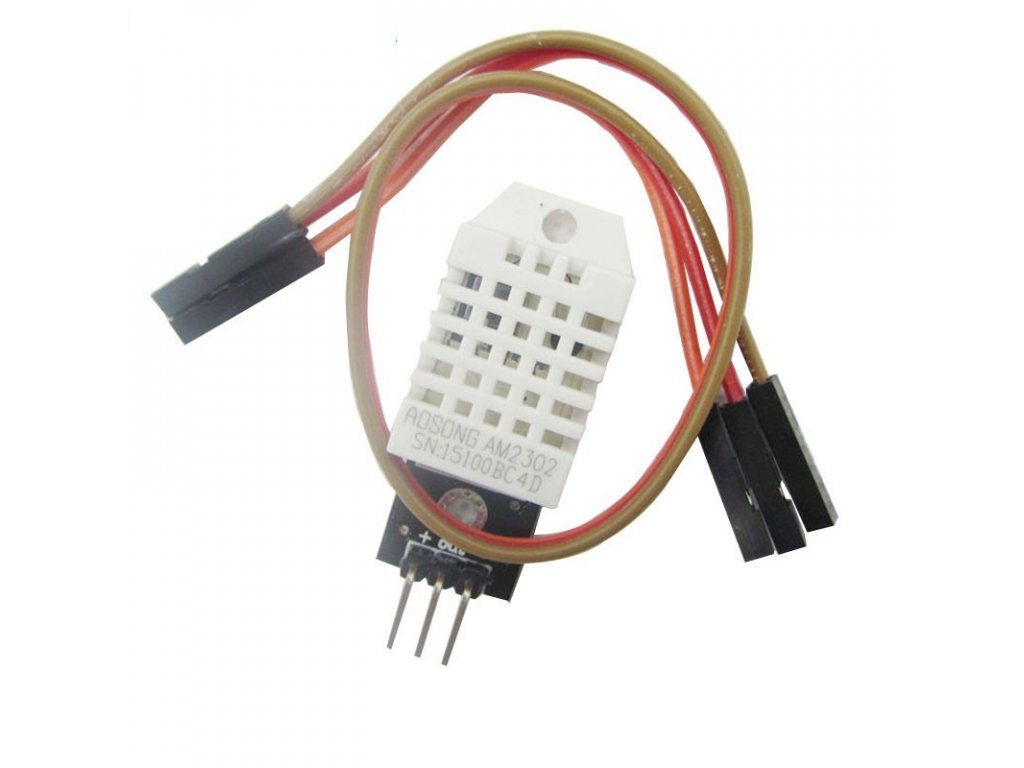

- 1pc Digital temperature and humidity sensor DHT22 AM2302
- 1pc Cable
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Temperature, humidity and pressure sensors |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.008 kg |
| Output: | Digital |
| Sensor type: | Temperature, Air humidity |
| The item has been sold out… | |
3,7
3 ratings
Add a rating
5
4
3
2
1
5
M
Michal
Michal
Spokojenost, i na 10m kabelu funguje překvapivě přesně!
1
TV
Tomáš Vojtěch
Tomáš Vojtěch
Mám 3 DHT22 čidla. Jedno ukazuje RH 90 %, druhé 54 % a třetí 42 %. Výsledky měření teploty jsou o fous stabilnější, ale taky to lítá +-3 stupně. Výsledek: je to naprosto k ničemu.
5
M
Martin
Martin
Spokojenost, dostatečně přesný. Zkoušel jsem i na 3,5m dlouhém kablíku bez stínění a finguje bezvadně.
