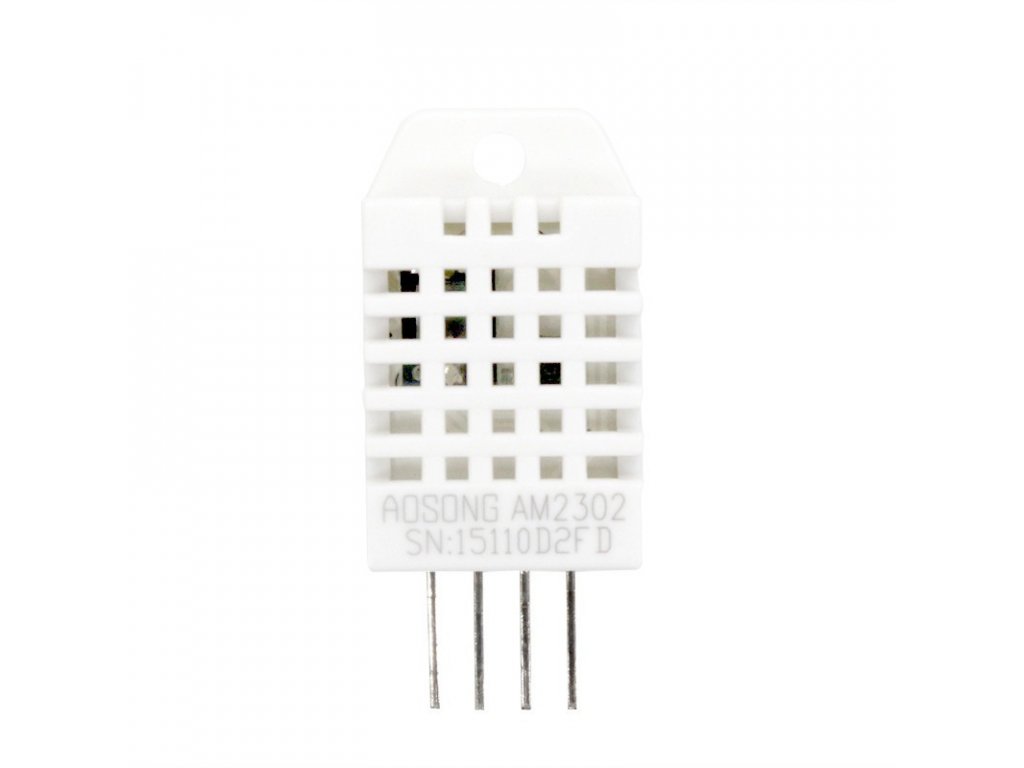

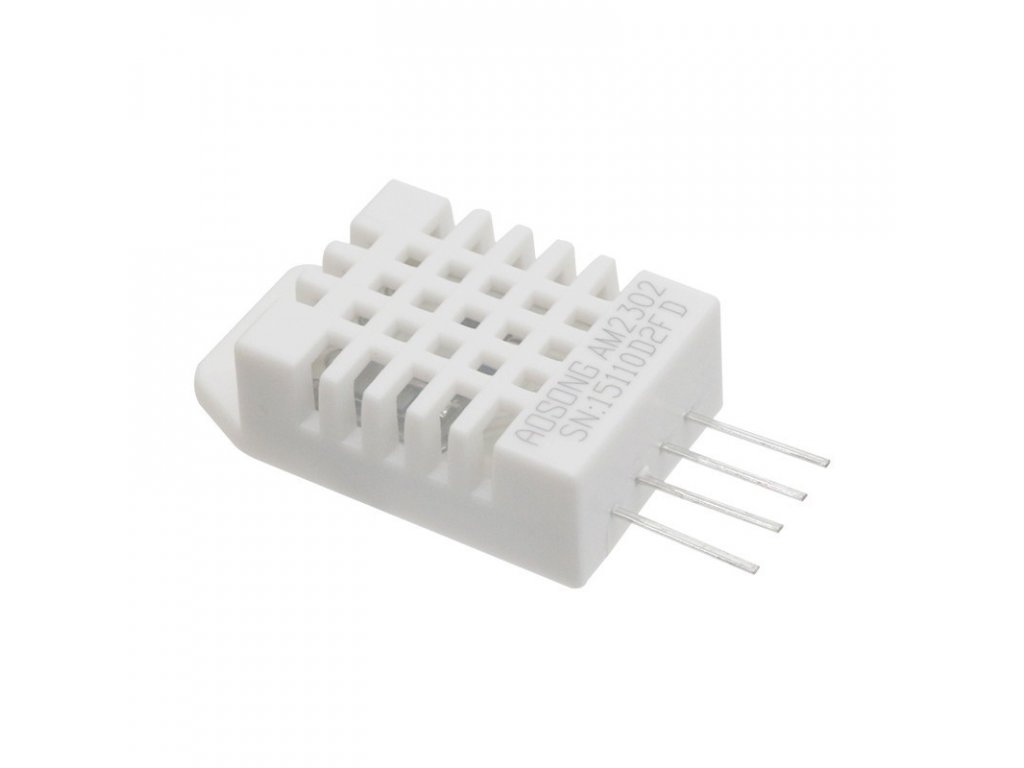

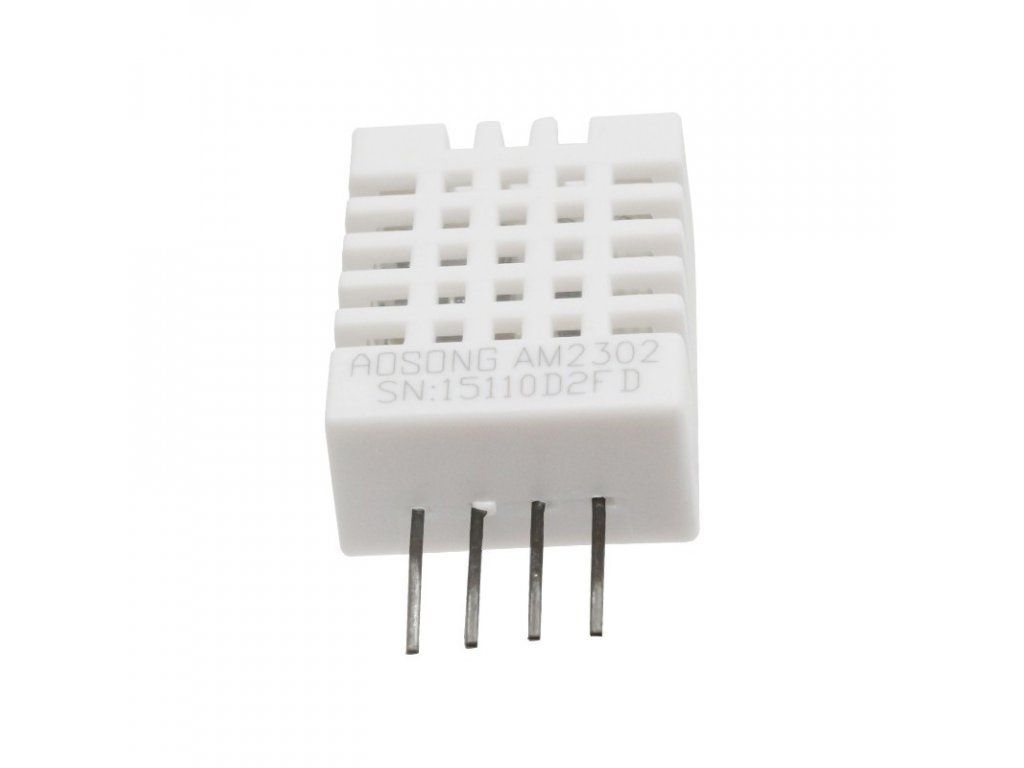

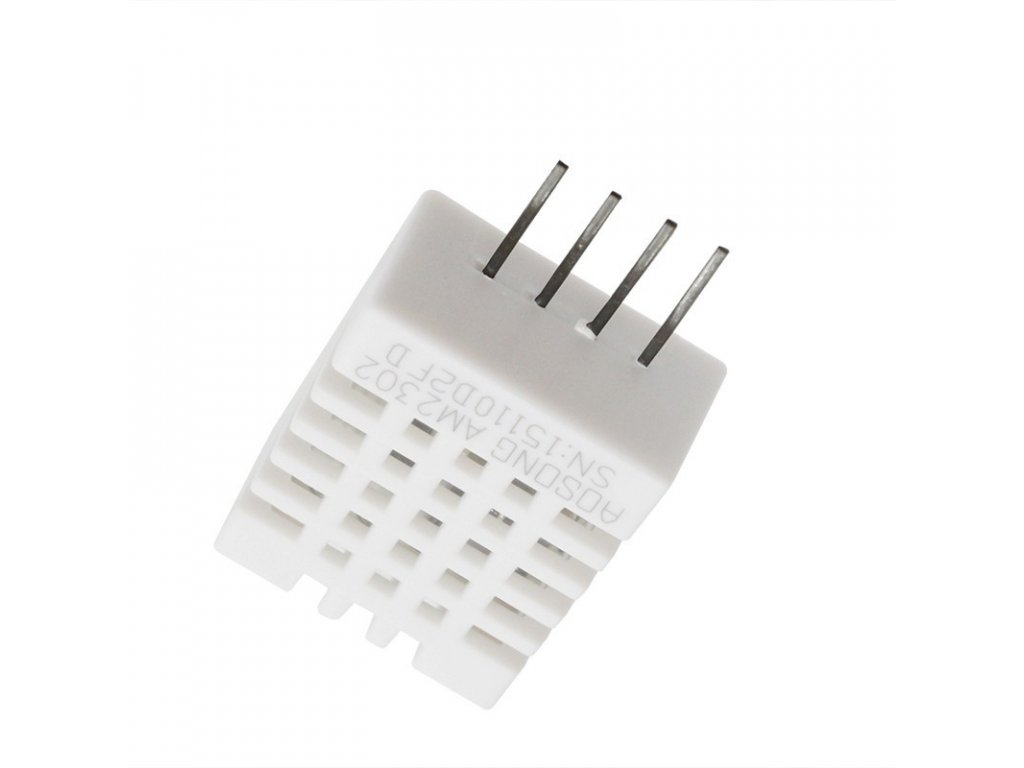

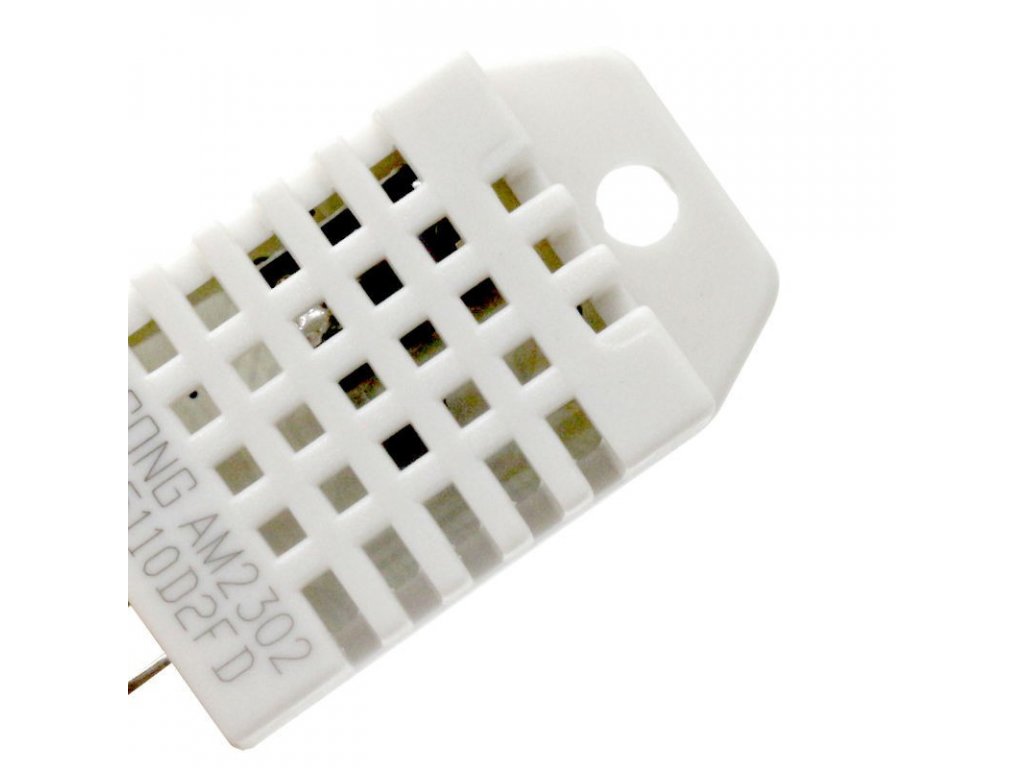

    ASAIR temperature and air humidity sensor DHT22

    Code: LA131032
    2 ratings
    Brand: ASAIR
    Arduino senzor teploty a vlhkosti vzduchu DHT22
    €6,30 €5,21 excl. VAT
    In stock (22 pcs)
    Delivery to:
    15/01/2025

    Sensor combining temperature measurement from -40 to 80°C and humidity up to 100% RH on the DHT22 chip

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    foto 3
    Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
    Vyřazeno
    €2,39 excl. VAT
    €2,89

    Ai-Thinker ESP32-S module with an ESP32 chip that allows it to communicate wirelessly via WiFi and Bluetooth.

    LA100065

    Product detailed description

    The DHT22 thermometer and hygrometer is easy to use, calibrated directly from the factory.

    It communicates via 1-wire protocol, so only one wire is needed to read data from the sensor, the other two wires are power wires.

    Specifications:

    • Power supply: 3.3-5.5VDC
    • Resolution: 16
    • Humidity measurement range: 0-100% RH
    • Temperature measurement range: -40 to +80?
    • Humidity measurement accuracy: 2.0% RH
    • Temperature measurement accuracy: 0.5?
    • Pins: VDD, DATA, GND
    • Size: 25x15x8mm

    Included in delivery:

    • 1pc ASAIR air temperature and humidity sensor DHT22 AM2302

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Temperature, humidity and pressure sensors
    Warranty: 2 years
    Weight: 0.003 kg
    Output: Digital
    Sensor type: Temperature, Air humidity
    Hbbac672ee0024798ac344a753fbb5061R
    LaskaKit Set of knife fuses 50 pcs
    In stock (7 pcs)
    €3,23 excl. VAT
    €3,91

    LaskaKit Set of knife fuses 50 pcs

    LA180034
    O1CN01qa9XLn2HhPRNC2HzQ !!252659182 2
    LaskaKit Set of SMD capacitors 0603, 73 values 100 pcs
    In stock (2 pcs)
    €148,16 excl. VAT
    €179,27

    LaskaKit Set of SMD capacitors 0603, 73 values 100 pcs

    LA180053A
    letadlo 1
    OMG Robotics: Kit for soldering Airplane
    In stock (20 pcs)
    €6,52 excl. VAT
    €7,89

    Interested in learning how to solder and how electronic components work? Our great soldering kit is perfect for you! Includes a model of an aircraft whose LED lights flash just...

    LA13079
    Show all alternative products
    5,0 2 ratings
    5
    2x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:
    5
    JB Avatar of author | 16/08/2023
    Naprostá spokojenost.
    5
    PW Avatar of author | 14/04/2020
    o moc přesnější než DHT11
    Do not fill out this field:
    FP Avatar of author přesnost 11/01/2024 18:17
    Datových listů je k dispozici víc variant. V některých je přesnost 2%, jinde 5%. Podle mého srovnání s kalibrovaným měřidlem bych řekl spíš 6%. Pro přesnější měření jsou k dispozici jiná, dražší čidla. Jinak, za ty peníze do amatérské meteostanice je to jednoduché a dobré čidlo.
    Reply
    Z Avatar of author dotraz 11/08/2023 14:00
    Zajimalo by mě jak je to s přesností těchto čidel. Mám 7 kusů a na teplotě je rozdíl až 2 stupně a na vlhkosti rozdíl až 20.
    Reply
    MF Avatar of author dotraz 14/08/2023 13:23
    Dobrý den, jak je uvedeno v datasheetu https://www.laskakit.cz/user/related_files/am2302_datasheet.pdf, tak přesnost měření teploty je ±1℃ max., typicky 0,5±℃. Přesnost měření vlhkosti je typicky ±2%RH.
