Arduino sensor shield V4.0

Product detailed description

Excellent sensor shield V4.0

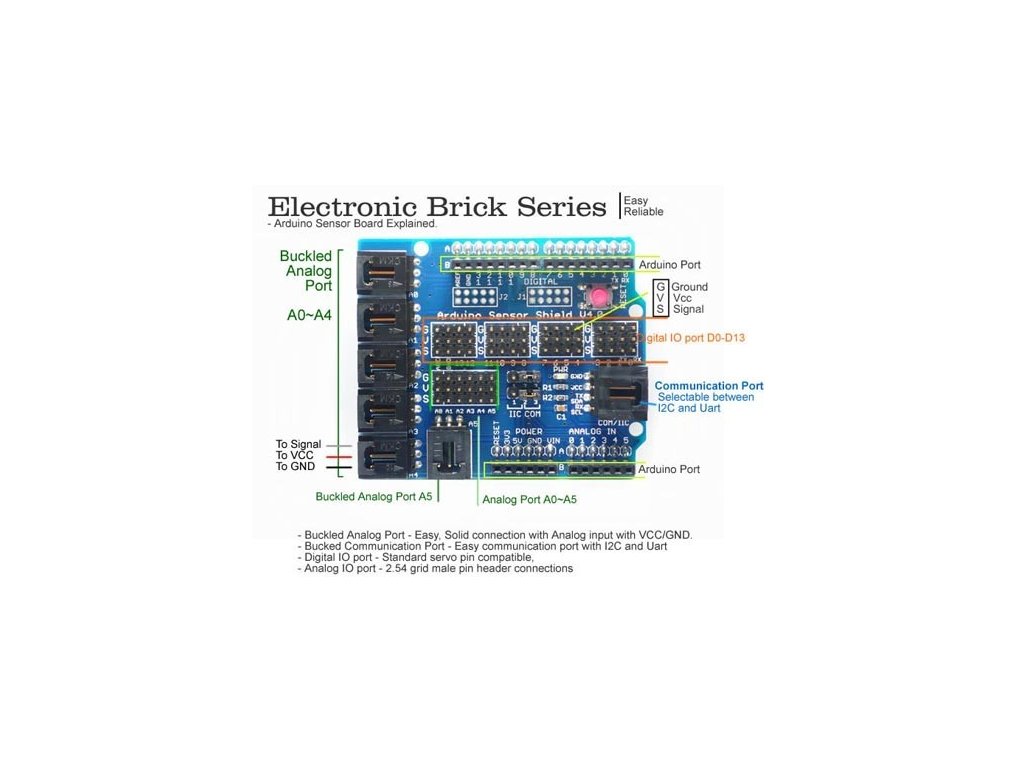

Excellent Sensor Shield for Arduino UNO and Arduino Mega. Sensor Shield allows connection of various modules such as sensors, servos, relays, pushbuttons, potentiometers. It supports all kinds of interfaces and is fully compatible with Arduino Mega and Arduino UNO. Contains all Arduino UNO analog and digital pins

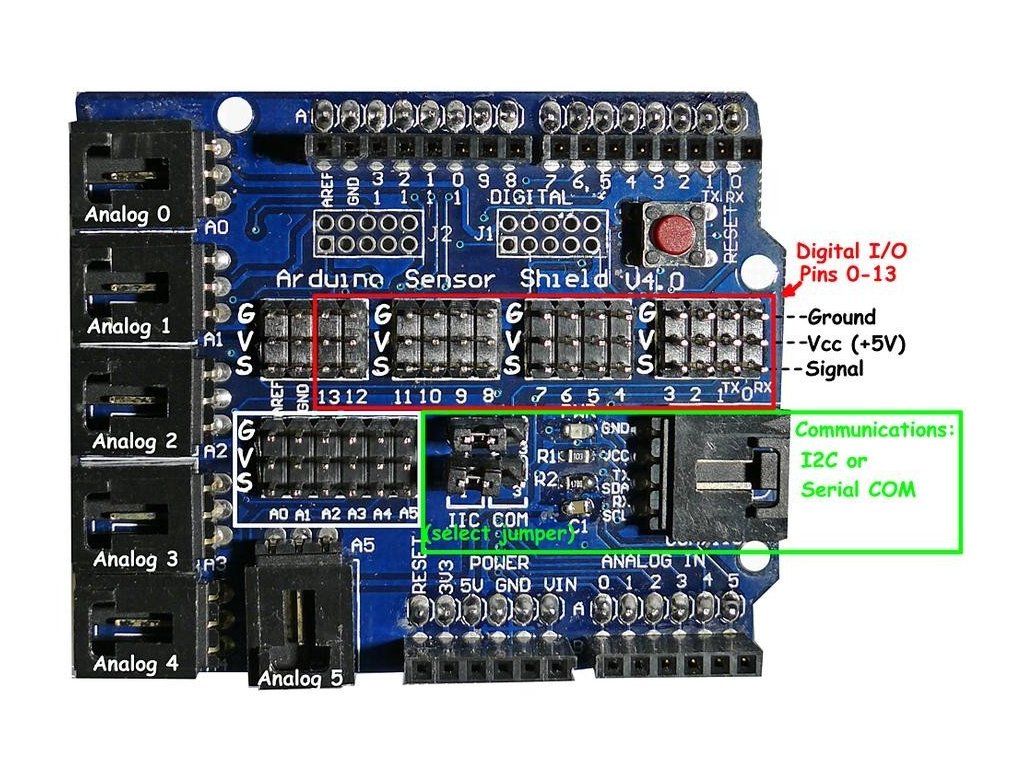

Specifications:

• Power from the development board
• Analog ports: 6 inputs with VCC/GND.
• Digital ports: 13 ports for digital modules or servos
• Communication port: selectable between I2C and UART
• Each connector 3 pins VCC, GND, OUTPUT
• Input connectors:MOLEX SL 70066-0387 (50-57-9403) - can be replaced by 3pin Dupont connector
• Reset button
• PWR LEDs
• Size: 70x58mm

Included in delivery:

• 1pc Excellent Sensor Shield V4.0

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• After mounting the shield, please check that the pins from the bottom side do not touch the component housings on the bottom plate! This could cause a short circuit and destroy the shield or even the motherboard. Goods damaged in this way are not covered by the warranty!
