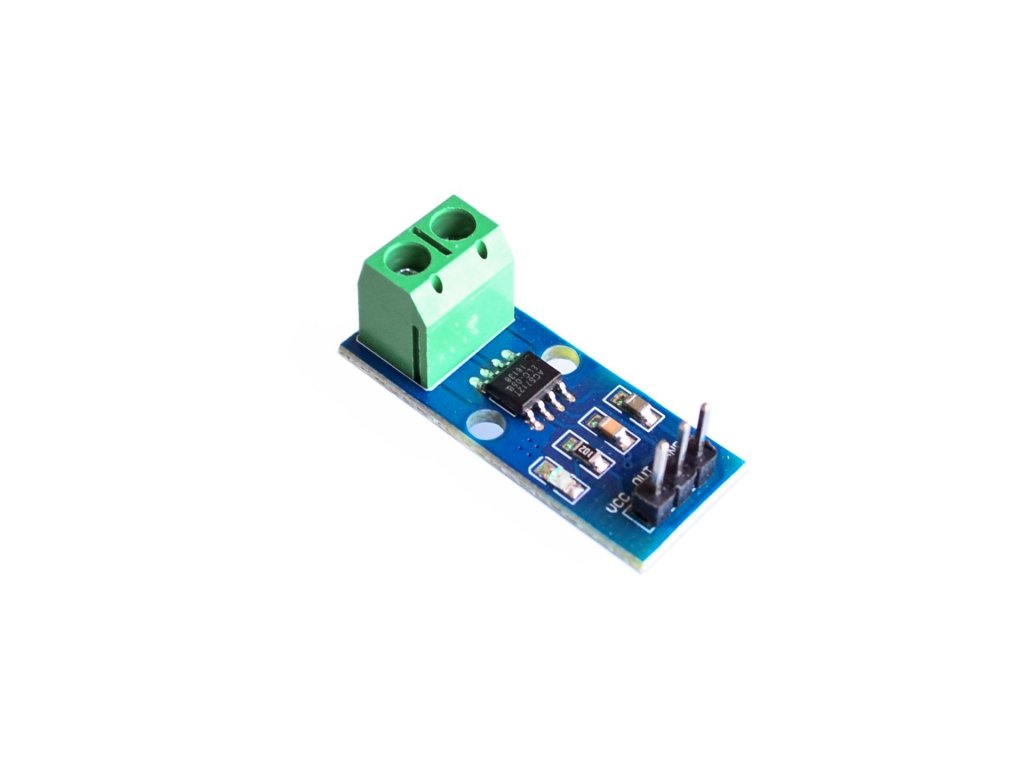

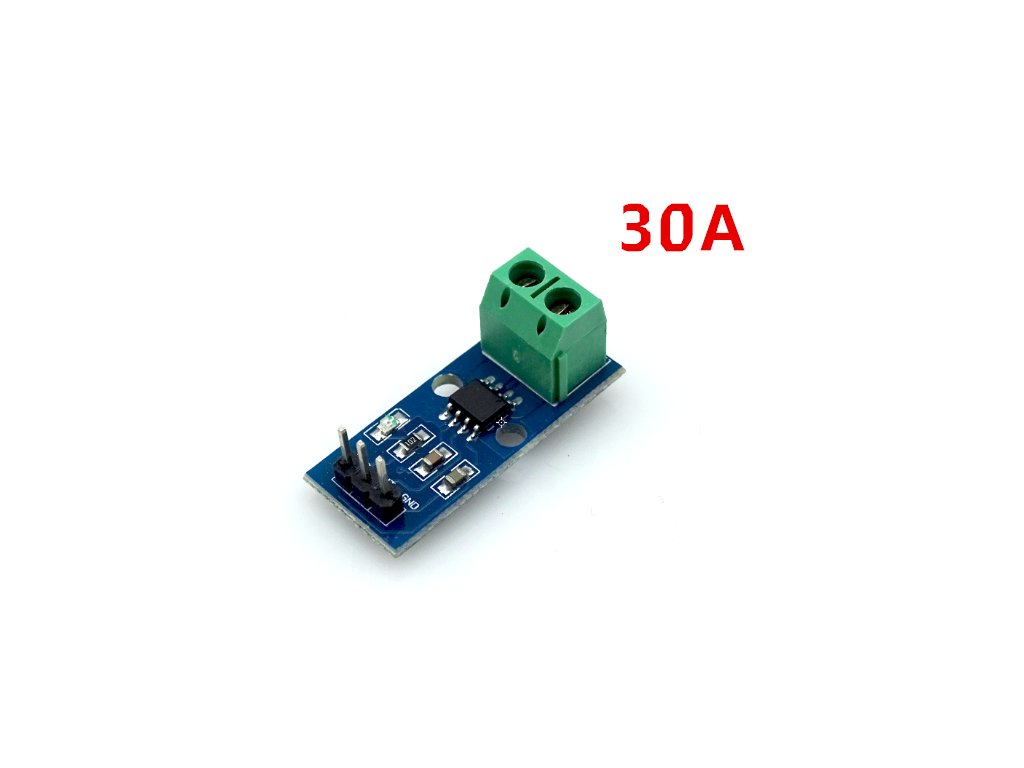

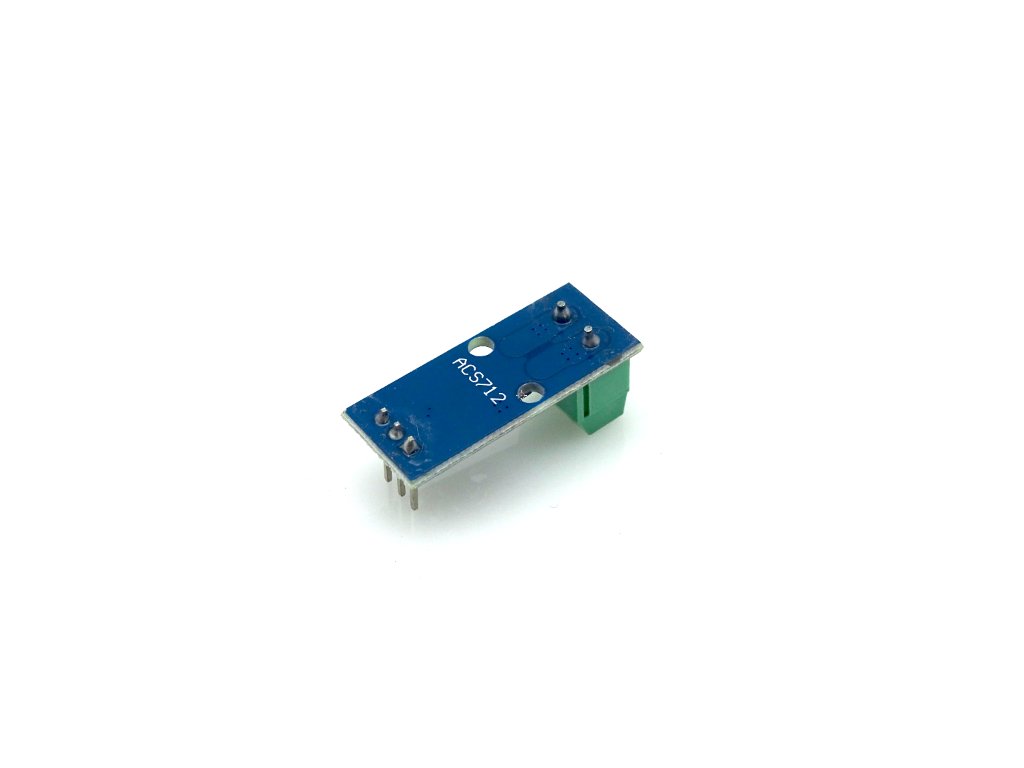

Current sensor 30A ACS712
Code: LA131014C
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Related products
Product detailed description
This module works on the principle of Hall effect and allows you to measure the current for your application.
Specifications:
- Chip: ACS712
- Supply voltage: 5V
- Current measurement range: ± 30A.
- Output value at I= 0A: Vcc/2
- Sensitivity: 66-185mV/A
- Measurement error (@ 25°C): < 1.5%
- Internal sensor resistance: 1.2mΩ
- Rise time: 5us
- Insulation voltage: 2.1kVRMS
- Bandwidth: 80kHz
- Operating temperature: -40°C - +85°C.
- Size: 31x13mm.
Please always check the correct wiring according to the descriptions on the board!
Included in delivery:
- 1pc Current sensor 30A ACS712
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Current sensors and voltage measurement |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.005 kg |
| Output: | Analog |
| Sensor type: | Current |
4,5
2 ratings
Add a rating
5
4
3
2
1
5
ĽS
Ľudmila Stopkova
Ľudmila Stopkova
ok
4
FC
František Cesnek
František Cesnek
Funkčnosť bez problémov ale svorkovnička je príliš malá a vodič dimenzovaný na 30A sa tam jednoducho nezmestí.
